81EA-30054GG
81EA-33052GG
1
1
2
2
3
4
4
4-1
5
6
7
8
4-2
4-3

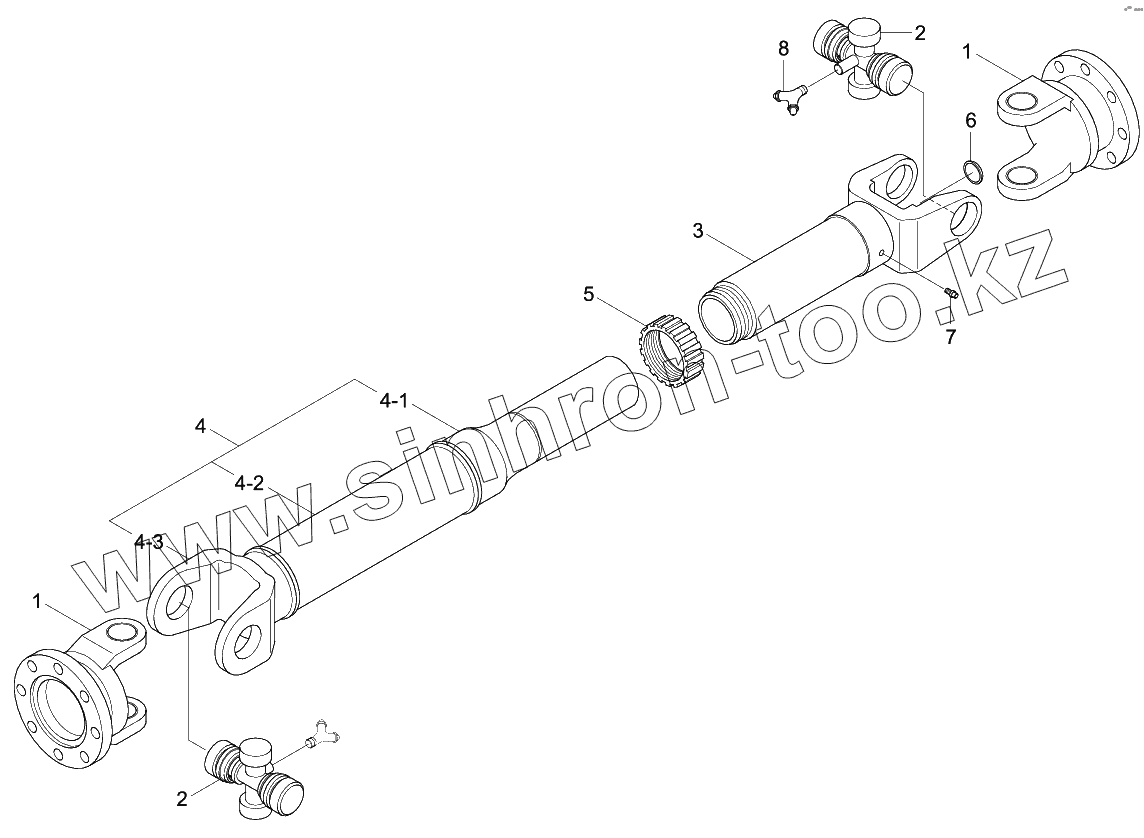

Позиция на иллюстрации
Заводской номер детали
Название детали
81EA-30054GG
81EA-30054GG
Propeller Shaft
81EA-33052GG
81EA-33052GG
Propeller Shaft
1
XKCP-00043
Yoke-Flange
2
XKCP-00014
J/Brg Assy
3
XKCP-00044
Yoke-Sleeve
4
XKCP-00045
Shaft Assy
4
XKCP-00047
Shaft Assy
4-1
XKCP-00046
Shaft-Spline
5
XKCP-00020
Seal-Joint
6
XKCP-00021
Plug-Exp
7
XKCP-00022
Nipple-Grease
8
XKCP-00023
Nipple-Grease
4-2
XKCP-00018
Pipe
4-3
XKCP-00019
Yoke-Tube
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
