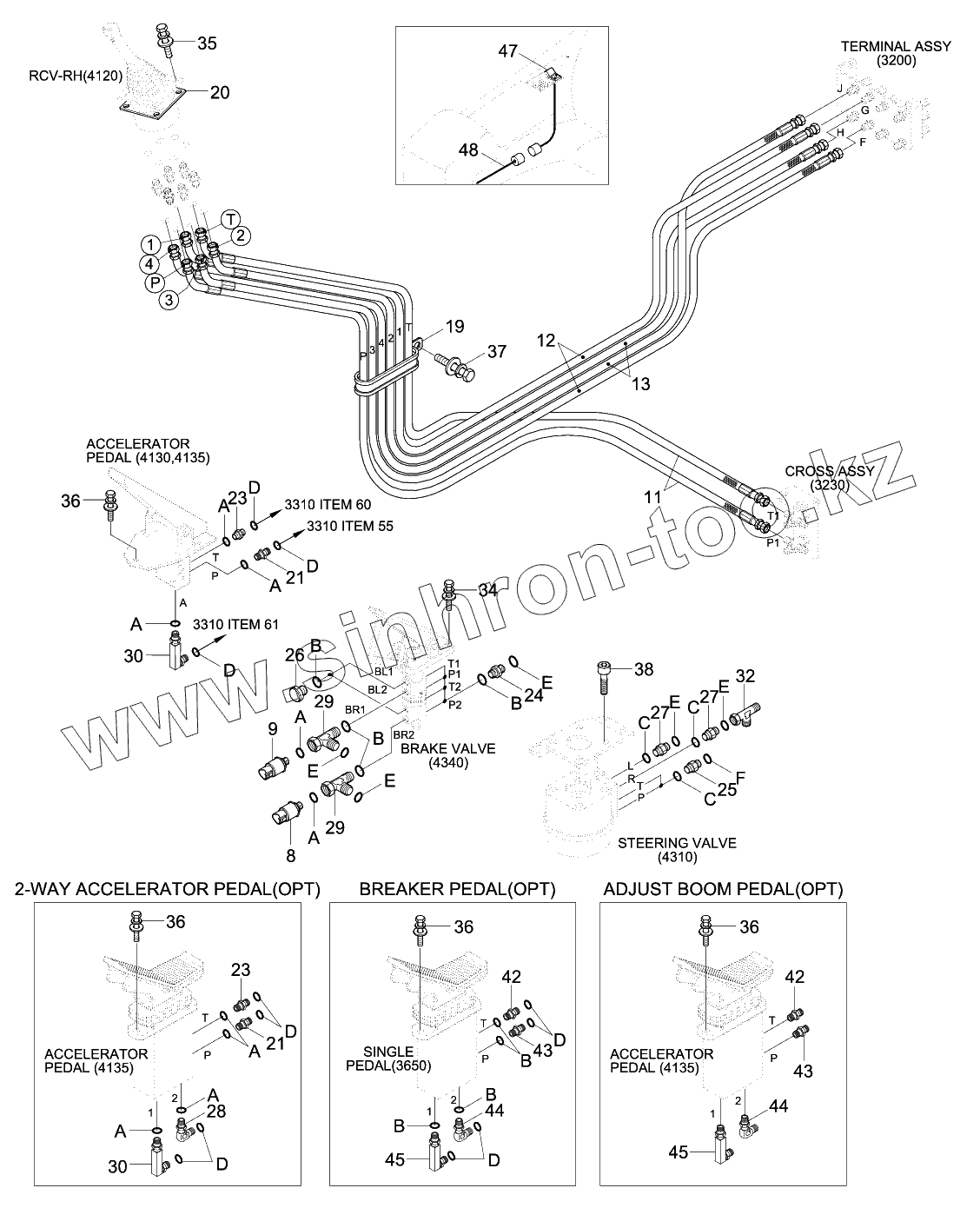

Каталог запасных частей к технике: Hyundai R180W-9S. PILOT HYD PIPING (BOTTOM 2)
11
12
13
19
20
21
21
23
23
24
25
26
27
27
28
29
29
30
30
32
34
35
36
36
36
36
36
37
38
42
42
43
43
44
44
45
45
47
48
8
8
8
9
A
A
A
A
A
A
A
A
B
B
B
B
B
B
C
C
C
D
D
D
D
D
D
D
E
E
E
E
E
F
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 11 | X410-042023 | Hose Assy-Orfs 0x45 | |
| 12 | X410-042032 | Hose Assy-Orfs 0x45 | |
| 13 | X410-042034 | Hose Assy-Orfs 0x45 | |
| 19 | 31E7-0312 | Clamp-Hose | |
| 20 | 31M6-51061 | SHIM | |
| 21 | 31N6-25060 | FILTER-LAST GUARD | |
| 23 | X500-110001 | CONNECTOR-ORFS | |
| 24 | X500-110002 | CONNECTOR-ORFS | |
| 25 | X500-310003 | Connector-Orfs | |
| 26 | P220-110103 | PLUG-HEX | |
| 27 | 31N5-30050 | Connector | |
| 28 | X520-110001 | ELBOW-90,ORFS | |
| 29 | 31Q6-30040 | Tee-B/Type,Orfs | |
| 30 | 31N6-25110 | ELBOW-90,LONG | |
| 32 | 31Q4-23160 | Tee-Test | |
| 34 | S035-083026 | BOLT-W/WASHER | |
| 35 | S035-063046 | BOLT-W/WASHER | |
| 36 | S035-062026 | BOLT-W/WASHER | |
| 36 | S037-102526 | BOLT-W/WASHER | |
| 37 | S037-102042 | Bolt-W/Washer | |
| 38 | S109-100256 | BOLT-SOCKET | |
| 42 | X500-110001 | CONNECTOR-ORFS | |
| 43 | 31N6-25060 | FILTER-LAST GUARD | |
| 44 | X520-110001 | ELBOW-90,ORFS | |
| 45 | 31N6-25110 | ELBOW-90,LONG | |
| 47 | 21E6-30540 | Switch-Breaker | |
| 48 | 21NB-00200 | Harness-Ext | |
| 8 | 31Q4-40820 | SENSOR-PRESSURE | |
| 8 | 31N4-30160 | Switch-Pressure | |
| 8 | 31NA-30160 | SWITCH-PRESSURE | |
| 9 | 31Q4-40840 | Switch-Pressure | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S611-016001 | O-Ring | |
| D | S621-110001 | O-Ring | |
| E | S621-012001 | O-RING | |
| F | S621-014001 | O-RING |
