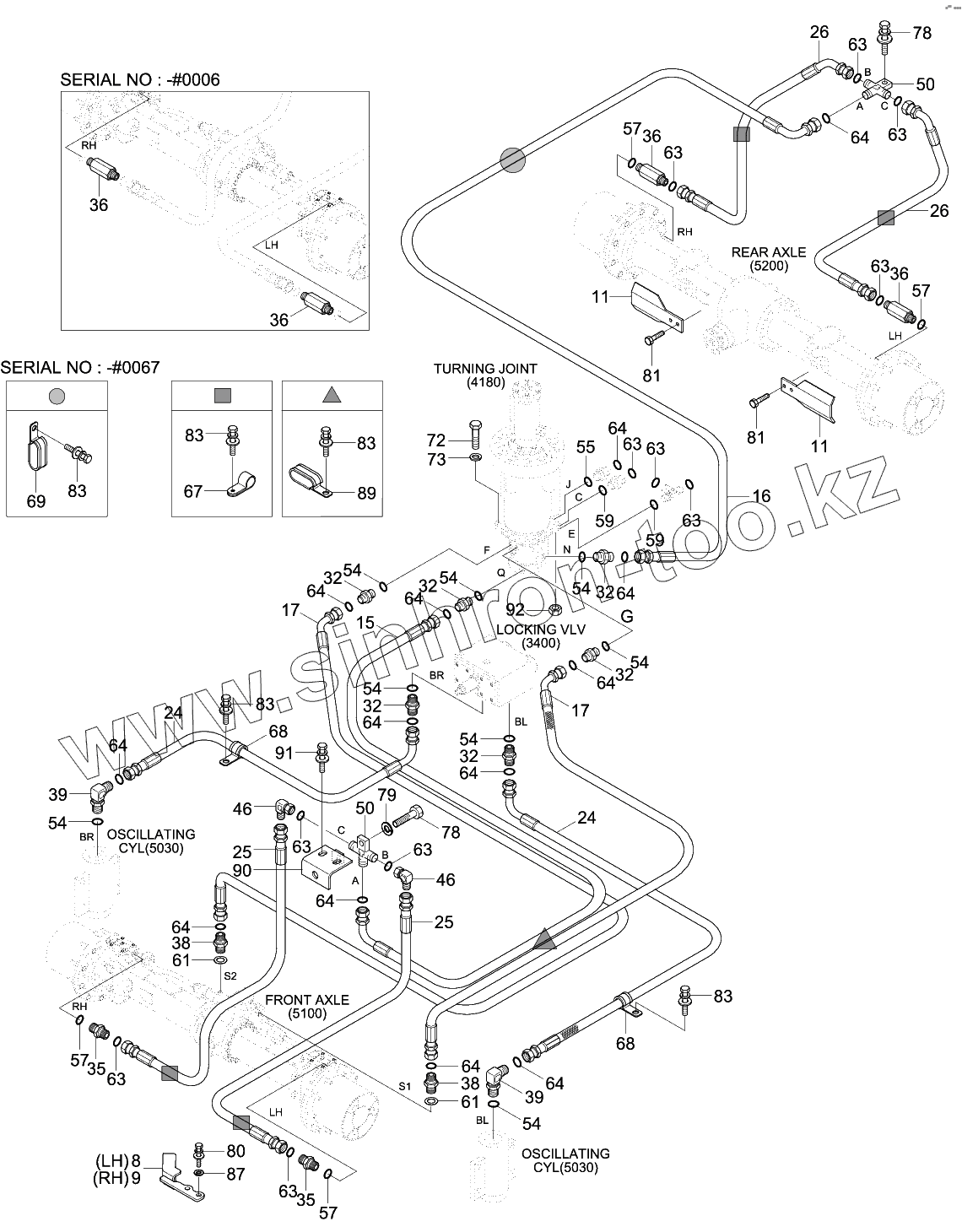

Каталог запасных частей к технике: Hyundai R180W-9S. LOWER HYD PIPING 2
8
9
11
11
15
15
16
17
17
24
24
24
24
24
25
25
26
26
32
32
32
32
32
32
35
35
36
36
36
36
36
38
38
39
39
46
46
50
50
54
54
54
54
54
54
54
54
55
57
57
57
57
61
61
63
63
63
63
63
63
63
63
63
63
63
64
64
64
64
64
64
64
64
64
64
64
64
64
67
68
68
69
72
73
78
78
80
81
81
83
83
83
83
83
87
89
89
90
91
92
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 8 | 31Q5-41060 | COVER WA-LH, FRONT | |
| 9 | 31Q5-41070 | COVER WA-RH, FRONT | |
| 11 | 31Q4-43030 | COVER WA-REAR | |
| 15 | P933-067026 | HOSE ASSY-ORFS 0X90 | |
| 15 | P933-067028 | Hose Assy-Orfs 0x90 | |
| 16 | P923-067022 | Hose Assy-Orfs 0x45 | |
| 17 | P923-066036 | Hose Assy-Orfs 0x45 | |
| 24 | P933-067018 | Hose Assy-Orfs 0x90 | |
| 24 | P933-067020 | Hose Assy-Orfs 0X90 | |
| 24 | P933-067019 | HOSE ASSY-ORFS 0X90 | |
| 24 | P933-067018 | Hose Assy-Orfs 0x90 | |
| 25 | P923-043024 | HOSE ASSY-ORFS 0X45 | |
| 26 | P923-043019 | HOSE ASSY-ORFS 0X45 | |
| 32 | X500-110002 | CONNECTOR-ORFS | |
| 35 | X500-210002 | Connector-Orfs | |
| 36 | 31N6-41170 | Connector-Long,Orfs | |
| 36 | 31N6-41170 | Connector-Long,Orfs | |
| 38 | X500-210006 | Connector-Orfs | |
| 39 | X520-110002 | ELBOW-90,ORFS | |
| 46 | X850-515100 | ELBOW-90 SWIVEL,ORFS | |
| 50 | 31N5-41030 | Tee-Mountingg | |
| 54 | S631-014004 | O-RING | |
| 55 | S631-018004 | O-RING | |
| 57 | Y161-014001 | O-RING | |
| 61 | P392-180000 | Washer-Copper | |
| 63 | S621-011001 | O-RING | |
| 64 | S621-012001 | O-RING | |
| 67 | 31L7-10190 | CLAMP-TUBE | |
| 68 | 31L7-10200 | CLAMP-TUBE | |
| 69 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 72 | S017-120506 | BOLT-HEX | |
| 73 | S411-120006 | WASHER-SPRING | |
| 78 | S037-103526 | BOLT-W/WASHER | |
| 80 | S019-18050D | BOLT-HEX | |
| 81 | S017-120306 | Bolt-Hex | |
| 83 | S037-102026 | BOLT-W/WASHER | |
| 87 | S441-180006 | WASHER-HARDENED | |
| 89 | 31L7-10270 | CLAMP-TUBE | |
| 89 | 31L7-10360 | CLAMP | |
| 90 | 31Q5-70360 | BRACKET WA | |
| 91 | S037-102526 | BOLT-W/WASHER | |
| 92 | S207-12100B | Nut-Hex |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
