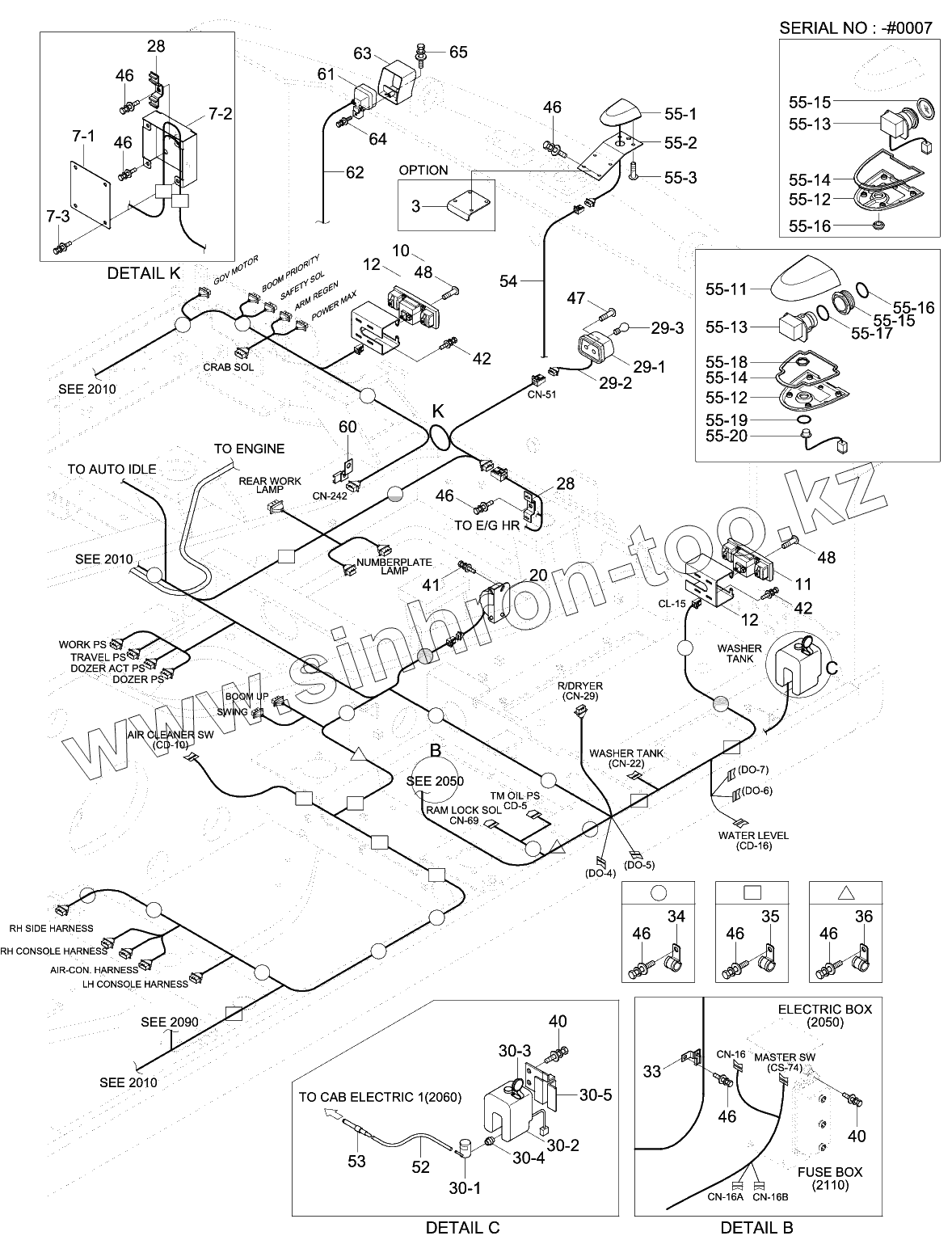

Каталог запасных частей к технике: Hyundai R180W-9S. LH ELECTRIC
10
11
12
12
20
28
28
28
29
29-1
29-2
29-3
3
30
30-1
30-2
30-3
30-4
30-5
33
34
35
36
40
40
41
42
42
42
46
46
46
46
46
46
46
46
46
46
46
47
48
48
52
53
54
55
55
55-1
55-1
55-1
55-3
60
61
62
63
64
65
7
7-1
7-2
7-3
55-11
55-11
55-12
55-12
55-12
55-13
55-13
55-13
55-14
55-14
55-14
55-15
55-15
55-15
55-16
55-16
55-16
55-17
55-18
55-19
55-2
55-20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 21Q4-60212 | Combi Lamp-Rear,Rh | |
| 11 | 21Q4-60202 | Combi Lamp-Rear,Lh | |
| 12 | 21Q4-30201 | Bracket-Combi Lamp | |
| 20 | 21N4-46800 | BUZZER-BACK | |
| 28 | 21N4-01130 | PLATE-CLIP | |
| 28 | 21N4-01130 | PLATE-CLIP | |
| 29 | 21LB-34250 | Lamp Sub-Number Plate | |
| 29-1 | 21EK-10160 | Lamp-Number Plate | |
| 29-2 | 21LB-34260 | Harness-Ext | |
| 29-3 | 21EK-10260 | Bulb-10w | |
| 3 | 21Q5-60150 | Plate | |
| 30 | 21EG-30630 | WASHER TANK ASSY | |
| 30-1 | 21EG-10130 | PUMP-MOTOR | |
| 30-2 | 21EG-10140 | TANK | |
| 30-3 | 24L3-30660 | CAP | |
| 30-4 | 24L3-30670 | RUBBER-BUSHING | |
| 30-5 | 24L3-30710 | PLATE | |
| 33 | 25D1-10640 | CLIP ASSY | |
| 34 | 31L7-10190 | CLAMP-TUBE | |
| 35 | 31L7-10200 | CLAMP-TUBE | |
| 36 | 31L7-10210 | CLAMP-TUBE INS | |
| 40 | S035-062026 | BOLT-W/WASHER | |
| 41 | S035-081526 | BOLT-W/WASHER | |
| 42 | S035-082026 | BOLT-W/WASHER | |
| 42 | S035-082026 | BOLT-W/WASHER | |
| 46 | S037-102026 | BOLT-W/WASHER | |
| 46 | S037-102026 | BOLT-W/WASHER | |
| 47 | S131-051546 | SCREW-W/WASHER | |
| 48 | S131-053046 | Screw-W/Washer | |
| 52 | 21EM-30581 | HOSE-RUBBER | |
| 53 | 21EM-30570 | CONNECTOR-TUBE | |
| 54 | 21Q8-11300 | Harness-Camera | |
| 55 | 21Q5-60101 | Camera Assy-Rear View | |
| 55 | 21Q5-60102 | CAMERA ASSY-REAR VIEW | |
| 55-1 | 21AB-30031 | Camera Assy-Rear | |
| 55-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 55-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| 55-3 | S141-050102 | SCREW-FLAT HD | |
| 60 | 25D1-10650 | CLIP ASSY | |
| 61 | 21QB-60700 | WORK LAMP ASSY | |
| 62 | 21Q8-11140 | HARNESS-EXTENSION | |
| 63 | 21Q4-47020 | GUARD-BACK LIGHT | |
| 64 | S037-102026 | BOLT-W/WASHER | |
| 65 | S037-101526 | BOLT-W/WASHER | |
| 7 | 21Q4-91040 | COVER ASSY | |
| 7-1 | 21Q4-91070 | COVER | |
| 7-2 | 21Q4-91050 | PLATE | |
| 7-3 | S035-081526 | BOLT-W/WASHER | |
| 55-11 | 21AB-40100 | Dome-Housing | |
| 55-11 | 21AB-30110 | COVER-TOP | |
| 55-12 | 21AB-40200 | Base-Housing | |
| 55-12 | 21AB-30120 | COVER-BOTTOM | |
| 55-13 | 21AB-40300 | Camera & Pcb Assy | |
| 55-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| 55-14 | 21AB-40400 | Seal | |
| 55-14 | 21AB-30140 | GASKET | |
| 55-15 | 21AB-40500 | Window | |
| 55-15 | 21AB-30150 | LENS-WINDOW | |
| 55-16 | 21AB-40600 | Grommet | |
| 55-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| 55-17 | 21AB-30170 | O-RING-CAM | |
| 55-18 | 21AB-30180 | NUT-VOLUME | |
| 55-19 | 21AB-30190 | O-RING | |
| 55-2 | 21Q5-60110 | Bracket-Camera | |
| 55-20 | 21AB-30210 | CABLE ASSY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
