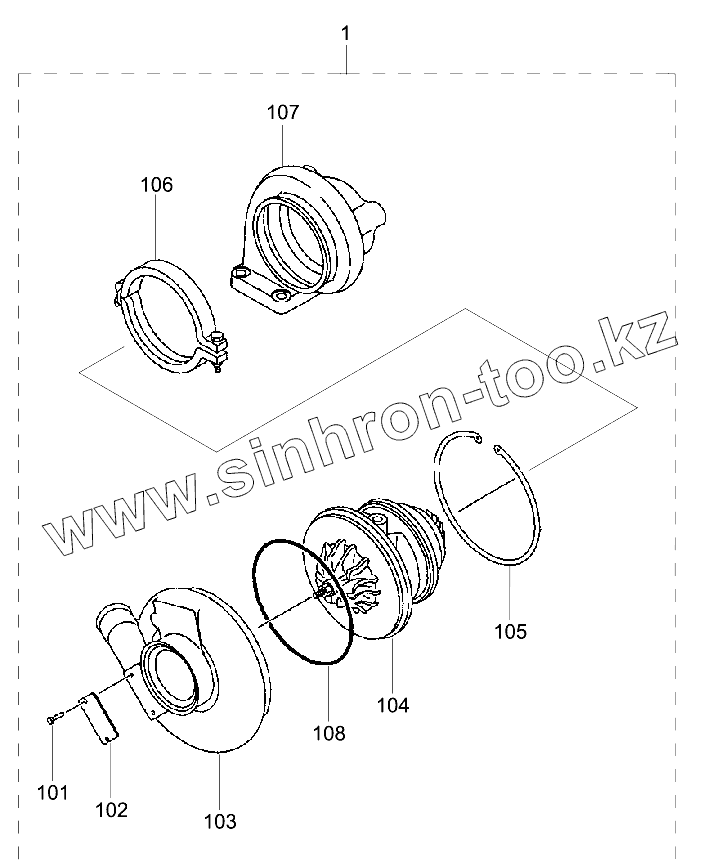

Каталог запасных частей к технике: Hyundai R180LC-9S. TURBOCHARGER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING ENGINE CONTROL SYSTEM AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT AIR CONDITIONER UNIT (SEMI AUTO) HEATER UNIT (SEMI AUTO) RH ELECTRIC LH ELECTRIC BOOM ELECTRIC (STD) BOOM ELECTRIC (ADJUST BOOM) ENGINE ELECTRIC (CLUSTER TYPE 1) ENGINE ELECTRIC (CLUSTER TYPE 2) ELECTRIC BOX CAB ELECTRIC 1 CAB ELECTRIC 2 CABIN ROOM ELECTRIC CLUSTER (TYPE 1) CLUSTER (TYPE 2) BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING 1 (ADJUST BOOM) UPPER HYD PIPING 2 (ADJUST BOOM) UPPER HYD PIPING (TRAVEL) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (BOTTOM 1) PILOT HYD PIPING (BOTTOM 2) PILOT HYD PIPING (BASE 1, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 2, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 3, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 1, CLUSTER TYPE 2) PILOT HYD PIPING (BASE 2, CLUSTER TYPE 2) PILOT HYD PIPING (BASE 3, CLUSTER TYPE 2) UPPER HYD PIPING (R180LCD-9S) UPPER HYD PIPING 1 (R180LCD-9S, ADJ BOOM) UPPER HYD PIPING 2 (R180LCD-9S, ADJ BOOM) TRAVEL HYD PIPING (R180LC-9S) TRAVEL HYD PIPING 1 (R180LCD-9S) TRAVEL HYD PIPING 2 (R180LCD-9S) BOOM HYD PIPING (5.1M, STD) BOOM HYD PIPING (ADJUST BOOM) BOOM GREASE LUB SYSTEM (5.1M, STD) BOOM GREASE LUB SYSTEM (ADJUST BOOM) BOOM SAFETY LOCK SYSTEM QUICK CLAMP HYD PIPING ARM HYD PIPING ARM HYD PIPING (3.1M, LONG) ARM SAFETY LOCK SYSTEM ATTACH PIPING KIT (S & D/ACTING) SINGLE ACTING MAIN PIPING KIT S/ACTING MAIN PIPING KIT (ADJUST BOOM) DOUBLE ACTING MAIN PIPING KIT 1 DOUBLE ACTING MAIN PIPING KIT 2 DOUBLE ACTING MAIN PIPING 1 (ADJUST BOOM) DOUBLE ACTING MAIN PIPING 2 (ADJUST BOOM) MAIN PUMP REGULATOR GEAR PUMP MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR SWING REDUCTION GEAR REMOTE CONTROL LEVER DOZER CONTROL LEVER REMOTE CONTROL PEDAL TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2) TRAVEL REDUCTION GEAR TURNING JOINT TURNING JOINT (R180LCD-9S) BOOM CYLINDER BOOM CYLINDER (ADJUST BOOM) ARM CYLINDER BUCKET CYLINDER DOZER BLADE CYLINDER SOLENOID VALVE ADJUST CYLINDER SINGLE PEDAL (DOUBLE ACTING) QUICK CLAMP (HOOK TYPE 1) QUICK CLAMP (CLOSE TYPE 1) QUICK CLAMP (HOOK TYPE 2) QUICK CLAMP (CLOSE TYPE 2) QUICK CLAMP CYLINDER UNDERCARRIAGE MOUNTING LOWER ROLLER UPPER ROLLER ADJUST COMPONENT IDLER TRACK CHAIN CAB MOUNTING CAB ASSY (1/4) CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) SEAT BASE ASSY SEAT (STD) SEAT (SUSPENSION, HEATED) STORAGE BOX ASSY BOTTOM PLATE MOUNTING COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & COVER SWING RING GREASE LUB SYSTEM DOZER BLADE (R18LCD-9S) BOOM MOUNTING (5.1M, STD) BOOM MOUNTING (ADJUST BOOM) BOOM (5.1M, STD) ADJUST BOOM ARM BUCKET CONTROL GROUP BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (4 TEETH) BUCKET (6 TEETH) BUCKET (0.69M3 SAE HEAPED, HEAVY DUTY) BUCKET (0.75M3 SAE HEAPED D/CLEANING) TOOLS HCE-DT KIT DECALS MANUALS CYLINDER HEAD VALVE MECHANISM ROCKER COVER & BREATHER CAMSHAFT CRANKCASE ASSY MAIN BEARING TIMING GEAR CASE FLYWHEEL HOUSING OIL PAN PISTON & CONNECTING ROD CRANKSHAFT & FLYWHEEL TIMING GEAR INLET & EXHAUST SYSTEM TURBOCHARGER OIL PUMP & OIL STRAINER OIL PIPE OIL COOLER OIL FILTER FUEL INJECTION PUMP GENERAL FEED PUMP NOZZLE AUTOMATIC TIMER FUEL FILTER STARTER ALTERNATOR GENERAL ALTERNATOR CONTROL SYSTEM ACCESSORY OVERHAUL GASKET KIT

1

101

103

104

105

106

107

108

102

Позиция на иллюстрации	Заводской номер детали		Название детали
1	49179-02390		TURBOCHARGER ASSY
101	00665-02048		RIVET-SCREW
103	49179-57860		COVER-COMPRESSOR
104	49179-08600		CARTRIDGE ASSY
105	49168-23202		RING-SNAP
106	49184-14000		COUPLING ASSY
107	49179-17821		HOUSING-TURBINE
108	49168-56100		O-RING
102	Plate-Name		Plate-Name

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
