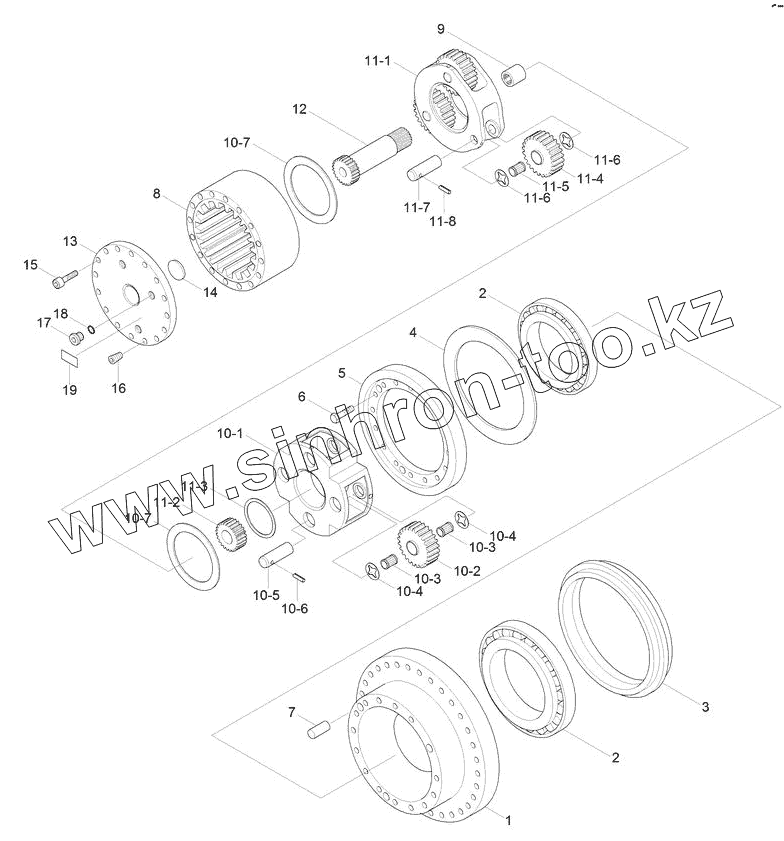

Каталог запасных частей к технике: Hyundai R180LC-9S. TRAVEL REDUCTION GEAR
1
2
2
3
4
5
6
7
8
9
10
10-1
10-2
10-3
10-3
10-4
10-4
10-5
10-6
10-7
10-7
11
11-1
11-2
11-3
11-4
11-5
11-6
11-6
11-7
11-8
12
13
14
15
16
17
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| TravelMotor | TravelMotor | Travel Motor Assy | |
| 31Q6-40020 | 31Q6-40020 | Travel Reduction Gear | |
| 1 | XKAQ-00217 | Housing | |
| 2 | XKAQ-00218 | Bearing-Main | |
| 3 | XKAQ-00219 | Seal-Floating | |
| 4 | XKAQ-00220 | Shim | |
| 5 | XKAQ-00221 | Retainer | |
| 6 | XKAQ-00222 | Bolt-Hex | |
| 7 | XKAQ-00223 | Pin-Parallel | |
| 8 | XKAQ-00224 | Gear-Ring | |
| 9 | XKAQ-00225 | Coupling | |
| 10 | XKAQ-00226 | Carrier 2 Assy | |
| 10-1 | XKAQ-00227 | Carrier 2 | |
| 10-2 | XKAQ-00228 | Gear-Planet 2 | |
| 10-3 | XKAQ-00229 | Bearing-Needle 2 | |
| 10-4 | XKAQ-00230 | Washer-Thrust | |
| 10-5 | XKAQ-00231 | Pin 2 | |
| 10-6 | XKAQ-00232 | Pin-Spring | |
| 10-7 | XKAQ-00208 | RING-THRUST | |
| 11 | XKAQ-00233 | Carrier Assy 1 | |
| 11-1 | XKAQ-00234 | Carrier 1 | |
| 11-2 | XKAQ-00235 | Gear-Sun 2 | |
| 11-3 | XKAQ-00236 | Ring-Retaining | |
| 11-4 | XKAQ-00237 | Gear-Planet 1 | |
| 11-5 | XKAQ-00238 | Bearng-Needle 1 | |
| 11-6 | XKAQ-00239 | Washer-Thrust | |
| 11-7 | XKAQ-00240 | Pin 1 | |
| 11-8 | XKAQ-00241 | Pin-Spring | |
| 12 | XKAQ-00242 | Gear-Sun 1 | |
| 13 | XKAQ-00243 | Cover | |
| 14 | XKAQ-00214 | PAD | |
| 15 | XKAQ-00244 | Bolt-Hex Socket | |
| 16 | XKAQ-00245 | Screw-Hex Socket | |
| 17 | XKAQ-00246 | Plug-Hydraulic | |
| 18 | XKAQ-00247 | O-Ring | |
| 19 | XKAQ-00248 | Name Plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
