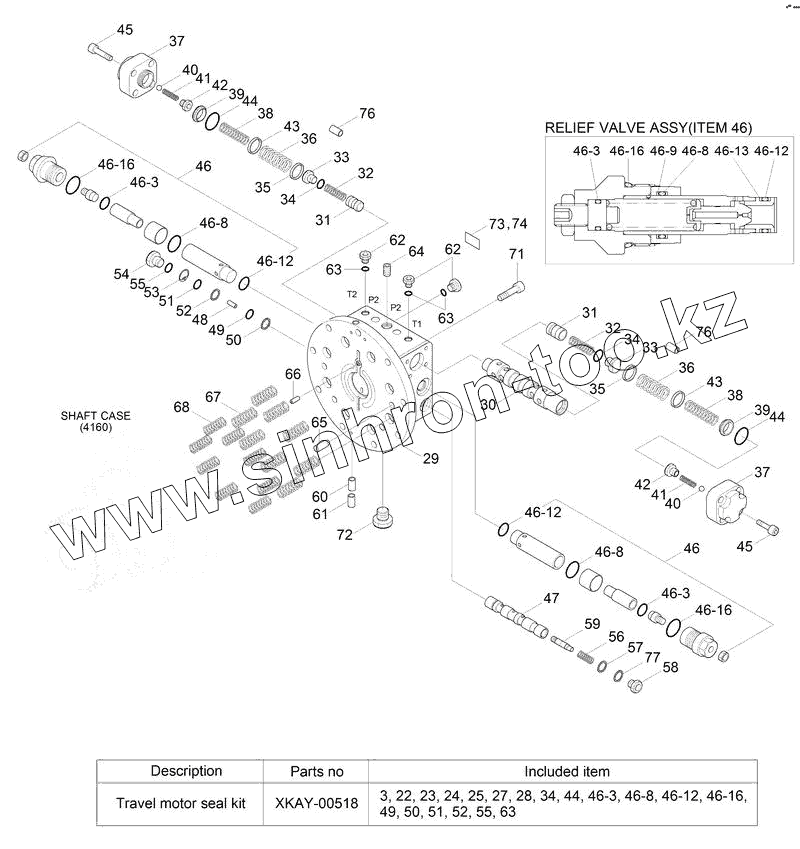

Каталог запасных частей к технике: Hyundai R180LC-9S. TRAVEL MOTOR (1/2)
29
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
45
45
46
46
46-9
46-13
47
48
53
54
56
57
58
59
60
61
62
62
64
65
66
67
68
71
72
73
74
76
76
77
K
K34
K34
K44
K44
K46-3
K46-3
K46-3
K46-8
K46-8
K46-8
K46-12
K46-12
K46-12
K46-16
K46-16
K46-16
K49
K50
K51
K52
K55
K63
K63
N30
N31
N31
N32
N32
N33
N33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q5-42030 | 31Q5-42030 | Travel Motor Unit | |
| ReductionGear | ReductionGear | T/Reduction Gear | |
| 29 | XKAY-00475 | Cover-Rear | |
| 35 | XKAY-00482 | Seat-Spring | |
| 36 | XKAY-00483 | Spring | |
| 37 | XKAY-00484 | Cover | |
| 38 | XKAY-00485 | Spring | |
| 39 | XKAY-00486 | Spool | |
| 40 | XKAY-00487 | Ball-Steel | |
| 41 | XKAY-00488 | Spring | |
| 42 | XKAY-00489 | Plug | |
| 43 | XKAY-00490 | Seat-Spring | |
| 45 | XKAY-00492 | Bolt-Wrench | |
| 46 | XKAY-01407 | Relief Valve Assy | |
| 46-9 | XKAY-00684 | Ring-Back Up | |
| 46-13 | XKAY-00687 | Ring-Back Up | |
| 47 | XKAY-00494 | Spool | |
| 48 | XKAY-00826 | Guide | |
| 53 | XKAY-00500 | Ring-Snap | |
| 54 | XKAY-00501 | Plug | |
| 56 | XKAY-00502 | Spring | |
| 57 | XKAY-00503 | Seat-Spring | |
| 58 | XKAY-00504 | Plug | |
| 59 | XKAY-00505 | Spool | |
| 60 | XKAY-00506 | Orifice | |
| 61 | XKAY-00507 | Orifice | |
| 62 | XKAY-00508 | Plug | |
| 64 | XKAY-00032 | PLUG | |
| 65 | XKAY-00509 | Pin | |
| 66 | XKAY-00510 | PIN | |
| 67 | XKAY-00511 | Spring | |
| 68 | XKAY-00512 | Spring | |
| 71 | XKAY-00385 | Bolt-Wrench | |
| 72 | XKAY-00515 | Plug | |
| 73 | XKAY-01128 | Name Plate | |
| 74 | XKAY-00517 | Rivet | |
| 76 | XKAY-00519 | Orifice | |
| 77 | XKAY-01097 | Shim | |
| C | XKAY-00476 | Spool Kit | |
| K | XKAY-00518 | Seal Kit | |
| K34 | XKAY-00481 | O-Ring | |
| K44 | XKAY-00825 | O-Ring | |
| K46-3 | XKAY-00670 | O-Ring | |
| K46-8 | XKAY-00669 | O-Ring | |
| K46-12 | XKAY-00671 | O-Ring | |
| K46-16 | XKAY-00668 | O-Ring | |
| K49 | XKAY-00827 | O-Ring | |
| K50 | XKAY-00497 | Ring-Back Up | |
| K51 | XKAY-00828 | O-Ring | |
| K52 | XKAY-00499 | Ring-Back Up | |
| K55 | XKAY-00247 | O-RING | |
| K63 | XKAY-00256 | O-RING | |
| N | 31Q5-42050 | Travel Motor Assy | |
| N30 | XKAY-00477 | Spool | |
| N31 | XKAY-00478 | Check | |
| N32 | XKAY-00479 | Spring | |
| N33 | XKAY-00480 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
