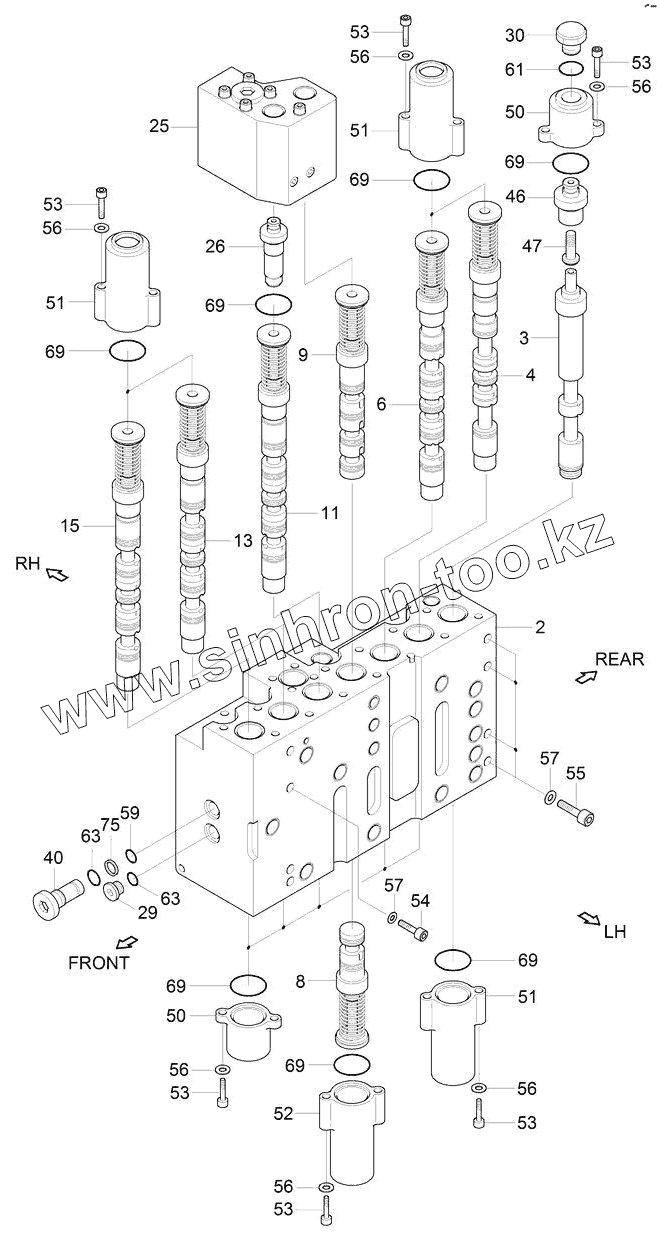

Каталог запасных частей к технике: Hyundai R180LC-9S. MAIN CONTROL VALVE (3/4)
3
4
6
8
9
11
13
15
25
26
29
30
40
46
47
50
50
51
51
51
52
53
53
53
53
53
53
54
55
56
56
56
56
56
56
57
57
59
61
63
63
69
69
69
69
69
69
69
75
N2
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| ControlValve | ControlValve | Main Control Valve | |
| 3 | XKBF-00879 | Spool Assy | |
| 4 | XKBF-01504 | Spool Assy | |
| 6 | XKBF-01505 | Spool Assy | |
| 8 | XKBF-00955 | Spool Assy | |
| 9 | XKBF-01416 | Spool Assy | |
| 11 | XKBF-01506 | Spool Assy | |
| 13 | XKBF-00884 | Spool Assy | |
| 15 | XKBF-01474 | Spool Assy | |
| 25 | XKBF-01315 | Holding Valve Kit-A2 | |
| 26 | XKBF-00899 | Lock Valve Kit-B | |
| 29 | XKBF-00892 | Plug | |
| 30 | XKBF-01130 | Plug | |
| 40 | XKBF-01319 | Plug | |
| 46 | XKBF-01320 | Sleeve-T/Straight | |
| 47 | XKBF-01321 | Piston-T/Straight | |
| 50 | XKBF-01322 | Cap-Pilot A | |
| 51 | XKBF-01323 | Cap-Pilot B1 | |
| 52 | XKBF-01324 | Cap-Pilot B2 | |
| 53 | XKBF-00950 | Bolt-Socket Head | |
| 54 | XKBF-01325 | Bolt-Socket Head | |
| 55 | XKBF-01326 | Bolt-Socket Head | |
| 56 | XKBF-00625 | Washer-Plain | |
| 57 | XKBF-01438 | Washer-Spring | |
| 59 | XKBF-01328 | O-Ring | |
| 61 | XKBF-01330 | O-Ring | |
| 63 | XKBF-01332 | O-Ring | |
| 69 | XKBF-01337 | O-Ring | |
| 75 | XKBF-00961 | Ring-Back Up | |
| N2 | XKBF-01300 | Housing-P2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
