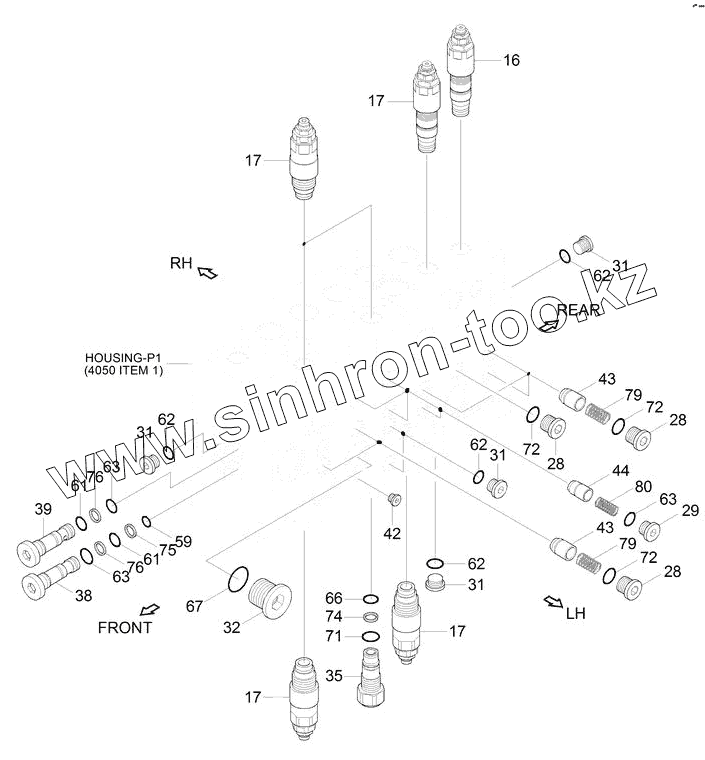

Каталог запасных частей к технике: Hyundai R180LC-9S. MAIN CONTROL VALVE (2/4)
16
17
17
17
17
28
28
28
29
31
31
31
31
32
35
38
39
42
43
43
44
59
61
61
62
62
62
62
63
63
63
66
67
71
72
72
72
74
75
76
76
79
79
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| ControlValve | ControlValve | Main Control Valve | |
| 16 | XKBF-01291 | Main Relief Valve | |
| 17 | XKBF-01307 | Relief Valve-Overload | |
| 28 | XKBF-01252 | Plug | |
| 29 | XKBF-00892 | Plug | |
| 31 | XKBF-00933 | Plug | |
| 32 | XKBF-00932 | Plug | |
| 35 | XKBF-00897 | Plug | |
| 38 | XKBF-00488 | Plug | |
| 39 | XKBF-01318 | Plug | |
| 42 | XKBF-00931 | Plug | |
| 43 | XKBF-00889 | Poppet 1 | |
| 44 | XKBF-00893 | Poppet 2 | |
| 59 | XKBF-01328 | O-Ring | |
| 61 | XKBF-01330 | O-Ring | |
| 62 | XKBF-01331 | O-Ring | |
| 63 | XKBF-01332 | O-Ring | |
| 66 | XKBF-01334 | O-Ring | |
| 67 | XKBF-01335 | O-Ring | |
| 71 | XKBF-01339 | O-Ring | |
| 72 | XKBF-01282 | O-Ring | |
| 74 | XKBF-01113 | Ring-Back Up | |
| 75 | XKBF-00961 | Ring-Back Up | |
| 76 | XKBF-00963 | Ring-Back Up | |
| 79 | XKBF-00890 | Spring | |
| 80 | XKBF-00894 | Spring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
