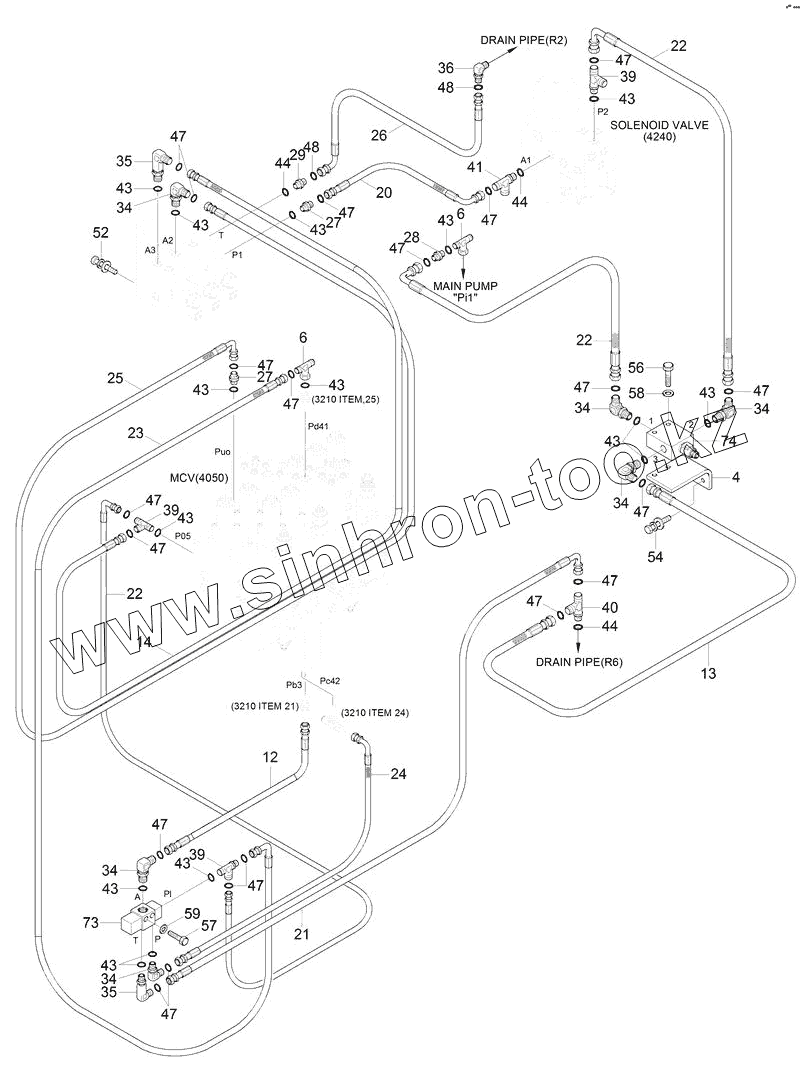

Каталог запасных частей к технике: Hyundai R180LC-9S. DOUBLE ACTING MAIN PIPING KIT 2
4
6
6
12
13
14
20
21
22
22
22
23
24
25
26
27
27
28
29
34
34
34
34
34
34
35
35
36
39
39
39
40
41
43
43
43
43
43
43
43
43
43
43
43
43
43
44
44
44
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
48
48
52
54
56
57
58
59
73
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| MainPipingKit | MainPipingKit | D/Act Main Piping Kit | |
| 4 | 31Q4-93370 | Bracket | |
| 6 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| 12 | P910-042030 | Hose Assy-Orfs 0x0 | |
| 13 | P910-042037 | Hose Assy-Orfs 0x0 | |
| 14 | P910-042042 | HOSE ASSY-ORFS 0X0 | |
| 20 | P930-042008 | Hose Assy-Orfs 0x90 | |
| 21 | P930-042009 | Hose Assy-Orfs 0x90 | |
| 22 | P930-042010 | Hose Assy-Orfs 0x90 | |
| 23 | P930-042014 | Hose Assy-Orfs 0x90 | |
| 24 | P930-042030 | Hose Assy-Orfs 0x90 | |
| 25 | P930-042046 | Hose Assy-Orfs 0x90 | |
| 26 | P930-062039 | Hose Assy-Orfs 0x90 | |
| 27 | X500-110001 | CONNECTOR-ORFS | |
| 28 | 31N6-25060 | FILTER-LAST GUARD | |
| 29 | X500-110002 | CONNECTOR-ORFS | |
| 34 | X520-110001 | ELBOW-90,ORFS | |
| 35 | 31N6-25110 | ELBOW-90,LONG | |
| 36 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 39 | X820-045151 | TEE-R/TYPE,ORFS | |
| 40 | X820-065151 | Tee-R/Type, Orfs | |
| 41 | X820-065251 | TEE-R/TYPE,ORFS | |
| 43 | S631-011004 | O-RING | |
| 44 | S631-014004 | O-RING | |
| 47 | S621-011001 | O-RING | |
| 48 | S621-012001 | O-RING | |
| 52 | S035-082026 | BOLT-W/WASHER | |
| 54 | S037-102026 | BOLT-W/WASHER | |
| 56 | S015-060456 | BOLT-HEX | |
| 57 | S015-080506 | BOLT-HEX | |
| 58 | S403-060006 | Washer-Plain | |
| 59 | S403-080006 | Washer-Plain | |
| 73 | 31Q6-20150 | Select Valve | |
| 74 | 31Q6-20131 | EPPR VALVE-BREAKER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
