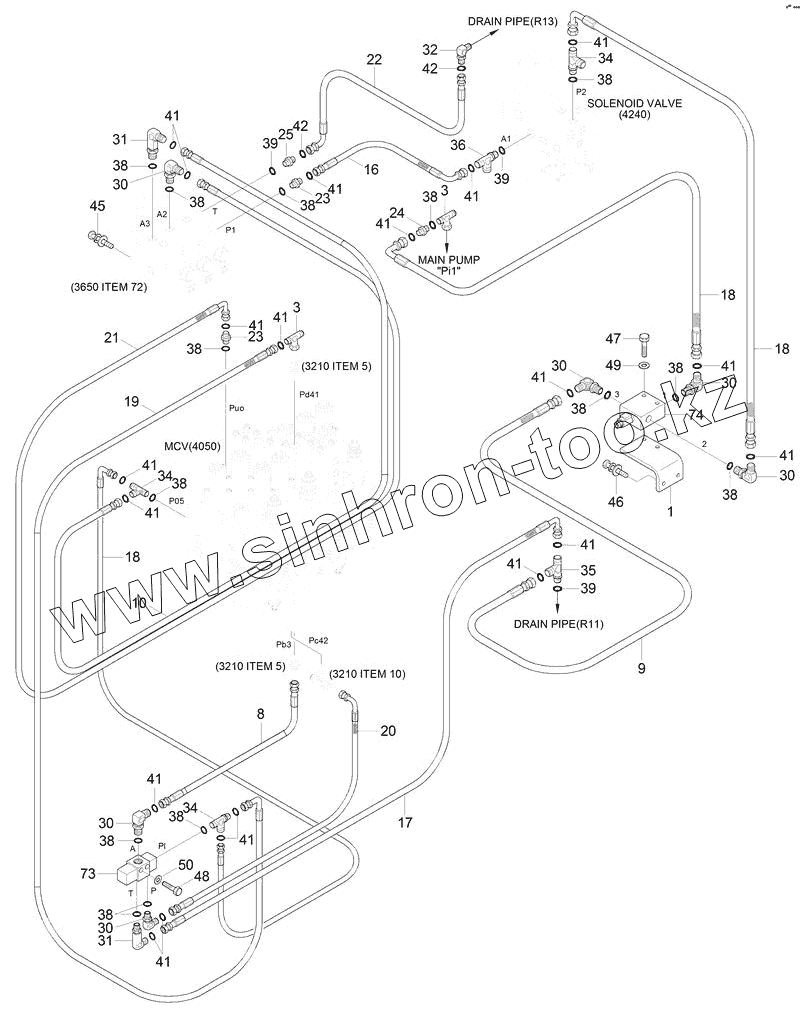

Каталог запасных частей к технике: Hyundai R180LC-9S. DOUBLE ACTING MAIN PIPING 2 (ADJUST BOOM)
1
3
3
8
9
10
16
17
18
18
18
19
20
21
22
23
23
24
25
30
30
30
30
30
30
31
31
32
34
34
34
35
36
36
38
38
38
38
38
38
38
38
38
38
38
38
39
39
39
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
41
42
42
45
46
47
48
49
50
73
74
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| MainPipingKit | MainPipingKit | D/Act Main Piping Kit | |
| 1 | 31Q4-93370 | Bracket | |
| 3 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| 8 | P910-042030 | Hose Assy-Orfs 0x0 | |
| 9 | P910-042037 | Hose Assy-Orfs 0x0 | |
| 10 | P910-042042 | HOSE ASSY-ORFS 0X0 | |
| 16 | P930-042006 | Hose Assy-Orfs 0x90 | |
| 17 | P930-042009 | Hose Assy-Orfs 0x90 | |
| 18 | P930-042010 | Hose Assy-Orfs 0x90 | |
| 19 | P930-042014 | Hose Assy-Orfs 0x90 | |
| 20 | P930-042030 | Hose Assy-Orfs 0x90 | |
| 21 | P930-042046 | Hose Assy-Orfs 0x90 | |
| 22 | P930-062039 | Hose Assy-Orfs 0x90 | |
| 23 | X500-110001 | CONNECTOR-ORFS | |
| 24 | 31N6-25060 | FILTER-LAST GUARD | |
| 25 | X500-110002 | CONNECTOR-ORFS | |
| 30 | X520-110001 | ELBOW-90,ORFS | |
| 31 | 31N6-25110 | ELBOW-90,LONG | |
| 32 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 34 | X820-045151 | TEE-R/TYPE,ORFS | |
| 35 | X820-065151 | Tee-R/Type, Orfs | |
| 36 | X820-065251 | TEE-R/TYPE,ORFS | |
| 38 | S631-011004 | O-RING | |
| 39 | S631-014004 | O-RING | |
| 41 | S621-011001 | O-RING | |
| 42 | S621-012001 | O-RING | |
| 45 | S035-082526 | BOLT-W/WASHER | |
| 46 | S037-102026 | BOLT-W/WASHER | |
| 47 | S015-060456 | BOLT-HEX | |
| 48 | S015-080506 | BOLT-HEX | |
| 49 | S403-060006 | Washer-Plain | |
| 50 | S403-080006 | Washer-Plain | |
| 73 | 31Q6-20150 | Select Valve | |
| 74 | 31Q6-20131 | EPPR VALVE-BREAKER |
