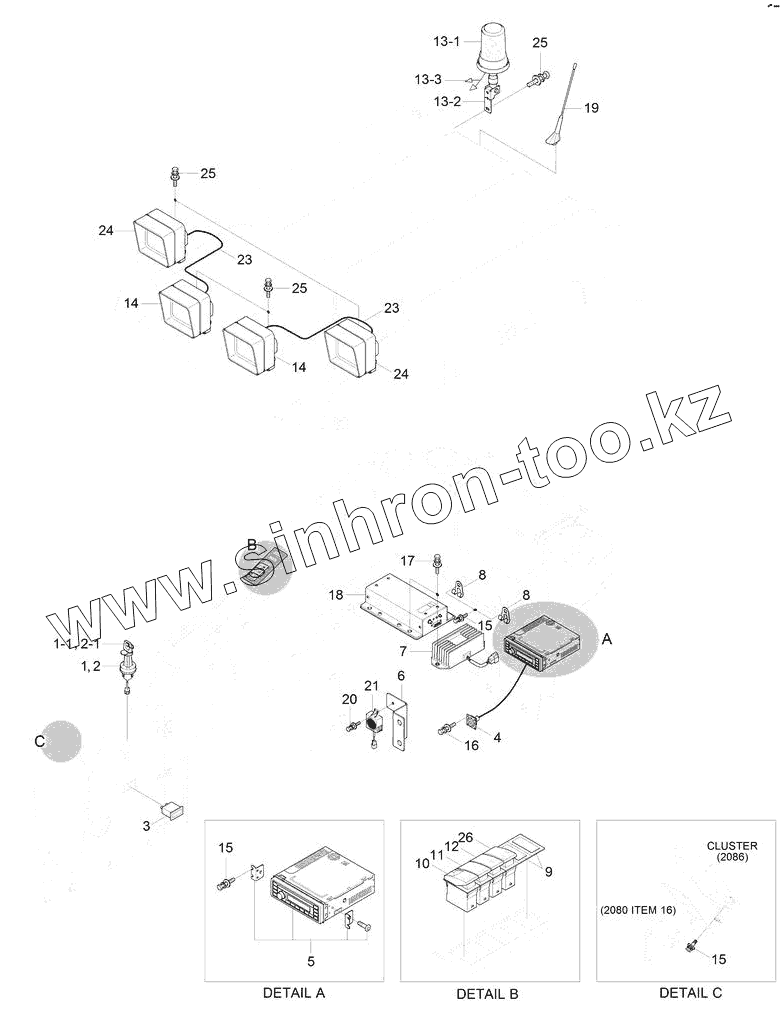

Каталог запасных частей к технике: Hyundai R180LC-9S. CAB ELECTRIC 2
24
24
24-1
24-1
1
1
1-1
1-1
2
2
2-1
2-1
3
3
4
4
5
5
6
6
7
7
8
8
8
8
9
9
10
10
11
11
12
12
13
13-1
13-1
13-2
13-2
13-3
13-3
13-11
14
14
14
14
14-1
14-1
15
15
15
15
15
15
16
16
17
17
18
18
19
19
20
20
21
21
23
23
23
23
25
25
25
25
25
25
26
26
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 24 | 21QB-60700 | WORK LAMP ASSY | |
| 24-1 | S866-240650 | BULB | |
| 1 | 21Q4-00070 | START KEY ASSY | |
| 1-1 | 21N4-10400K | KEY-START | |
| 2 | 21Q4-00060 | START KEY ASSY | |
| 2-1 | 21N3-00030 | Key-Start | |
| 3 | 21MH-00660 | HOUR METER | |
| 4 | 21Q7-10901 | HARNESS-SERVICE TOOL | |
| 5 | 21Q6-15600 | Radio & Usb Player | |
| 6 | 21Q6-13420 | BRACKET WA | |
| 7 | 21N8-20201 | Dc-Dc Converter Assy | |
| 8 | 21E9-00170 | CLIP-HARNESS | |
| 9 | 21E6-10460 | COVER | |
| 10 | 21Q4-22130 | Switch-Quick Clamp | |
| 11 | 21Q4-22140 | Switch-Beacon | |
| 12 | 21Q4-22110 | Switch-Overload | |
| 13 | 21Q4-30381 | BEACON LAMP ASSY | |
| 13-1 | 21Q4-30700 | Beacon Lamp | |
| 13-2 | 21Q4-31000 | BRACKET-TILT | |
| 13-3 | 21N4-02830 | HARNESS-BEACON LAMP | |
| 13-11 | 21EK-10330 | BULB-H1, 70W | |
| 14 | 21QB-60700 | WORK LAMP ASSY | |
| 14-1 | S866-240650 | BULB | |
| 15 | S035-081526 | BOLT-W/WASHER | |
| 16 | S035-061526 | BOLT-W/WASHER | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 18 | 21Q8-32201 | Control Unit-Remote | |
| 19 | 21Q8-32210 | Antenna-Satellite | |
| 20 | S035-051526 | BOLT-W/WASHER | |
| 21 | 21Q6-13400 | BUZZER-WARNING | |
| 23 | 21Q8-23100 | HARNESS-LAMP | |
| 25 | S037-102026 | BOLT-W/WASHER | |
| 26 | 21Q4-22150 | Switch-Breaker | |
| N2-2 | 21Q4-00080 | Rotto | |
| N2-3 | 21M9-00040 | Cylinder |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
