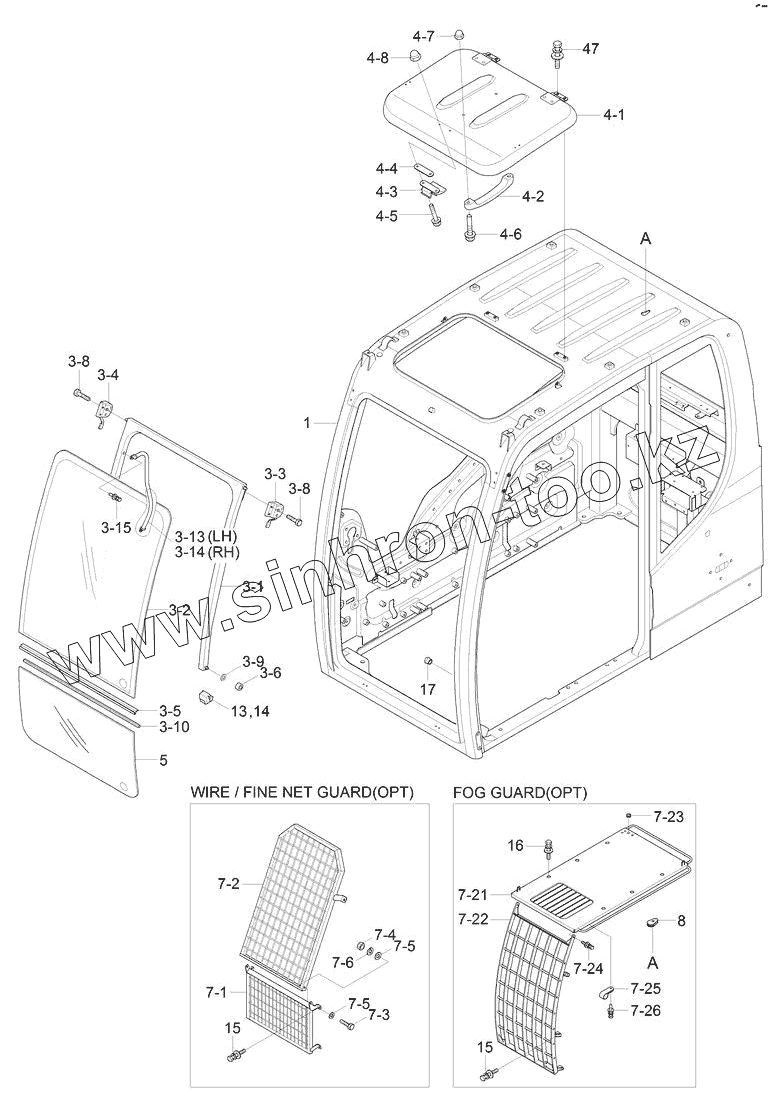

Каталог запасных частей к технике: Hyundai R180LC-9S. CAB ASSY (1/4)
15
1
3
3-1
3-2
3-3
3-4
3-5
3-6
3-8
3-8
3-9
3-10
3-13
3-14
3-15
4
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
5
7
7
7-1
7-2
7-3
7-4
7-5
7-5
7-6
7-21
7-22
7-23
7-24
7-25
7-26
8
13
14
16
17
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 15 | S037-122526 | BOLT-W/WASHER | |
| 71Q7-80010-AS2 | 71Q7-80010-AS2 | Cabin Assy | |
| 71Q6-06600 | 71Q6-06600 | PROTECTOR-CAB | |
| 71Q6-06630 | 71Q6-06630 | PROTECTOR-UP | |
| 71Q6-06640 | 71Q6-06640 | PROTECTOR-LOW | |
| 41QA-40160 | 41QA-40160 | CAP-HEX | |
| 71Q7-80010-AS1 | 71Q7-80010-AS1 | Cabin Assy | |
| 1 | 71Q7-01000 | Cabin Wa | |
| 3 | 78Q6-02400 | Sliding Door Assy | |
| 3-1 | 71Q6-02411 | SLIDING DOOR WA | |
| 3-2 | 71Q4-02441 | GLASS-SLIDING DOOR | |
| 3-3 | 71Q6-02480 | LATCH-SLIDING, LH | |
| 3-4 | 71Q6-02490 | LATCH-SLIDING, RH | |
| 3-5 | 71Q4-03020 | SASH | |
| 3-6 | 71N6-03150 | ROLLER | |
| 3-8 | S017-100156 | BOLT-HEX | |
| 3-9 | S403-101002 | WASHER-PLAIN | |
| 3-10 | 71Q6-03010 | SEAL | |
| 3-13 | 77Q6-02650 | Handle | |
| 3-14 | 77Q6-02470 | Handle | |
| 3-15 | S035-082526 | BOLT-W/WASHER | |
| 4 | 72Q6-02500 | SUN ROOF ASSY | |
| 4-1 | 72Q6-02510 | SUN ROOF WA | |
| 4-2 | 71Q6-02330 | HANDLE | |
| 4-3 | 71Q6-02610 | CATCH-ROOF | |
| 4-4 | 71Q6-02620 | PAD-RUBBER | |
| 4-5 | S132-061546 | SCREW-W/WASHER | |
| 4-6 | S161-050256 | SCREW-CROSS R/ROUND | |
| 4-7 | S291-050002 | CAP NUT-DOMED | |
| 4-8 | S291-060002 | CAP NUT-DOMED | |
| 5 | 71Q6-02710 | Glass-Fr/Bottom | |
| 7 | 71Q6-06500 | PROTECTOR-CAB | |
| 7 | 71Q6-06001 | GUARD ASSY | |
| 7-1 | 71Q6-06520 | PROTECTOR-LOW | |
| 7-2 | 71Q6-06510 | PROTECTOR-UP | |
| 7-3 | S017-120706 | BOLT-HEX | |
| 7-4 | S205-12100B | NUT-HEX | |
| 7-5 | S403-12200B | WASHER-PLAIN | |
| 7-6 | S411-12000B | WASHER-SPRING | |
| 7-21 | 71Q6-06011 | GUARD WA-TOP | |
| 7-22 | 71Q6-06020 | GUARD WA-FRONT | |
| 7-23 | S681-190400 | GROMMET | |
| 7-24 | S037-122526 | BOLT-W/WASHER | |
| 7-25 | 31L7-10350 | CLAMP | |
| 7-26 | S037-102026 | BOLT-W/WASHER | |
| 8 | 71Q6-04360 | GROMMET | |
| 13 | 71Q6-02900 | STOPPER-LH | |
| 14 | 71Q6-02910 | STOPPER-RH | |
| 16 | S037-123026 | BOLT-W/WASHER | |
| 17 | 41QA-40150 | CAP-HEX | |
| 47 | S035-081626 | BOLT-W/WASHER |
