Каталог запасных частей к технике: Hyundai R180LC-9. UPPER HYD PIPING (BASE)
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
16
17
17
18
18
19
19
20
20
20
20
20
20
21
21
22
22
23
23
24
25
25
25
26
26
27
27
28
28
29
30
30
31
210
220
230
240
240
250
260
260

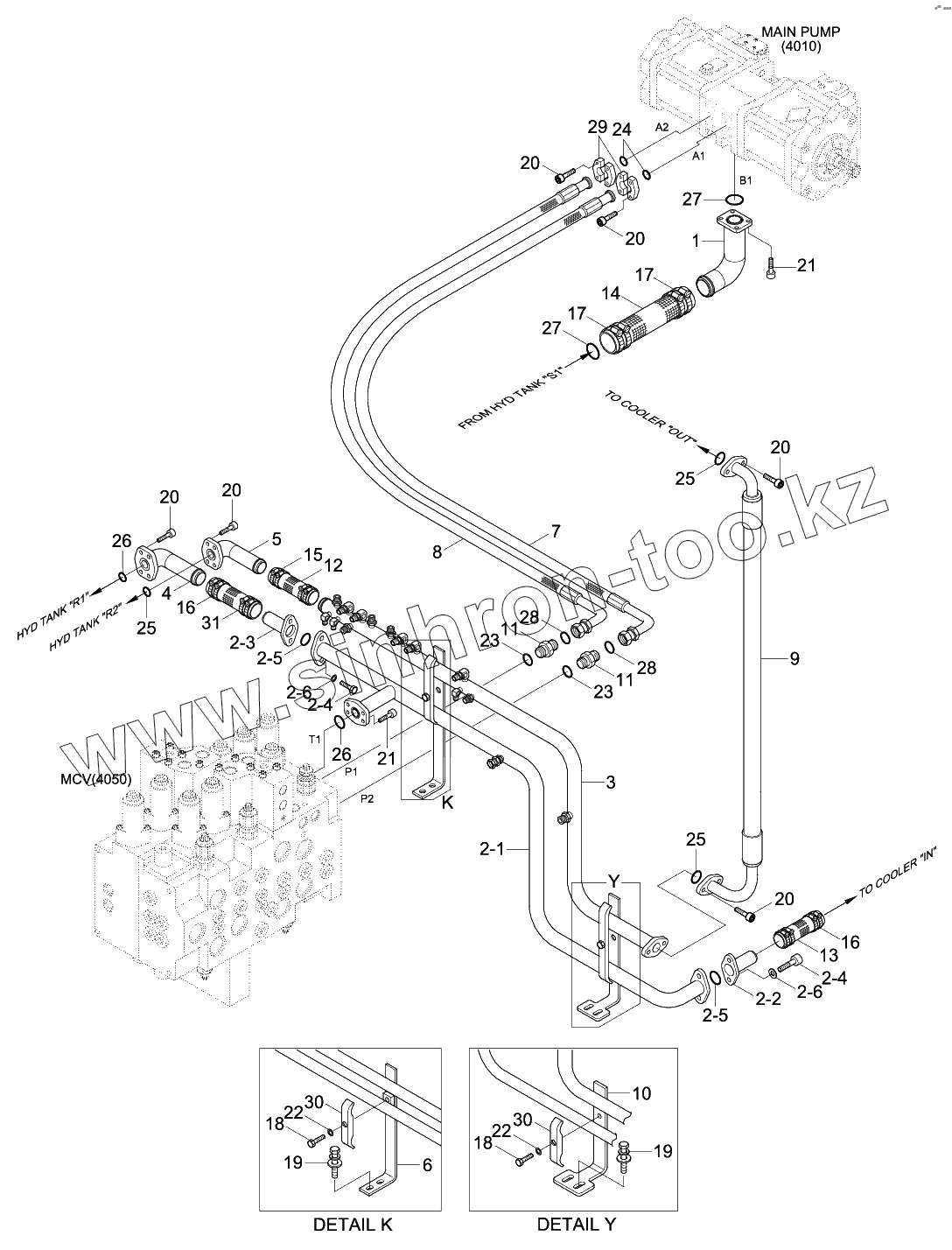

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 31Q5-11100 | Pipe Assy-Suction | |
| 2 | 31Q5-11110 | Pipe Sub Assy-Return | |
| 3 | 31Q5-11122 | Pipe Assy | |
| 3 | 31Q5-11121 | Pipe Assy | |
| 4 | 31Q5-11160 | Pipe Assy | |
| 5 | 31Q4-12130 | Pipe Assy | |
| 6 | 31Q4-11180 | Bracket-Return | |
| 7 | P993-128420 | Hose Assy-Orfs, Flg 0x90 | |
| 8 | P993-128419 | Hose Assy-Orfs, Flg 0x90 | |
| 9 | 31Q5-11131 | Hose Assy-Return | |
| 10 | 31Q4-11190 | Bracket-Pipe | |
| 11 | X500-110004 | CONNECTOR-ORFS | |
| 12 | P760-063019 | Hose-Rubber | |
| 13 | 31Q4-13270 | Hose Rubber | |
| 14 | P760-101024 | Hose-Rubber Low | |
| 14 | P760-101028 | Hose-Rubber | |
| 15 | S572-570006 | Clamp-Hose, Wire Type | |
| 16 | S572-640006 | Clamp-Hose, Wire Type | |
| 17 | 31N6-11190 | Clamp-Hose, Wire Type | |
| 18 | S017-120706 | BOLT-HEX | |
| 19 | S037-103026 | BOLT-W/WASHER | |
| 20 | S109-100306 | BOLT-SOCKET | |
| 21 | S109-120306 | BOLT-SOCKET | |
| 22 | S403-12200B | WASHER-PLAIN | |
| 23 | S631-024004 | O-RING | |
| 24 | Y171-019004 | O-RING | |
| 25 | Y171-027004 | O-RING | |
| 26 | Y172-003004 | O-Ring | |
| 27 | S631-071001 | O-Ring | |
| 28 | S621-018001 | O-RING | |
| 29 | P174-120102 | Flange-Hyd, Split | |
| 30 | 31N4-14240 | Clamp-Pipe | |
| 31 | P760-073019 | Hose-Rubber | |
| 210 | 31Q5-11141 | Pipe Assy | |
| 220 | 31ER-11111 | Valve-Check | |
| 230 | 31ER-11121 | Check Valve | |
| 240 | S109-120456 | Bolt-Socket | |
| 250 | Y172-003004 | O-Ring | |
| 260 | S403-122006 | Washer-Plain |
