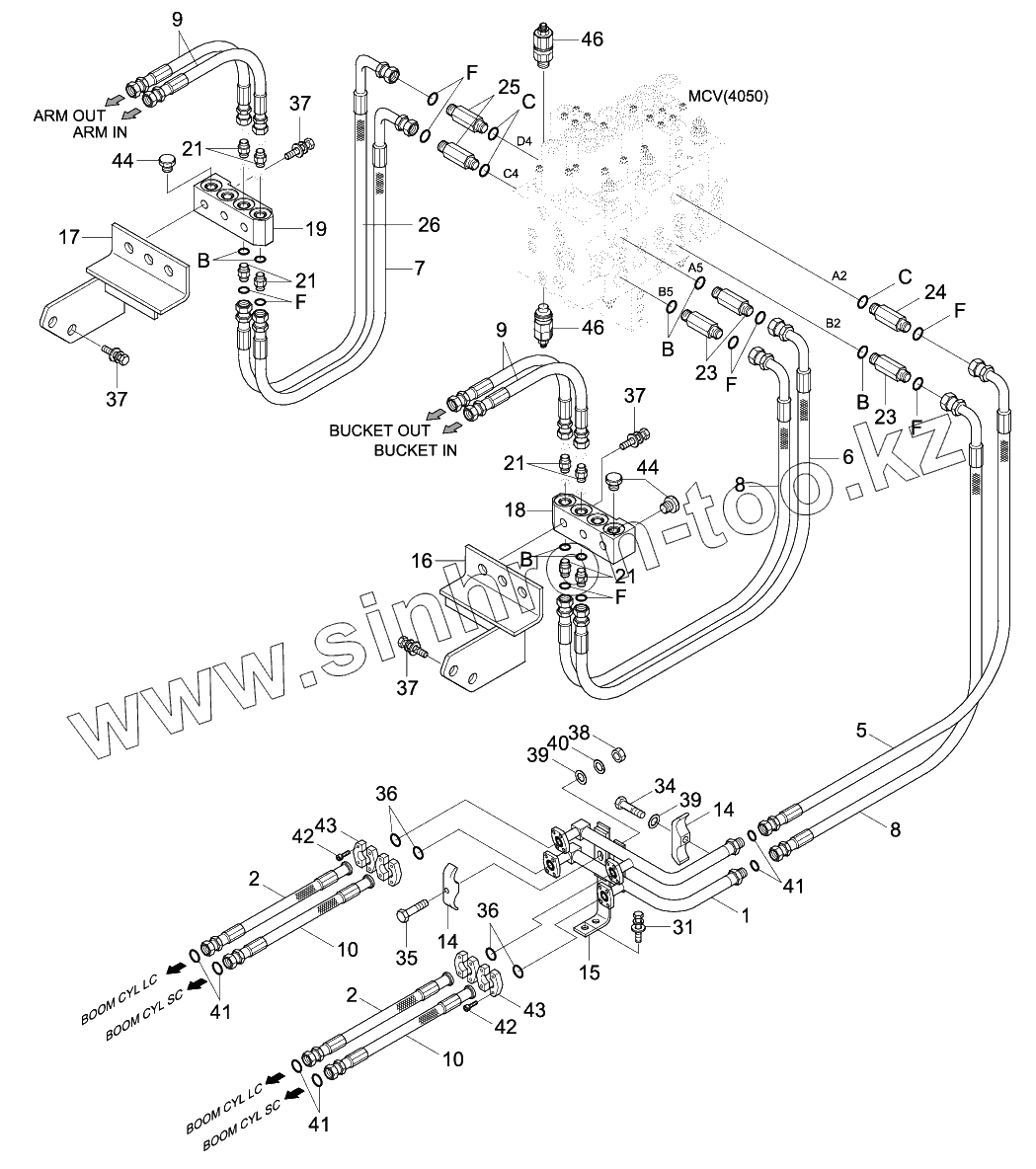

Каталог запасных частей к технике: Hyundai R180LC-9. UPPER HYD PIPING 1 (ADJUST BOOM, -#0030)
1
2
2
5
6
7
8
8
9
9
10
10
14
14
15
16
17
18
19
21
21
21
21
23
23
24
25
26
31
34
35
36
36
37
37
37
37
38
39
39
40
41
41
41
42
42
43
43
44
44
46
46
B
B
B
B
C
C
F
F
F
F
F
F
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 31Q5-11150 | Pipe Assy | |
| 2 | 31Q5-53060 | Hose Assy | |
| 5 | P930-128020 | Hose Assy-Orfs 0x90 | |
| 6 | P930-128017 | Hose Assy-Orfs 0x90 | |
| 7 | P930-128022 | Hose Assy-Orfs 0x90 | |
| 8 | P930-128018 | Hose Assy-Orfs 0x90 | |
| 9 | P913-128035 | Hose Assy-Orfs 0x0 | |
| 10 | 31Q5-10310 | Hose Assy | |
| 14 | 31N4-12270 | Clamp-Pipe | |
| 15 | 31Q4-11170 | Bracket | |
| 16 | 31N5-10380 | Bracket-Lh, Manifold | |
| 17 | 31N5-10390 | Bracket-Rh, Manifold | |
| 18 | 35EA-12500 | Manifold-Lh | |
| 19 | 35EA-12510 | Manifold-Rh | |
| 21 | X500-110004 | CONNECTOR-ORFS | |
| 23 | X511-112546 | Connector-Long, Orfs | |
| 24 | X511-116546 | Connector-Long, Orfs | |
| 25 | X511-112542 | Connector-Long, Orfs | |
| 26 | P930-128021 | Hose Assy-Orfs 0x90 | |
| 31 | S037-103026 | BOLT-W/WASHER | |
| 34 | S017-100506 | BOLT-HEX | |
| 35 | S017-100806 | Bolt-Hex | |
| 36 | Y171-019004 | O-RING | |
| 37 | S037-123056 | Bolt-W/Washer | |
| 38 | S207-101006 | Nut-Hex | |
| 39 | S403-10200B | WASHER-PLAIN | |
| 40 | S411-100006 | WASHER-SPRING | |
| 41 | S621-018001 | O-RING | |
| 42 | S109-100306 | BOLT-SOCKET | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P220-110105 | Plug-Hex | |
| 46 | 31Q4-99560 | Port Relief Valve | |
| B | S631-014004 | O-RING | |
| C | S631-018004 | O-RING | |
| F | S621-011001 | O-RING |
