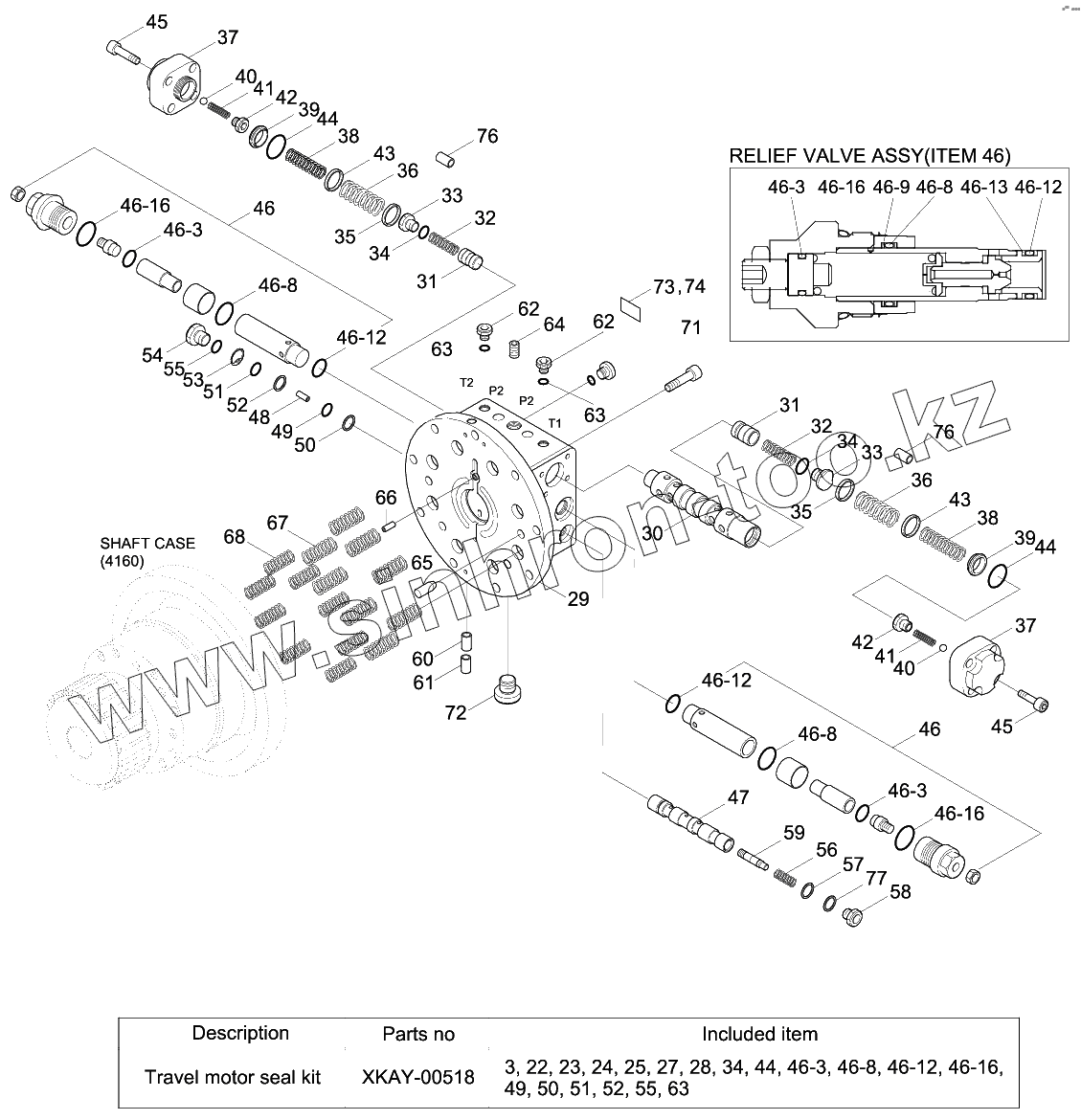

Каталог запасных частей к технике: Hyundai R180LC-9. TRAVEL MOTOR (1/2)
31Q5-42030
31Q5-42050
XKAY-00518
29
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
63
64
65
66
67
68
71
72
73
74
76
76
77
463
463
463
468
468
468
469
4612
4612
4612
4613
4616
4616
4616
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| ReductionGearAssy | ReductionGearAssy | Reduction Gear Assy | |
| 31Q5-42030 | 31Q5-42030 | Travel Motor Unit | |
| 31Q5-42050 | 31Q5-42050 | Travel Motor Assy | |
| XKAY-00518 | XKAY-00518 | Seal Kit | |
| XKAY-00476 | XKAY-00476 | Spool Kit | |
| 29 | XKAY-00475 | Cover-Rear | |
| 30 | XKAY-00477 | Spool | |
| 31 | XKAY-00478 | Check | |
| 32 | XKAY-00479 | Spring | |
| 33 | XKAY-00480 | Plug | |
| 34 | XKAY-00481 | O-Ring | |
| 35 | XKAY-00482 | Seat-Spring | |
| 36 | XKAY-00483 | Spring | |
| 37 | XKAY-00484 | Cover | |
| 38 | XKAY-00485 | Spring | |
| 39 | XKAY-00486 | Spool | |
| 40 | XKAY-00487 | Ball-Steel | |
| 41 | XKAY-00488 | Spring | |
| 42 | XKAY-00489 | Plug | |
| 43 | XKAY-00490 | Seat-Spring | |
| 44 | XKAY-00825 | O-Ring | |
| 45 | XKAY-00492 | Bolt-Wrench | |
| 46 | XKAY-01407 | Relief Valve Assy | |
| 47 | XKAY-00494 | Spool | |
| 48 | XKAY-00826 | Guide | |
| 49 | XKAY-00827 | O-Ring | |
| 50 | XKAY-00497 | Ring-Back Up | |
| 51 | XKAY-00828 | O-Ring | |
| 52 | XKAY-00499 | Ring-Back Up | |
| 53 | XKAY-00500 | Ring-Snap | |
| 54 | XKAY-00501 | Plug | |
| 55 | XKAY-00247 | O-RING | |
| 56 | XKAY-00502 | Spring | |
| 57 | XKAY-00503 | Seat-Spring | |
| 58 | XKAY-00504 | Plug | |
| 59 | XKAY-00505 | Spool | |
| 60 | XKAY-00506 | Orifice | |
| 61 | XKAY-00507 | Orifice | |
| 62 | XKAY-00508 | Plug | |
| 63 | XKAY-00256 | O-RING | |
| 64 | XKAY-00032 | PLUG | |
| 65 | XKAY-00509 | Pin | |
| 66 | XKAY-00510 | PIN | |
| 67 | XKAY-00511 | Spring | |
| 68 | XKAY-00512 | Spring | |
| 71 | XKAY-00385 | Bolt-Wrench | |
| 72 | XKAY-00515 | Plug | |
| 73 | XKAY-01128 | Name Plate | |
| 74 | XKAY-00517 | Rivet | |
| 76 | XKAY-00519 | Orifice | |
| 77 | XKAY-01097 | Shim | |
| 463 | XKAY-00670 | O-Ring | |
| 468 | XKAY-00669 | O-Ring | |
| 469 | XKAY-00684 | Ring-Back Up | |
| 4612 | XKAY-00671 | O-Ring | |
| 4613 | XKAY-00687 | Ring-Back Up | |
| 4616 | XKAY-00668 | O-Ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
