Позиция на иллюстрации
Заводской номер детали
Название детали
XKBN-00103
XKBN-00103

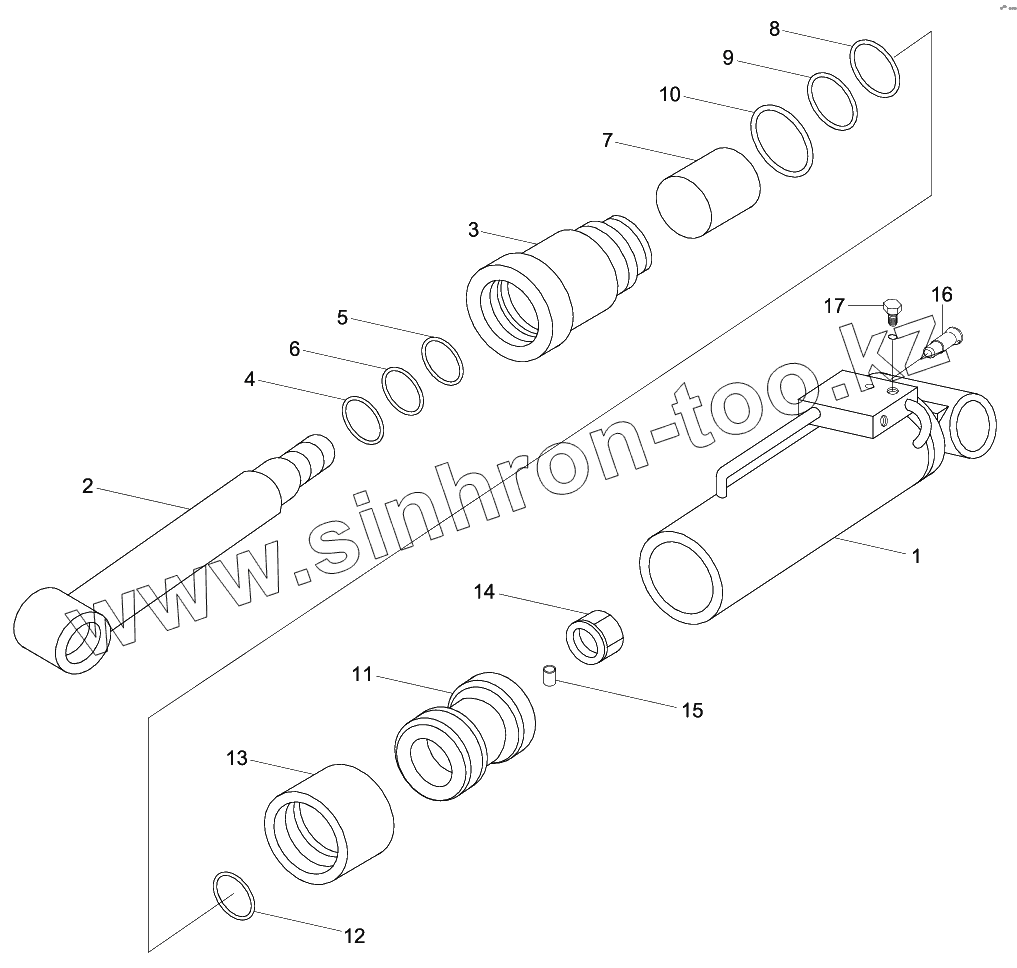

CYLINDER-QUICK CLAMP
1
XKBN-00133
TUBE
2
XKBN-00134
ROD
3
XKBN-00135
COVER-ROD
4
XKBN-00136
WIPER-DUST
5
XKBN-00137
U-PACKING
6
XKBN-00035
RING-BACK UP
7
XKBN-00138
BUSHING-DU
8
XKBN-00139
O-RING
9
XKBN-00140
RING-BACK UP
10
XKBN-00141
O-RING
11
XKBN-00142
PISTON
12
XKBN-00127
O-RING
13
XKBN-00143
SEAL-COMPACT
14
XKBN-00144
NUT-TEFRON
15
XKBN-00145
PIN-SPRING
16
XKBN-00131
CHECK VALVE-PILOT
17
XKBN-00132
BOLT-SOCKET PLUG
