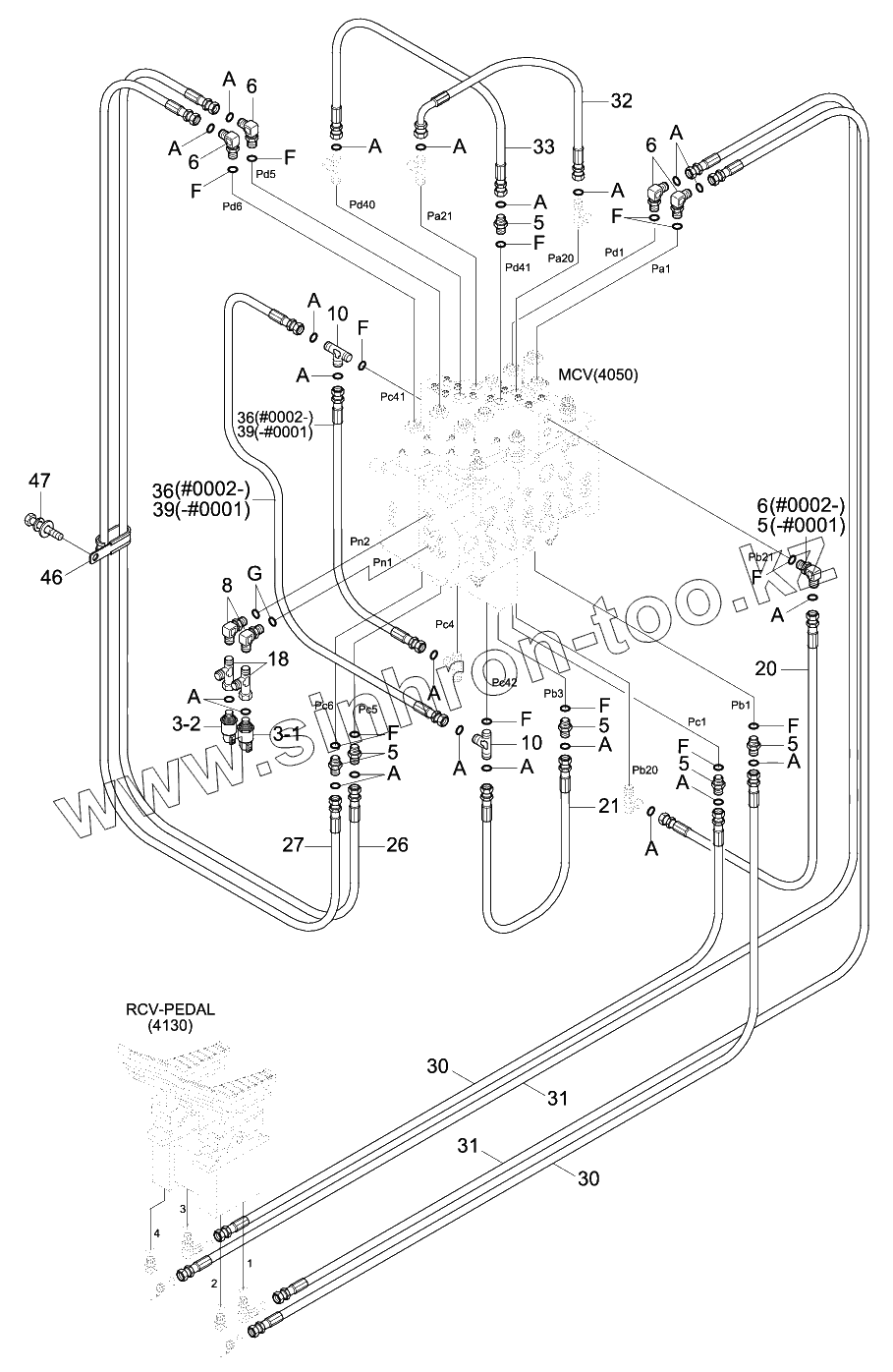

Каталог запасных частей к технике: Hyundai R180LC-9. PILOT HYD PIPING (CONTROL 2)
S631-014004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
5
5
5
5
5
5
6
6
6
6
8
10
10
18
20
20
21
26
27
30
30
30
31
31
32
33
36
36
39
39
46
47
310
310
320
320
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| S631-014004 | S631-014004 | O-RING | |
| S631-011004 | S631-011004 | O-RING | |
| S621-011001 | S621-011001 | O-RING | |
| 5 | X500-110001 | CONNECTOR-ORFS | |
| 6 | X520-110001 | ELBOW-90,ORFS | |
| 8 | X520-110012 | ELBOW-90,ORFS | |
| 10 | X820-045151 | TEE-R/TYPE,ORFS | |
| 18 | 31N6-66080 | TEE-BRENCH TEST | |
| 20 | X400-042022 | HOSE ASSY-SYNF,ORFS | |
| 20 | X420-042022 | Hose Assy-Orfs 0x90 | |
| 21 | X420-042007 | HOSE ASSY-ORFS 0X90 | |
| 26 | X400-042020 | Hose Assy-Synf, Orfs | |
| 27 | X400-042020 | Hose Assy-Synf, Orfs | |
| 30 | X400-042058 | Hose Assy-Synf Orfs | |
| 30 | X400-042061 | Hose Assy-Synf, Orfs | |
| 31 | X400-042067 | Hose Assy-Synf, Orfs | |
| 32 | X420-042009 | Hose Assy-Orfs 0x90 | |
| 33 | X420-042012 | Hose Assy-Orfs 0x90 | |
| 36 | X420-042021 | HOSE ASSY-ORFS 0X90 | |
| 39 | X420-042024 | HOSE ASSY-ORFS 0X90 | |
| 46 | 31L7-10270 | CLAMP-TUBE | |
| 47 | S038-102026 | Bolt-W/Washer | |
| 310 | 31Q8-40510 | Sensor-Pressure | |
| 310 | 31Q4-40820 | SENSOR-PRESSURE | |
| 320 | 31Q4-40820 | SENSOR-PRESSURE | |
| 320 | 31Q8-40510 | Sensor-Pressure |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
