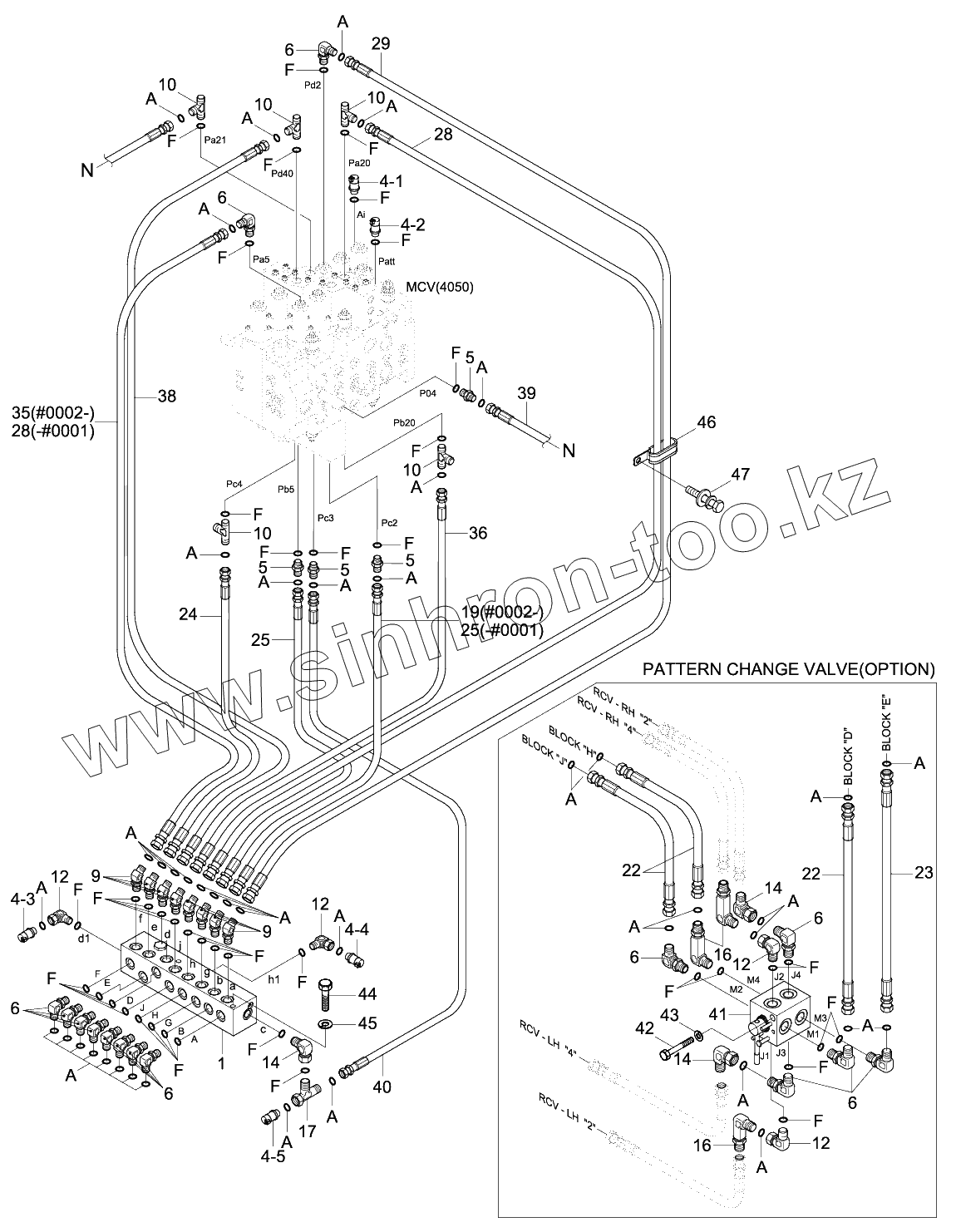

Каталог запасных частей к технике: Hyundai R180LC-9. PILOT HYD PIPING (CONTROL 1)
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
1
5
5
5
5
6
6
6
6
6
6
6
9
9
10
10
10
10
10
12
12
12
12
14
14
14
16
16
17
19
22
22
23
24
25
25
25
28
28
29
29
35
36
38
38
39
40
41
42
43
44
45
46
47
410
410
420
420
430
430
440
440
450
450
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| S631-011004 | S631-011004 | O-RING | |
| S621-011001 | S621-011001 | O-RING | |
| 1 | 31Q6-20171 | Block-Terminal | |
| 5 | X500-110001 | CONNECTOR-ORFS | |
| 6 | X520-110001 | ELBOW-90,ORFS | |
| 9 | X530-110001 | ELBOW-45,ORFS | |
| 10 | X820-045151 | TEE-R/TYPE,ORFS | |
| 12 | 31E5-11110 | ADAPTER | |
| 14 | X850-515100 | ELBOW-90 SWIVEL,ORFS | |
| 16 | 31N6-25110 | ELBOW-90,LONG | |
| 17 | 31NB-20130 | TEE-RUN TYPE/TEST | |
| 19 | X400-042023 | Hose Assy-Synf, Orfs | |
| 22 | X400-042010 | Hose Assy-Synf, Orfs | |
| 23 | X400-042012 | Hose Assy-Synf, Orfs | |
| 24 | X400-042021 | HOSE ASSY-SYNF,ORFS | |
| 25 | X400-042025 | Hose Assy-Synf, Orfs | |
| 25 | X400-042026 | Hose Assy-Synflex, Orfs | |
| 28 | X400-042029 | Hose Assy-Synf, Orfs | |
| 29 | X400-042030 | Hose Assy-Synf, Orfs | |
| 29 | X400-042032 | Hose Assy-Synf, Orfs | |
| 35 | X400-042028 | Hose Assy-Synf, Orfs | |
| 36 | X420-042021 | HOSE ASSY-ORFS 0X90 | |
| 38 | X420-042031 | Hose Assy-Orfs 0x90 | |
| 38 | X420-042030 | Hose Assy-Orfs 0x90 | |
| 39 | X420-042024 | HOSE ASSY-ORFS 0X90 | |
| 40 | X420-042029 | Hose Assy-Orfs 0x90 | |
| 41 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 42 | S015-080806 | Bolt-Hex | |
| 43 | S411-080006 | WASHER-SPRING | |
| 44 | S109-080756 | BOLT-SOCKET | |
| 45 | S411-100006 | WASHER-SPRING | |
| 46 | 31L7-10270 | CLAMP-TUBE | |
| 47 | S038-102026 | Bolt-W/Washer | |
| 410 | 31Q8-40520 | Sensor-Pressure | |
| 410 | 31Q4-40830 | SENSOR-PRESSURE | |
| 420 | 31Q4-40830 | SENSOR-PRESSURE | |
| 420 | 31Q8-40520 | Sensor-Pressure | |
| 430 | 31Q4-40830 | SENSOR-PRESSURE | |
| 430 | 31Q8-40520 | Sensor-Pressure | |
| 440 | 31Q4-40830 | SENSOR-PRESSURE | |
| 440 | 31Q8-40520 | Sensor-Pressure | |
| 450 | 31Q4-40830 | SENSOR-PRESSURE | |
| 450 | 31Q8-40520 | Sensor-Pressure |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
