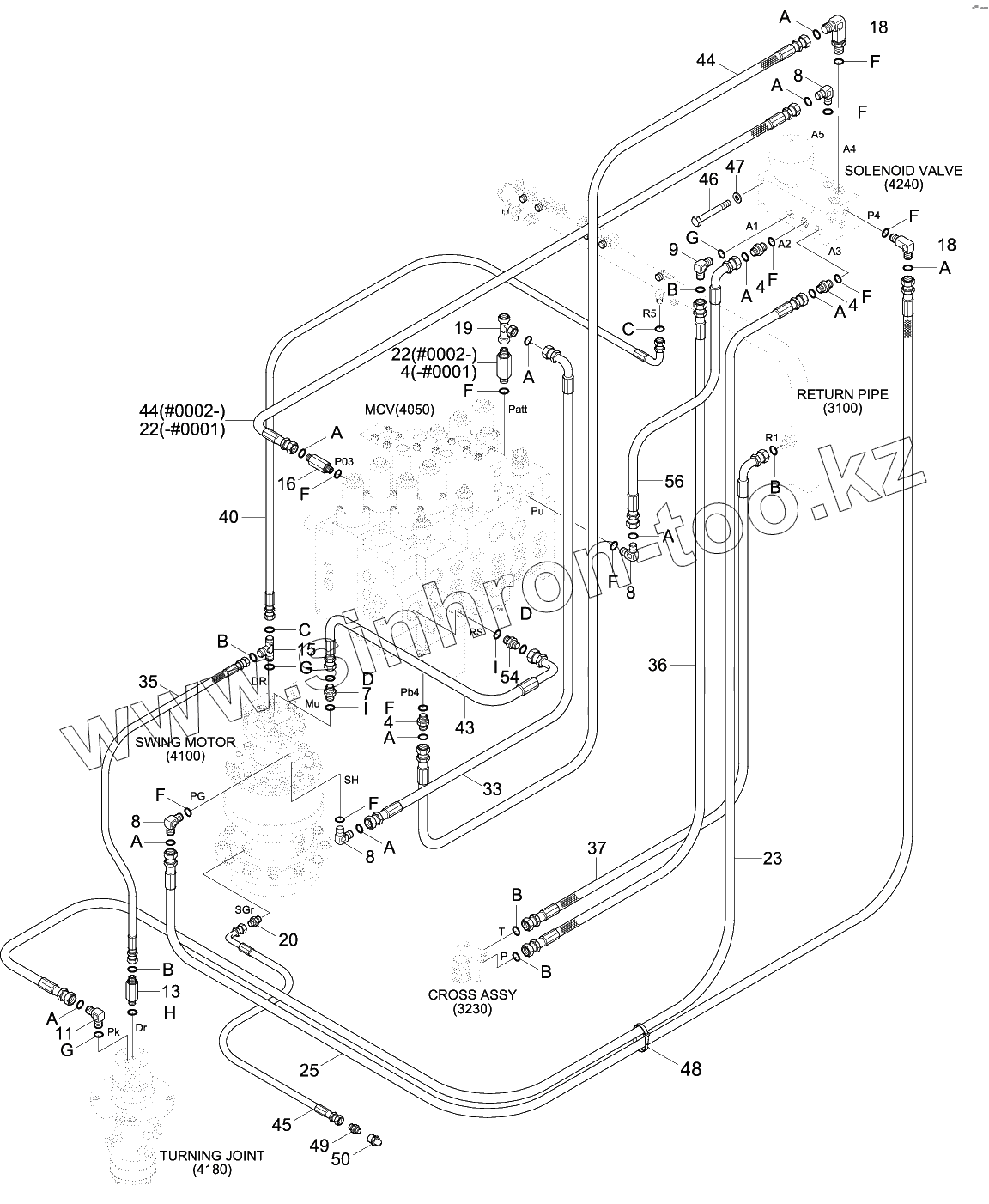

Каталог запасных частей к технике: Hyundai R180LC-9. PILOT HYD PIPING (BASE 1)
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S631-018004
S631-024004
S631-024004
S631-014004
S631-014004
S631-014004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S621-018001
S621-018001
S621-014001
S621-014001
S621-012001
S621-012001
S621-012001
S621-012001
S621-012001
S621-012001
4
4
4
4
7
8
8
8
8
9
11
13
15
16
18
18
19
20
22
22
22
23
25
33
35
35
36
37
40
43
44
44
44
45
46
47
48
49
50
54
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| S621-011001 | S621-011001 | O-RING | |
| S631-018004 | S631-018004 | O-RING | |
| S631-024004 | S631-024004 | O-RING | |
| S631-014004 | S631-014004 | O-RING | |
| S631-011004 | S631-011004 | O-RING | |
| S621-018001 | S621-018001 | O-RING | |
| S621-014001 | S621-014001 | O-RING | |
| S621-012001 | S621-012001 | O-RING | |
| 4 | X500-110001 | CONNECTOR-ORFS | |
| 7 | X500-110005 | CONNECTOR-ORFS | |
| 8 | X520-110001 | ELBOW-90,ORFS | |
| 9 | X520-110002 | ELBOW-90,ORFS | |
| 11 | X520-110012 | ELBOW-90,ORFS | |
| 13 | X511-108533 | Connector-Orfs, Long | |
| 15 | X820-085353 | Tee-R/Type, Orfs | |
| 16 | X520-110001 | ELBOW-90,ORFS | |
| 18 | 31N6-25110 | ELBOW-90,LONG | |
| 19 | 31N6-66080 | TEE-BRENCH TEST | |
| 20 | P010-430002 | CONNECTOR | |
| 22 | X400-042042 | Hose Assy-Synflex, Orfs | |
| 22 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 23 | X400-042052 | Hose Assy-Synflex, Orfs | |
| 25 | X400-042044 | Hose Assy-Synflex, Orfs | |
| 33 | X420-042021 | HOSE ASSY-ORFS 0X90 | |
| 35 | P910-082016 | Hose Assy-Orfs 0x0 | |
| 35 | P910-082018 | Hose Assy-Orfs 0x0 | |
| 36 | P910-062059 | Hose Assy-Orfs 0x0 | |
| 37 | P930-062029 | Hose Assy-Orfs 0x90 | |
| 40 | P930-082017 | Hose Assy-Orfs 0x90 | |
| 43 | P930-122014 | Hose Assy-Orfs 0x90 | |
| 44 | X400-042038 | Hose Assy-Synflex, Orfs | |
| 44 | X400-042037 | Hose Assy-Synflex, Orfs | |
| 45 | P860-042022 | Hose Assy-Syn 0x90 | |
| 46 | S017-101206 | Bolt-Hex | |
| 47 | S411-100006 | WASHER-SPRING | |
| 48 | S551-050203 | Clamp-Band | |
| 49 | P010-430011 | CONNECTOR | |
| 50 | S651-810002 | NIPPLE-GREASE | |
| 54 | X500-110016 | Connector-Orfs | |
| 56 | X420-042039 | Hose Assy-Orfs 0x90 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
