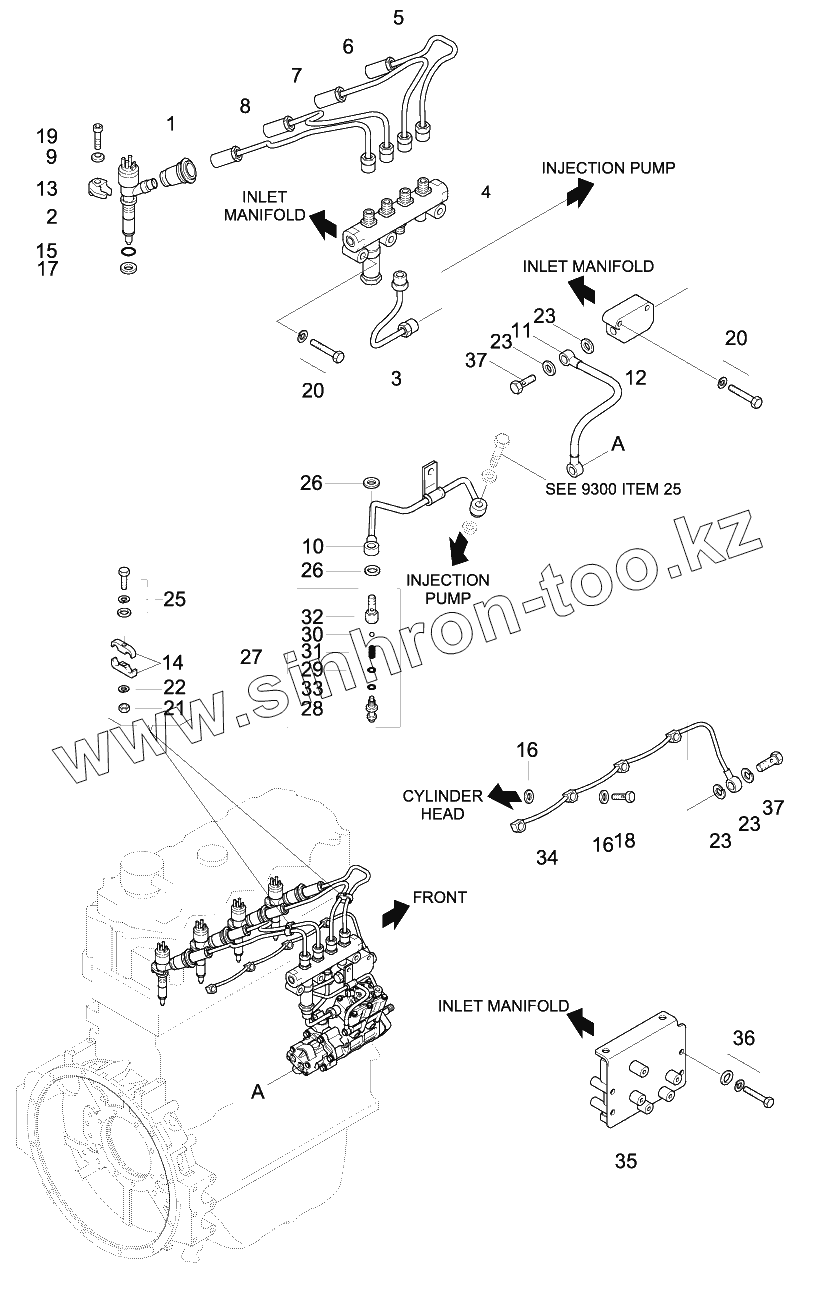

Каталог запасных частей к технике: Hyundai R180LC-9. FUEL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
20
21
22
23
23
23
23
25
26
26
27
28
29
30
31
32
33
34
35
36
37
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | XJAF-02400 | Seal-Injection | |
| 2 | XJAF-02679 | Injector Assy-Hsf | |
| 3 | XJAF-02402 | Pipe-Pump | |
| 4 | XJAF-02681 | Rail-4 Cylinder | |
| 5 | XJAF-02404 | Pipe-Injection No1 | |
| 6 | XJAF-02405 | Pipe-Injection No2 | |
| 7 | XJAF-02406 | Pipe-Injection No3 | |
| 8 | XJAF-02407 | Pipe-Injection No4 | |
| 9 | XJAF-02408 | Washer-Spherical | |
| 10 | XJAF-02409 | Pipe-Relief | |
| 11 | XJAF-02410 | Hose-Fuel | |
| 12 | XJAF-02571 | Block-Fuel Relief | |
| 13 | XJAF-02412 | Grand-Nozzle | |
| 14 | XJAF-02413 | Clamp-Pipe | |
| 15 | XJAF-02414 | O-Ring | |
| 16 | XJAF-00206 | Washer-Sealing | |
| 17 | XJAF-00426 | Gasket-Nozzle | |
| 18 | XJAF-00685 | Bolt-Eye | |
| 19 | XJAF-02415 | Bolt-Hexagon Socket | |
| 20 | XJAF-00730 | Bolt-W/Washer | |
| 21 | XJAF-00555 | Nut-Lock | |
| 22 | XJAF-01871 | Washer-Plain | |
| 23 | XJAF-02416 | Washer | |
| 25 | XJAF-02418 | Bolt-W/Washer | |
| 26 | XJAF-02419 | Washer-Sealing | |
| 27 | XJAF-02516 | Valve Assy-Check | |
| 28 | Connector | Connector | |
| 29 | SHIM-ADJUSTING | SHIM-ADJUSTING | |
| 30 | BALL-STEEL | BALL-STEEL | |
| 31 | SPRING | SPRING | |
| 32 | BOLT-EYE | BOLT-EYE | |
| 33 | XJAF-00371 | Gasket | |
| 34 | XJAF-02421 | Pipe-Fuel Inj/D | |
| 35 | XJAF-02422 | Bracket-Cover | |
| 36 | XJAF-02572 | Bolt-W/Washer | |
| 37 | XJAF-02424 | Bolt-Eye | |
| 50 | XJAF-02998 | Remover-Injector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
