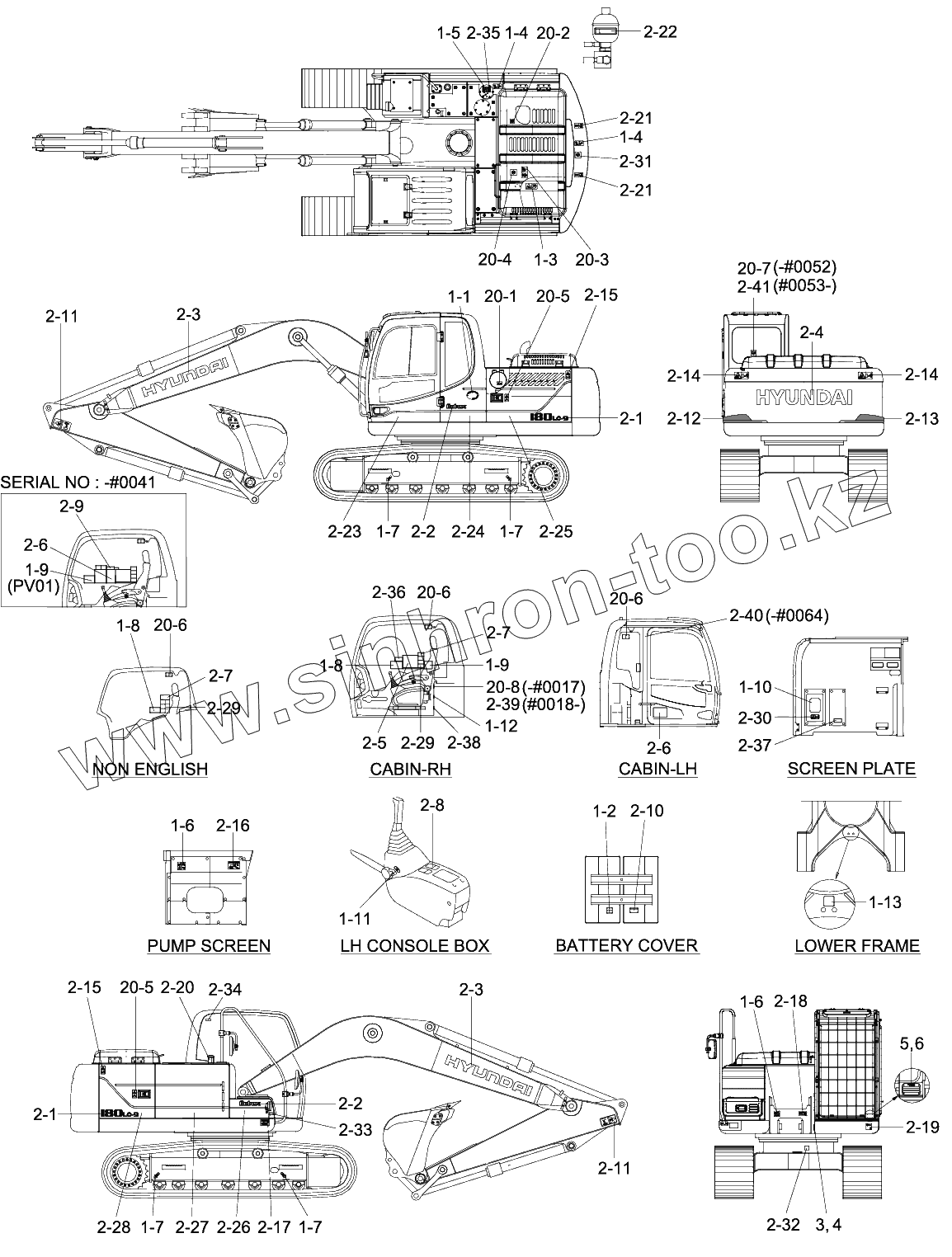

Каталог запасных частей к технике: Hyundai R180LC-9. DECALS
3
3
3
3
4
5
6
11
12
13
14
14
15
16
16
17
17
17
17
18
18
18
18
18
18
18
19
19
21
21
21
22
22
23
23
24
25
25
25
26
26
26
27
27
28
29
110
111
112
113
201
202
203
204
205
205
206
206
206
207
208
210
211
211
212
213
214
214
214
215
216
217
218
219
220
221
221
222
223
224
225
226
227
228
229
229
230
231
232
233
234
235
236
236
237
238
239
240
241
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 91Q5-00101 | 91Q5-00101 | Decal Kit | |
| 91Q4-00092 | 91Q4-00092 | Decal Kit-A/S | |
| 91Q5-20135 | 91Q5-20135 | Decal Kit | |
| 91Q5-20134 | 91Q5-20134 | Decal Kit | |
| 91Q5-20133 | 91Q5-20133 | Decal Kit | |
| 91Q5-20127 | 91Q5-20127 | Decal Kit | |
| 91Q5-20126 | 91Q5-20126 | Decal Kit | |
| 91Q5-20125 | 91Q5-20125 | Decal Kit | |
| 91Q5-20124 | 91Q5-20124 | Decal Kit | |
| 91Q5-20123 | 91Q5-20123 | Decal Kit | |
| 91Q5-20116 | 91Q5-20116 | Decal Kit | |
| 91Q5-20115 | 91Q5-20115 | Decal Kit | |
| 91Q5-20114 | 91Q5-20114 | Decal Kit | |
| 91Q5-20117 | 91Q5-20117 | Decal Kit | |
| 1 | 91Q5-00100 | Decal Kit(A) | |
| 2 | 91Q5-20113 | Decal Kit(B) | |
| 3 | 91E1-14110 | Decal-Pin Plate | |
| 3 | 91LM-14110 | PIN PLATE | |
| 3 | 91E1-14130 | Pin Plate | |
| 3 | 91LM-14130 | PIN PLATE | |
| 4 | 91EK-12010 | RIVET | |
| 5 | 91N6-01280 | FOPS FOG PLATE | |
| 6 | 91EK-12010 | RIVET | |
| 11 | 91E1-27110 | DECAL-L/EMISSION ENG | |
| 12 | 91N6-02120 | DECAL-BATT ACCIDENT | |
| 13 | 91N6-01121 | DECAL-RADIATOR CAP | |
| 14 | 91N6-03140 | DECAL-FALLING | |
| 15 | 91N6-03111 | DECAL-HYD OIL LUBRICAT | |
| 16 | 91N6-03130 | DECAL-H/PRESS HOSE | |
| 17 | 91N6-05110 | DECAL-SLING IDEOGRAM | |
| 18 | 91N6-08200 | DECAL-CNTL IDEOGRAM | |
| 18 | 91N6-07201 | DECAL-CNTL IDEOGRAM | |
| 18 | 91N6-07500 | Decal-Cntl Ideogram | |
| 18 | 91N6-08500 | Decal-Cntl Ideogram | |
| 18 | 93Q4-07500 | Decal-Cntl Ideogram | |
| 18 | 93Q4-08500 | Decal-Cntl Ideogram | |
| 19 | 91N6-07400 | DECAL-M/CNTL CAB | |
| 20 | 91Q4-00091 | Decal Kit-A/S | |
| 21 | 91Q5-10050 | Decal-Model Name | |
| 21 | 91Q5-10030 | Decal-Model Name | |
| 22 | 91Q6-17112 | DECAL-ROBEX LOGO | |
| 23 | 91N6-23100 | Decal-Hyundai Logo | |
| 24 | 91N6-23160 | DECAL-HYUNDAI LOGO | |
| 25 | 91Q5-07100 | Decal-Lifting Chart Kit | |
| 25 | 91Q5-06101 | Decal-Lifting Chart Kit | |
| 25 | 91Q5-05101 | Decal-Lifting Chart Kit | |
| 26 | 91Q5-10711 | Decal-S/Instruction | |
| 26 | 91Q5-10710 | Decal-S/Instruction | |
| 27 | 91Q6-07330 | DECAL-LOCKING CLAMP | |
| 28 | 91N6-07340 | Decal-Ideogram | |
| 29 | 91N6-07390 | Decal-Turbocharger | |
| 110 | 91N6-07410 | DECAL-M/CNTL PATTERN | |
| 111 | 92N6-07310 | DECAL-SAFETY LEVER | |
| 112 | 91N6-07272 | DECAL-AIRCON FILTER | |
| 113 | 91N6-05120 | DECAL-TIE | |
| 201 | 91N6-01102 | DECAL-A/CLEANER FILTER | |
| 202 | 91N6-01111 | DECAL-TURBO COVER | |
| 203 | 91N6-07121 | DECAL-SHEARING | |
| 204 | 91N6-07131 | DECAL-NO STEP | |
| 205 | 91N6-07112 | DECAL-STAY FIX | |
| 206 | 91Q6-07250 | DECAL-SAFETY FR WIN | |
| 207 | 91N6-07261 | Decal-Alternate Exit | |
| 208 | 91N6-07280 | Decal-Hammer | |
| 210 | 91LB-01350 | DECAL-ELECTRIC WELDING | |
| 211 | 91N6-06110 | Decal-Keep Clear-Att | |
| 212 | 91Q4-07030 | Decal-Reflecting, Lh | |
| 213 | 91Q4-07040 | Decal-Reflecting, Rh | |
| 214 | 91Q6-07010 | DECAL-KEEP CLEAR,RR | |
| 215 | 91Q6-07021 | DECAL-KEEP CLEAR,SIDE | |
| 216 | 91N6-03102 | DECAL-HYD OIL LEVEL | |
| 217 | 91N6-07141 | DECAL-TRANSPORTING | |
| 218 | 91N6-03121 | DECAL-R/GEAR GREASE | |
| 219 | 91N6-22110 | Decal-Noise Level/Lwa | |
| 220 | 91MJ-01140 | Decal-Fueling | |
| 221 | 91N6-04140 | Decal-Lifting Eye | |
| 222 | 91N6-03200 | DECAL-ACCUMULATOR | |
| 223 | 91Q6-07510 | DECAL-BAND,CAB FR | |
| 224 | 91Q6-07520 | DECAL-BAND,CAB RR | |
| 225 | 91Q5-07530 | Decal-S/Door Band, Lh | |
| 226 | 91Q4-07611 | Decal-Tool Box Band | |
| 227 | 91Q5-07620 | Decal-Tank Band | |
| 228 | 91Q5-07630 | Decal-S/Door Band, Rh | |
| 229 | 91Q4-07380 | Decal-Cabin Rh Pillar | |
| 230 | 91Q6-03210 | DECAL-RCV L/PATTERN | |
| 231 | 91N6-07131 | DECAL-NO STEP | |
| 232 | 91Q6-03220 | Decal-Swing Bearing | |
| 233 | 91MJ-02110 | Decal-Batt Position | |
| 234 | 91Q4-02200 | DECAL-BEACON LAMP | |
| 235 | 91Q6-03230 | DECAL-FUEL SHUT OFF | |
| 236 | 91Q4-07180 | Decal-Water Separator | |
| 236 | 91Q4-07920 | DECAL-CAUTION(W/S,T/C) | |
| 237 | 91Q4-15880 | Decal-Mcu Connector | |
| 238 | 91Q4-15890 | Decal-Ecm Connect-Cab | |
| 239 | 91N6-07280 | Decal-Hammer | |
| 240 | 91Q6-01281 | Decal-Rops Cabin | |
| 241 | 91Q6-07260 | DECAL-SAFETY RR WIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
