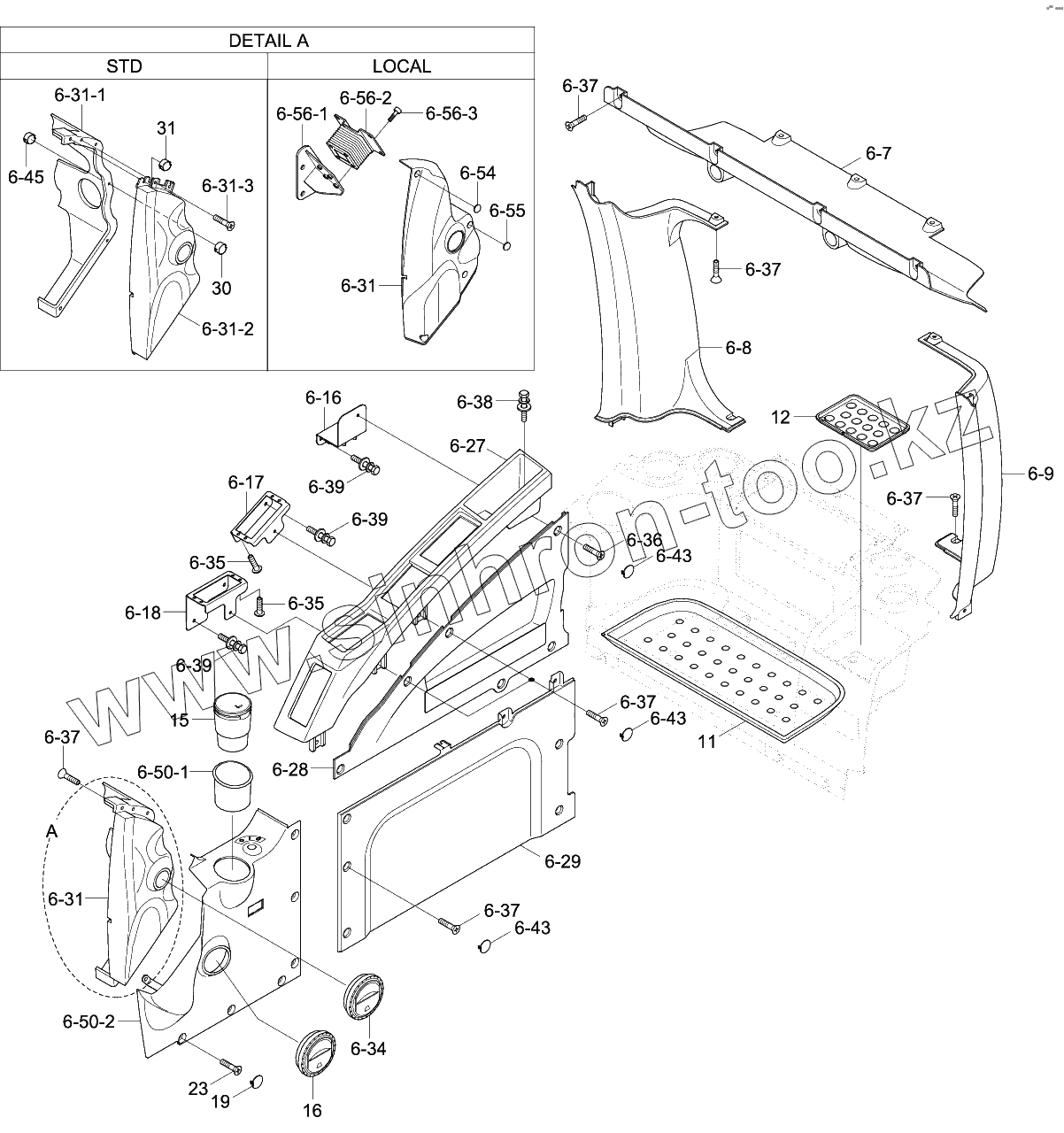

Каталог запасных частей к технике: Hyundai R180LC-9. CAB INTERIOR 2
6
11
12
15
16
19
30
31
67
68
69
616
616
617
617
618
618
627
628
629
631
631
634
634
635
635
636
637
637
637
637
637
637
637
638
639
639
639
643
643
643
645
654
655
6311
6312
6313
6501
6502
6561
6562
6563
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 6 | CabSubAssy | Cab Sub Assy | |
| 11 | 71Q6-22340 | COVER MAT-AIRCON | |
| 12 | 71Q6-22350 | COVER MAT-RADIO TRAY | |
| 15 | 71Q6-22410 | ASH-TRAY | |
| 16 | 71Q6-22390 | Nozzle-Air, Front | |
| 19 | 71Q6-22760GG | CAP-TRIM | |
| 30 | 71Q6-22771 | Cap-Wiper Motor | |
| 31 | 71Q6-23050 | Cap-Wiper Motor | |
| 67 | 71Q6-22250GG | COVER-SPEAKER | |
| 68 | 71Q6-22240GG | TRIM-PILLAR,RH | |
| 69 | 71Q6-22230GG | TRIM-PILLAR,LH | |
| 616 | 71Q6-21500 | Bracket-Tray | |
| 616 | 71Q6-21502 | BRACKET-TRAY | |
| 617 | 71Q6-21532 | BRACKET-REMOTE | |
| 617 | 71Q6-21530 | Bracket-Remote | |
| 618 | 71Q6-21550 | Bracket-Membrane | |
| 618 | 71Q6-21552 | BRACKET-MEMBRANE | |
| 627 | 71Q6-22141 | PANEL-SWITCH | |
| 628 | 71Q6-22800GG | TRIM ASSY-UPPER,RH | |
| 629 | 71Q6-22660GG | TRIM ASSY-LOWER,RH | |
| 631 | 71Q6-22581GG | Cover-Wiper Motor | |
| 634 | 71Q6-22390 | Nozzle-Air, Front | |
| 634 | 71Q6-23660 | NOZZLE-AIR, FRONT | |
| 635 | S002-05015B | SCREW-TRUS HEAD | |
| 636 | S002-06010B | SCREW-TRUS HEAD | |
| 637 | S002-06015B | SCREW-TRUS HEAD | |
| 638 | S035-061526 | BOLT-W/WASHER | |
| 639 | S035-081526 | BOLT-W/WASHER | |
| 643 | 71Q6-22760GG | CAP-TRIM | |
| 645 | 71Q6-23040 | Cap-Wiper Motor | |
| 650 | 71Q6-22980GG | TRIM-RH,FRONT LOW | |
| 654 | 71Q8-23050 | CAP-WIPER MOTOR(3) | |
| 655 | 71Q8-22770 | CAP-WIPER MOTOR | |
| 6311 | 71Q6-22091 | Cover(1)-Wiper Motor | |
| 6312 | 71Q6-22101 | Cover(2)-Wiper Motor | |
| 6313 | S002-06015B | SCREW-TRUS HEAD | |
| 6501 | 71Q6-22110GG | HOLDER-CUP | |
| 6502 | 71Q6-22080GG | TRIM-RH,FRONT LOW | |
| 6561 | 71Q8-22130 | BRACKET-CLUSTER | |
| 6562 | 71Q8-22151 | TILT BRACKET ASSY | |
| 6563 | S109-060156 | BOLT-SOCKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
