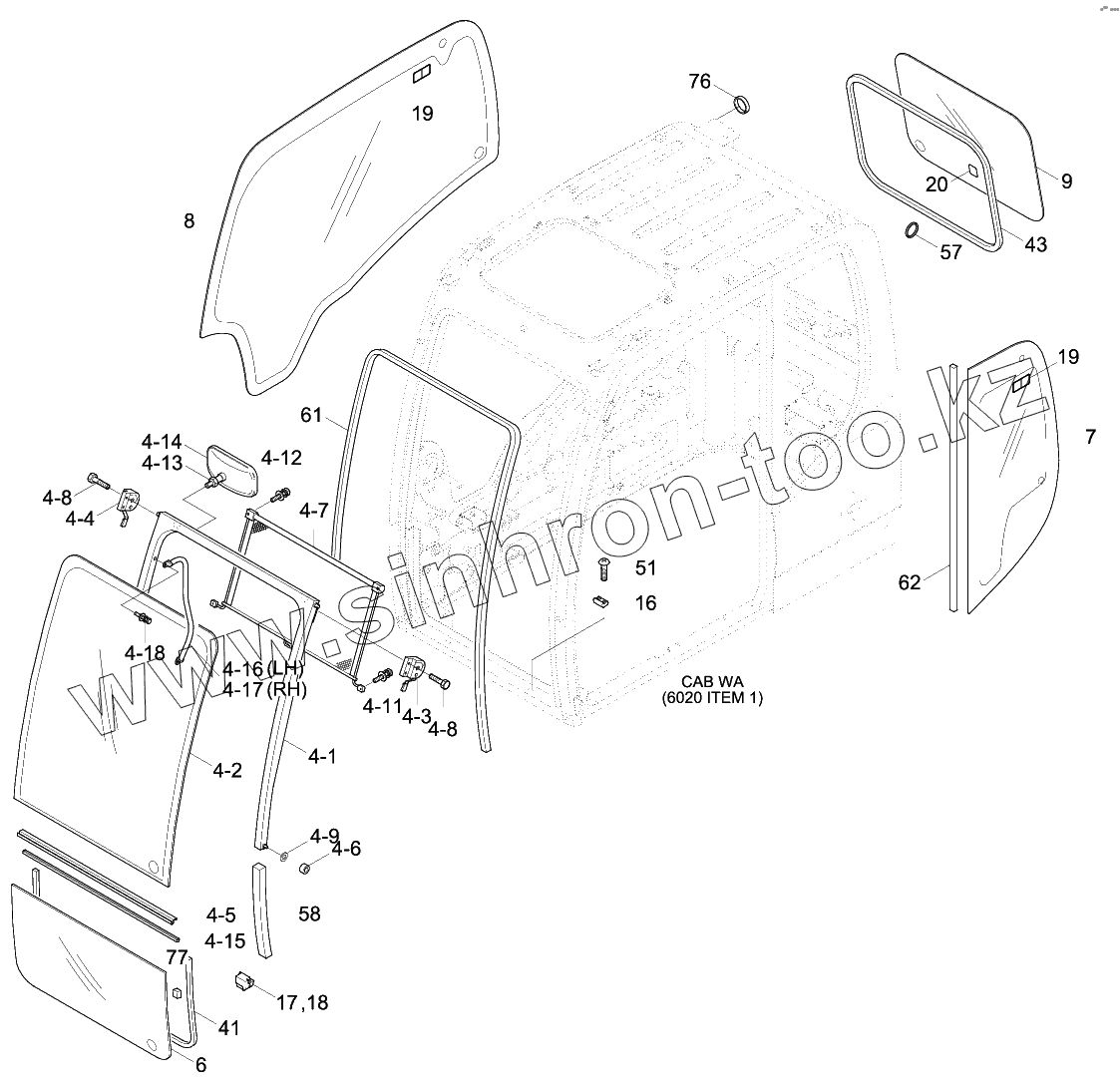

Каталог запасных частей к технике: Hyundai R180LC-9. CAB ASSY (3/4)
CabAssy
4
4
4
4
6
6
6
6
7
8
9
16
17
17
18
18
19
19
20
41
43
51
57
58
61
62
62
76
77
410
410
411
412
413
414
415
416
417
418
420
420
420
430
440
450
460
470
480
480
490
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| CabAssy | CabAssy | Cab Assy | |
| 4 | 71Q4-02400 | Sliding Door Assy | |
| 4 | 71Q4-02401 | SLIDING DOOR ASSY | |
| 4 | 71Q6-02401 | SLIDING DOOR ASSY | |
| 4 | 71Q6-02400 | Sliding Door Assy | |
| 6 | 71Q6-02710 | Glass-Fr/Bottom | |
| 6 | 71Q4-02711 | GLASS-FR/BOTTOM | |
| 6 | 71Q6-02711 | GLASS-FR/BOTTOM | |
| 6 | 71Q4-02710 | Glass-Fr/Bottom | |
| 7 | 71Q6-02721 | Glass-Lh/Rr | |
| 8 | 71Q6-02730 | Glass-Rh | |
| 9 | 71Q6-02740 | GLASS-RR | |
| 16 | 71N6-02880 | INSULATOR | |
| 17 | 72Q6-02900 | STOPPER-LH | |
| 17 | 71Q6-02900 | STOPPER-LH | |
| 18 | 72Q6-02910 | STOPPER-RH | |
| 18 | 71Q6-02910 | STOPPER-RH | |
| 19 | 91Q6-07250 | DECAL-SAFETY FR WIN | |
| 20 | 91N6-07261 | Decal-Alternate Exit | |
| 41 | S771-015000 | Weather Strip | |
| 43 | S781-124302 | SEAL-GLASS | |
| 51 | S141-050206 | SCREW-FLAT HD | |
| 57 | 71N6-03320 | RING | |
| 58 | 71Q6-02750 | SEAL | |
| 61 | 71Q6-03480 | SEAL-FRONT | |
| 62 | 71Q6-02630 | Weather Strip | |
| 62 | S778-009900 | WEATHER STRIP | |
| 76 | S880-132040 | Grommet | |
| 77 | 71Q6-03040 | SPONGE | |
| 410 | 71Q4-02411 | SLIDING DOOR WA | |
| 410 | 71Q6-02411 | SLIDING DOOR WA | |
| 411 | S131-042046 | SCREW-W/WASHER | |
| 412 | S131-041246 | SCREW-W/WASHER | |
| 413 | S204-081006 | NUT-HEX | |
| 414 | 71L1-3377 | MIRROR-ROOM | |
| 415 | 71Q6-03010 | SEAL | |
| 416 | 71Q6-02651 | HANDLE | |
| 417 | 71Q6-02474 | HANDLE | |
| 418 | S035-082526 | BOLT-W/WASHER | |
| 420 | 71Q4-02440 | Glass-Sliding Door | |
| 420 | 71Q6-02441 | GLASS-SLIDING DOOR | |
| 420 | 71Q6-02440 | Glass-Sliding Door | |
| 430 | 71Q6-02480 | LATCH-SLIDING, LH | |
| 440 | 71Q6-02490 | LATCH-SLIDING, RH | |
| 450 | 71Q6-03020 | Sash | |
| 460 | 71N6-03150 | ROLLER | |
| 470 | 71Q6-03581 | SUN VISOR ASSY | |
| 480 | S017-100156 | BOLT-HEX | |
| 490 | S403-101006 | Washer-Plain |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
