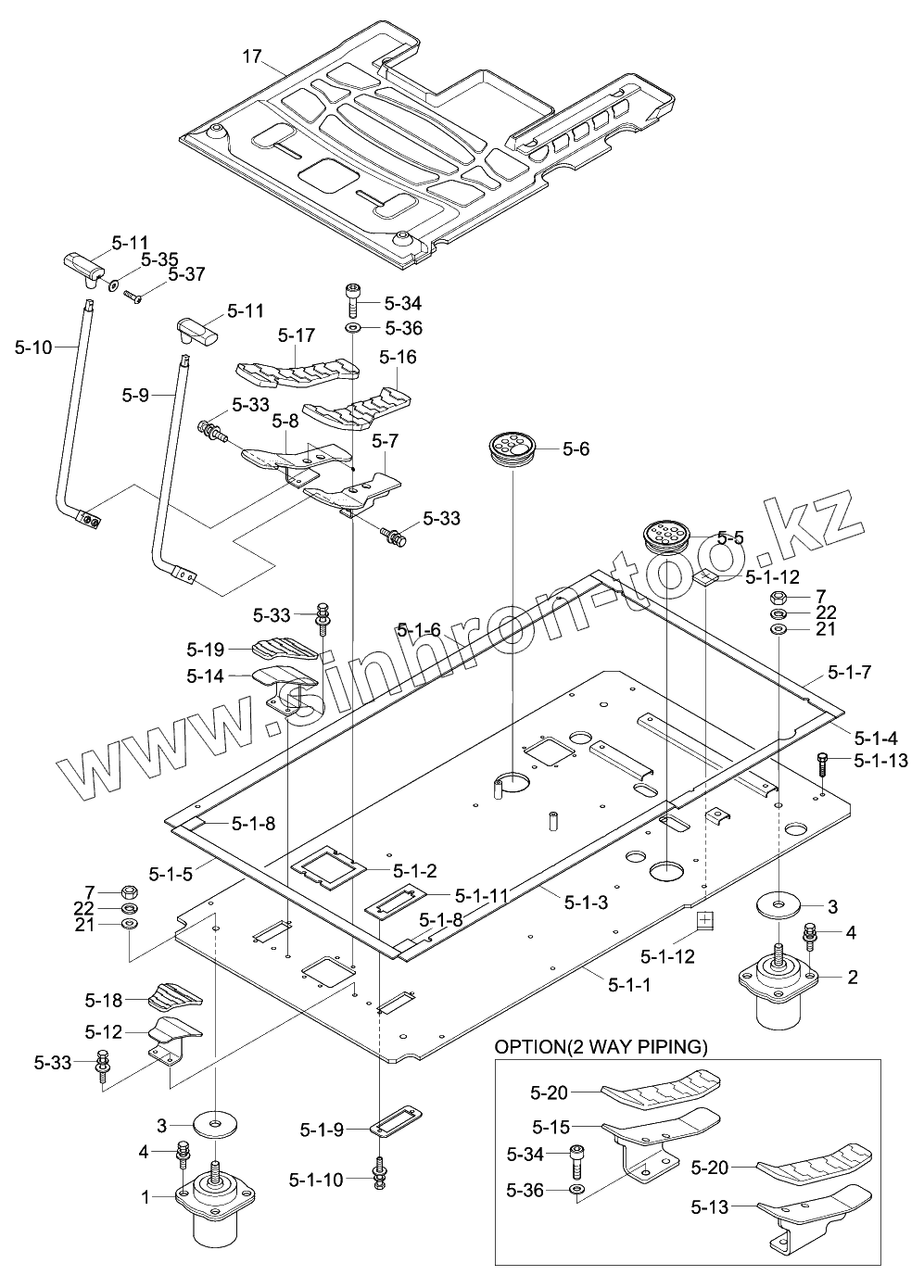

Каталог запасных частей к технике: Hyundai R180LC-9. BOTTOM PLATE MOUNTING
1
2
3
3
4
4
5
7
7
17
17
17
21
21
22
22
51
55
56
57
58
59
510
511
511
512
513
514
515
516
517
518
519
520
520
533
533
533
533
534
534
535
536
536
537
5110
5120
5130
5140
5150
5160
5170
5180
5180
5190
6110
6111
6112
6112
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| S017-120156 | S017-120156 | BOLT-HEX | |
| 1 | 71Q6-22730 | VISCOUS MOUNT | |
| 2 | 71Q6-22820 | VISCOUS MOUNT | |
| 3 | 71E9-10650-DA | WASHER | |
| 4 | S037-103026 | BOLT-W/WASHER | |
| 5 | BottomPlateSubAssy | Bottom Plate Sub Assy | |
| 7 | S205-16100B | NUT-HEX | |
| 17 | 71Q6-23020 | MAT-FLOOR | |
| 17 | 71Q6-23010 | MAT-FLOOR | |
| 17 | 71Q6-22360 | MAT-FLOOR | |
| 21 | S403-162006 | WASHER-PLAIN | |
| 22 | S411-160006 | WASHER-SPRING | |
| 51 | 71Q6-10101 | BOTTOM PLATE ASSY | |
| 55 | 71Q6-20990 | GROMMET-PILOT HOSE | |
| 56 | 71Q6-22960 | GROMMET-RH | |
| 57 | 71Q6-20500 | PEDAL WA-LH | |
| 58 | 71Q6-20700 | PEDAL WA-RH | |
| 59 | 71Q6-20600 | Travel Lever Wa-Lh | |
| 510 | 71Q6-20750 | Travel Lever Wa-Rh | |
| 511 | 71Q6-20630 | KNOB-TRAVEL | |
| 512 | 71Q6-20530 | FOOT REST WA-LH | |
| 513 | 71Q6-20560 | PEDAL WA-LH | |
| 514 | 71Q6-20730 | FOOT REST WA-RH | |
| 515 | 71Q6-22700 | PEDAL WA-RH | |
| 516 | 71Q6-20660 | RUBBER-PEDAL,LH | |
| 517 | 71Q6-20680 | RUBBER-PEDAL,RH | |
| 518 | 71Q6-20670 | RUBBER-FOOT REST,LH | |
| 519 | 71Q6-20690 | RUBBER-FOOT REST,RH | |
| 520 | 71Q6-22740 | RUBBER-PEDAL | |
| 533 | S037-102526 | BOLT-W/WASHER | |
| 534 | S109-100156 | Bolt-Socket | |
| 535 | S403-04100B | WASHER-PLAIN | |
| 536 | S403-10200B | WASHER-PLAIN | |
| 537 | S161-040256 | SCREW-CROSS R/ROUND | |
| 5110 | 71Q6-10170 | BOTTOM PLATE WA | |
| 5120 | 71Q6-10110 | PAD-RUBBER | |
| 5130 | 71Q6-10120 | PAD-RUBBER | |
| 5140 | 71Q6-10130 | PAD-RUBBER | |
| 5150 | 71Q6-10140 | PAD-RUBBER | |
| 5160 | 71Q6-10150 | PAD-RUBBER | |
| 5170 | 71Q6-10160 | PAD-RUBBER | |
| 5180 | 71Q6-22780 | PAD-RUBBER | |
| 5190 | 71Q6-22790 | COVER-PLATE | |
| 6110 | S037-102026 | BOLT-W/WASHER | |
| 6111 | 71Q6-10300 | PAD-RUBBER | |
| 6112 | 71Q6-10310 | SPONGE |
