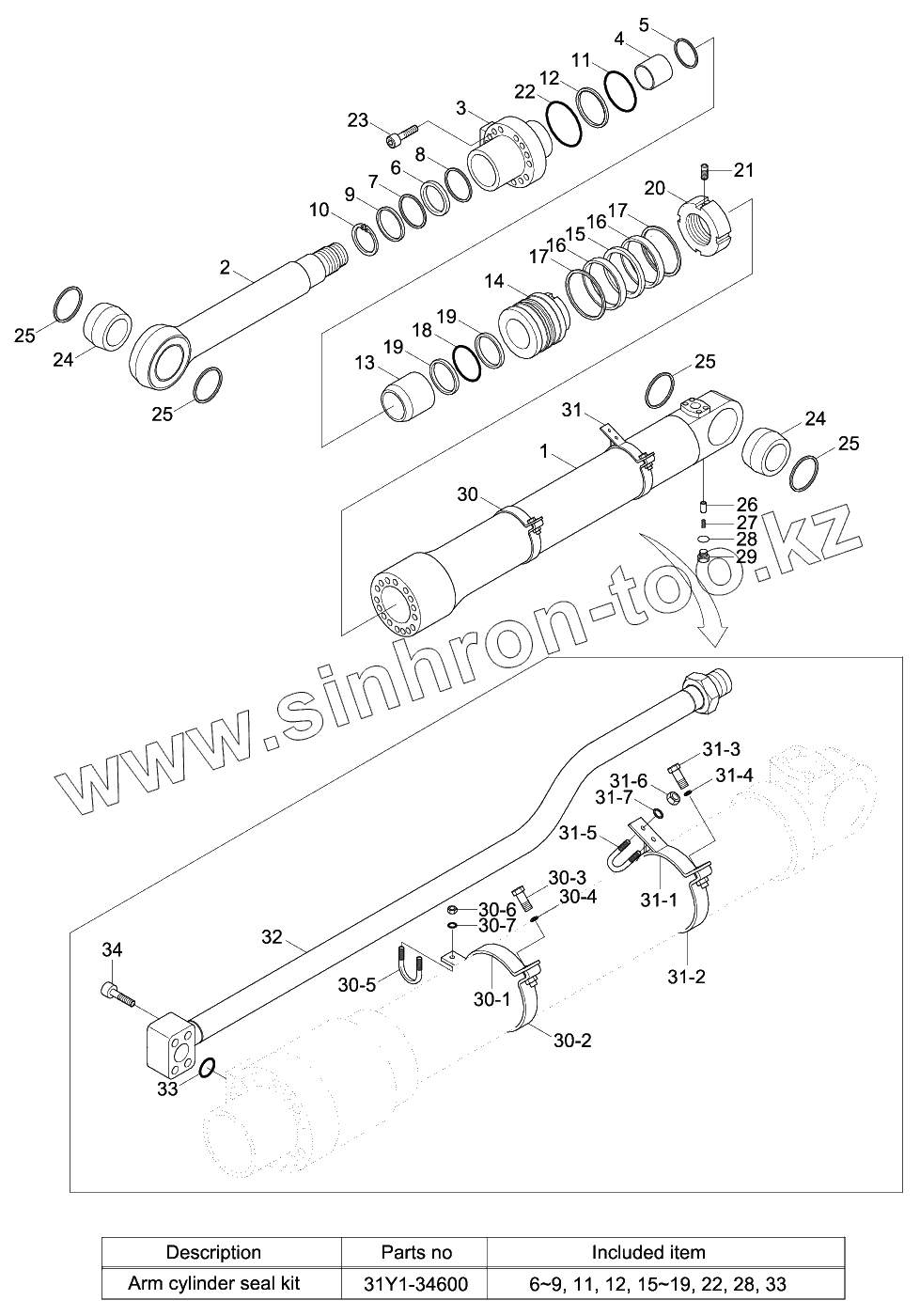

Каталог запасных частей к технике: Hyundai R180LC-9. ARM CYLINDER
31Y1-34600
31Q5-50132
31Y1-34412
1
2
3
4
5
6
6
7
8
9
9
10
11
11
12
12
13
14
15
15
16
16
17
17
18
19
19
19
20
21
22
22
23
24
24
24
25
25
25
25
26
26
27
28
28
29
30
31
32
33
33
34
301
302
303
304
305
306
307
307
311
312
313
313
314
314
315
316
317
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Y1-34600 | 31Y1-34600 | Seal Kit | |
| 31Q5-50132 | 31Q5-50132 | Arm Cylinder Assy | |
| 31Y1-34412 | 31Y1-34412 | Arm Cyl Sub Assy | |
| 1 | 31Y1-34421 | Tube Assy | |
| 2 | 31Y1-34472 | Rod Assy | |
| 3 | 31Y1-34511 | Gland | |
| 4 | S732-085030 | Bushing-Dd2 | |
| 5 | Y191-092000 | Ring-Snap | |
| 6 | Y220-085013 | Seal-Rod | |
| 7 | Y180-085020 | Ring-Back Up | |
| 8 | Y240-085012 | Ring-Buffer | |
| 9 | Y110-085011 | Wiper-Dust | |
| 10 | Y190-099000 | Ring-Snap | |
| 11 | S632-115004 | O-Ring | |
| 12 | 31YC-CG115 | Ring-Back Up | |
| 13 | 31YC-28020 | Ring-Cushion | |
| 14 | 31Y1-28940 | Piston | |
| 15 | Y420-120000 | Seal-Piston | |
| 16 | Y310-120203 | Ring-Wear | |
| 17 | Y440-120002 | Ring-Dust | |
| 18 | S632-060004 | O-Ring | |
| 19 | S642-060003 | Ring-Back Up | |
| 20 | 31YC-68030 | Nut-Lock | |
| 21 | S114-080144 | Screw-Set | |
| 22 | S632-120004 | O-RING | |
| 23 | S109-160754 | Bolt-Socket | |
| 24 | 61Q6-98810 | Bushing-Pin | |
| 24 | 61QH-72610 | Bushing-Pin | |
| 25 | Y020-070000 | Seal-Dust, Dli, Kpu | |
| 26 | 31YC-2A080 | Valve-Check | |
| 26 | 31YC-2A100 | Valve-Check | |
| 27 | 31YC-99071 | SPRING-COIL | |
| 28 | S631-014004 | O-RING | |
| 29 | P220-110103 | PLUG-HEX | |
| 30 | 31Y1-34530 | Band Assy-R | |
| 31 | 31Y1-34550 | Band Assy-B | |
| 32 | 31Y1-34581 | Pipe Assy-R | |
| 33 | Y171-019004 | O-RING | |
| 34 | S107-100454 | Bolt-Socket | |
| 301 | 31Y1-34540 | Band Sub Assy-R | |
| 302 | 31YC-31480 | Band | |
| 303 | S011-100352 | BOLT-HEX | |
| 304 | S411-100002 | WASHER-SPRING | |
| 305 | S070-052738 | U-Bolt | |
| 306 | S205-101002 | NUT-HEX | |
| 307 | S411-100002 | WASHER-SPRING | |
| 307 | S411-100006 | WASHER-SPRING | |
| 311 | 31Y1-34560 | Band Sub Assy-B | |
| 312 | 31Y1-34570 | Band Sub Assy | |
| 313 | S011-100356 | Bolt-Hex | |
| 313 | S011-100352 | BOLT-HEX | |
| 314 | S411-100006 | WASHER-SPRING | |
| 314 | S411-100002 | WASHER-SPRING | |
| 315 | S070-052738 | U-Bolt | |
| 316 | S205-101002 | NUT-HEX | |
| 317 | S411-100002 | WASHER-SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
