81N5-15010GG
2
3
4
22
23
24
25
26
27
28
29
210
211
212
212
213
2111
2111
2112
2113

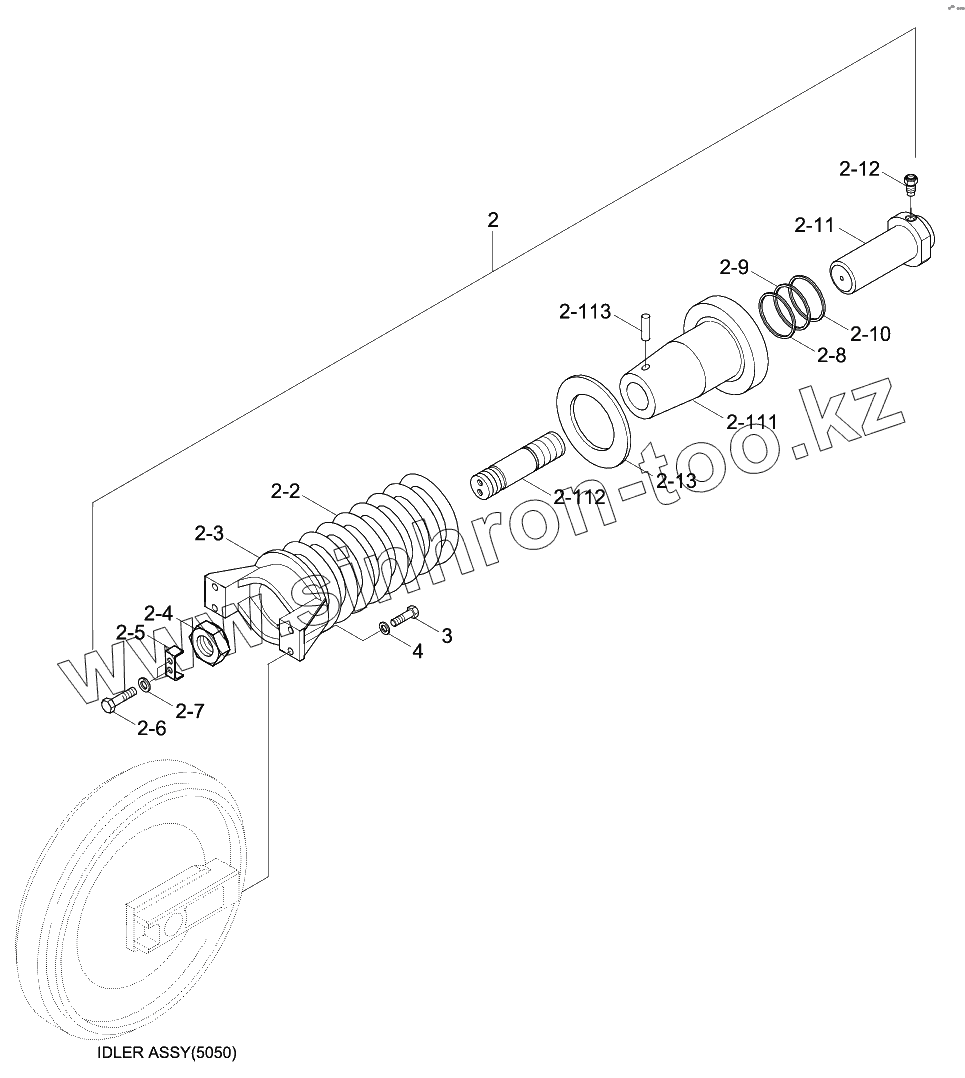

Позиция на иллюстрации
Заводской номер детали
Название детали
81N5-15010GG
81N5-15010GG
Adjust Comp Assy
2
81N5-14010GG
Tension Cyl Assy
3
S017-160506
BOLT-HEX
4
S411-160006
WASHER-SPRING
21
81N5-14301
Body Assy
21
81N5-14300
Body Assy
22
81N5-14120
Spring
23
81N6-14130
Bracket
24
81EM-14121
Nut-Lock
25
81EM-14130
Plate-Lock
26
S018-120256
Bolt-Hex
27
S411-120006
WASHER-SPRING
28
81E1-3104
PACKING-ROD
29
81E1-3204
RING-BACK UP
210
81E1-3304
SEAL-DUST
211
81EM-14210
Pin-Spring
212
81N6-14240
VALVE-GREASE
212
E181-2013
Valve-Grease
213
81N5-14220
Spacer
2111
81N6-14100
Body-T/Cyl
2111
81N6-14101
Body-T/Cyl
2112
81N5-14110
Tie-Bar
2113
81N6-14210
Rod
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
