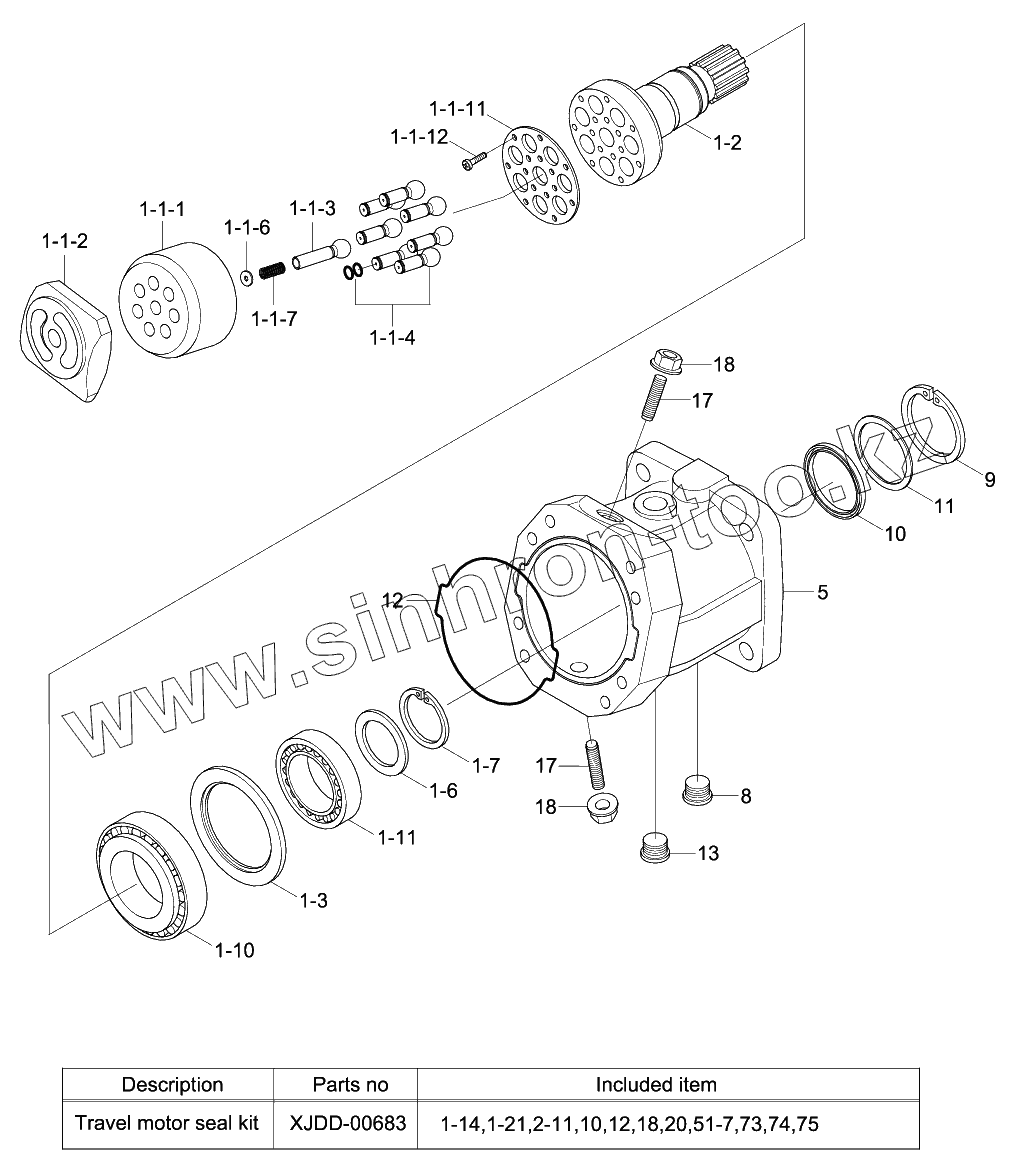

Каталог запасных частей к технике: Hyundai R170W-9S. TRAVEL MOTOR (1/2)

Тип техники

Марка

Модель

Схема

1-1-1

1-1-11

1-1-12

1-1-2

1-1-3

1-1-4

1-1-6

1-1-7

1-10

1-11

1-2

1-3

1-6

1-7

11

13

17

17

5

8

9

XJDD-00683

10

10

12

12

18

18

18

Позиция на иллюстрации	Заводской номер детали		Название детали
31N5-43002	31N5-43002		TRAVEL MOTOR
CONTROLPART	CONTROLPART		CONTROL PART
BALANCEVALVE	BALANCEVALVE		COUNTER BALANCE VALVE
1	XJDD-00889		ROTARY GROUP
1-1	XJDD-00899		ROTARY-HYD SECTION
1-1-1	XJDD-00914		CYLINDER
1-1-11	XJDD-00927		PLATE-RETAINING
1-1-12	XJDD-00928		SCREW-PAN HEAD
1-1-2	XJDD-00915		CONTROL LENS
1-1-3	XJDD-00916		PIN-CENTER
1-1-4	XJDD-00917		PISTON ASSY
1-1-6	XJDD-00920		SHIM-ADJUST
1-1-6	XJDD-00921		SHIM-ADJUST
1-1-6	XJDD-00922		SHIM-ADJUST
1-1-6	XJDD-00923		SHIM-ADJUST
1-1-6	XJDD-00924		SHIM-ADJUST
1-1-6	XJDD-00925		SHIM-ADJUST
1-1-7	XJDD-00926		SPRING-PRESSURE
1-10	XJDD-00912		BEARING-ROLLER
1-11	XJDD-00913		BEARING-ROLLER
1-2	XJDD-00900		SHAFT-DRIVE
1-3	XJDD-00901		SHIM
1-6	XJDD-00902		PLATE-BACK UP
1-6	XJDD-00903		PLATE-BACK UP
1-6	XJDD-00904		PLATE-BACK UP
1-6	XJDD-00905		PLATE-BACK UP
1-6	XJDD-00906		PLATE-BACK UP
1-6	XJDD-00907		PLATE-BACK UP
1-6	XJDD-00908		PLATE-BACK UP
1-6	XJDD-00909		PLATE-BACK UP
1-6	XJDD-00910		PLATE-BACK UP
1-7	XJDD-00911		RING-RETAINING
11	XJDD-00895		PLATE-BACK UP
13	XJDD-00892		SCREW-LOCKING
17	XJDD-00897		PIN-THREADED
5	XJDD-00891		HOUSING
8	XJDD-00892		SCREW-LOCKING
9	XJDD-00893		RING-RETAINING
XJDD-00683	XJDD-00683		Seal Kit
10	XJDD-00894		SEAL RING-SHAFT
12	XJDD-00896		O-RING
18	XJDD-00898		NUT-SEAL LOCK

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
