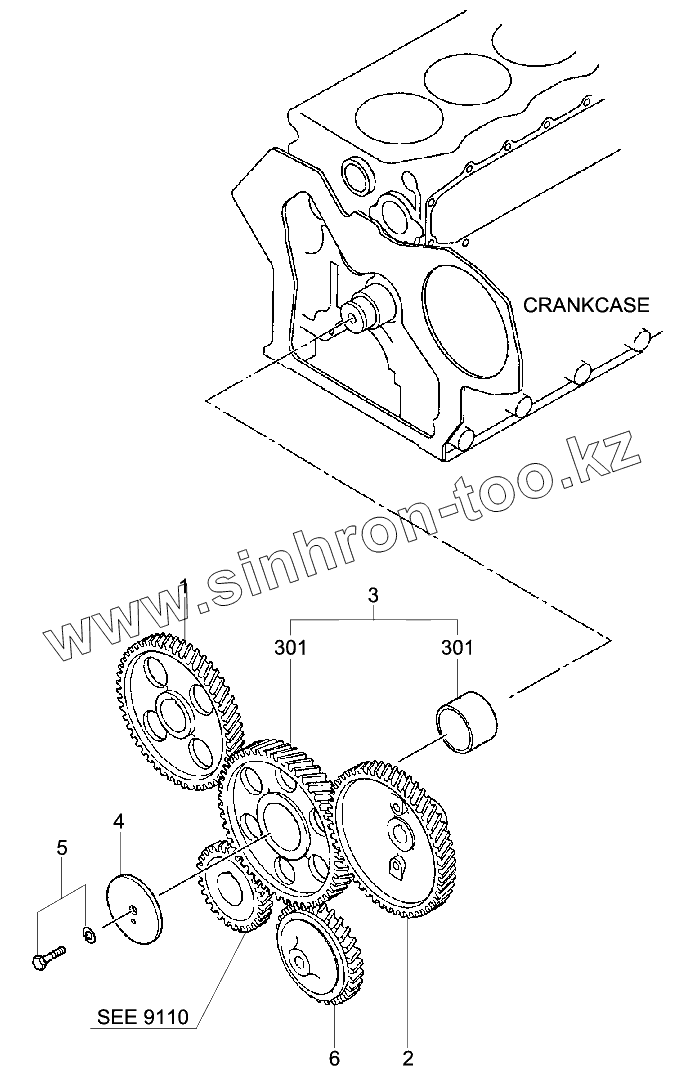

Каталог запасных частей к технике: Hyundai R170W-9S. TIMING GEAR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING ENGINE CONTROL SYSTEM AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT AIR CONDITIONER UNIT (SEMI AUTO) HEATER UNIT (SEMI AUTO) PRE HEATING GROUP RH ELECTRIC LH ELECTRIC BOOM ELECTRIC (STD) BOOM ELECTRIC (ADJUST BOOM) ENGINE ELECTRIC ELECTRIC BOX CAB ELECTRIC 1 CAB ELECTRIC 2 CABIN ROOM ELECTRIC CLUSTER (TYPE 1) CLUSTER (TYPE 2) BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX AIR COMPRESSOR AIR COMPRESSOR ELECTRIC PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING (TRAVEL) UPPER HYD PIPING 1 (ADJUST BOOM) UPPER HYD PIPING 2 (ADJUST BOOM) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (BOTTOM 1) PILOT HYD PIPING (BOTTOM 2) PILOT HYD PIPING (BASE 1, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 2, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 3, CLUSTER TYPE 1) PILOT HYD PIPING (BASE 1, CLUSTER TYPE 2) PILOT HYD PIPING (BASE 2, CLUSTER TYPE 2) PILOT HYD PIPING (BASE 3, CLUSTER TYPE 2) PILOT HYD PIPING (4 OUTRIGGER) POWER TRAIN HYD PIPING 1 POWER TRAIN HYD PIPING 2 POWER TRAIN HYD PIPING 3 POWER TRAIN HYD PIPING 4 LOWER HYD PIPING 1 LOWER HYD PIPING 2 LOWER HYD PIPING (REAR BLADE, -#0066) LOWER HYD PIPING (REAR BLADE, #0067-) LOWER HYD PIPING (FRONT BLADE, #0067-) LOWER HYD PIPING (2-OUTRIGGER, -#0066) LOWER HYD PIPING (2-OUTRIGGER, #0067-) LOWER HYD PIPING 1 (F/OUT, R/BLD, -#0066) LOWER HYD PIPING 1 (F/OUT, R/BLD, #0067-) LOWER HYD PIPING 2 (F/OUT, R/BLD, -#0066) LOWER HYD PIPING 2 (F/OUT, R/BLD, #0067-) LOWER HYD PIPING 1 (4-OUTRIGGE, -#0066) LOWER HYD PIPING 1 (4-OUTRIGGER, #0067-) LOWER HYD PIPING 2 (4-OUTRIGGER, -#0066) LOWER HYD PIPING 2 (4-OUTRIGGER, #0067-) LOWER HYD PIPING 1 (F/BLD, R/OUT, -#0066) LOWER HYD PIPING 1 (F/BLD, R/OUT, #0067-) LOWER HYD PIPING 2 (F/BLD, R/OUT, -#0066) LOWER HYD PIPING 2 (F/BLD, R/OUT, #0067-) LOWER HYD PIPING 1 (F/BLD, R/BLD, -#0066) LOWER HYD PIPING 1 (F/BLD, R/BLD, #0067-) LOWER HYD PIPING 2 (F/BLD, R/BLD, -#0066) LOWER HYD PIPING 2 (F/BLD, R/BLD, #0067-) LOWER HYD PIPING (FRONT BLADE) BOOM HYD PIPING (5.1M, STD) BOOM HYD PIPING (ADJUST BOOM) BOOM GREASE LUB SYSTEM (5.1M, STD) BOOM GREASE LUB SYSTEM (ADJUST BOOM) BOOM SAFETY LOCK SYSTEM QUICK CLAMP HYD PIPING ARM HYD PIPING ARM HYD PIPING (3.1M, LONG) ARM SAFETY LOCK SYSTEM ATTACH PIPING KIT (S & D/ACTING) S/ACTING MAIN PIPING KIT (CLUSTER TYPE 1) S/ACTING MAIN PIPING KIT (ADJUST BOOM) S/ACTING MAIN PIPING KIT (CLUSTER TYPE 2) D/ACT MAIN PIPING KIT 1 (CLUSTER TYPE 1) D/ACT MAIN PIPING KIT 2 (CLUSTER TYPE 1) D/ACTING MAIN PIPING KIT 1 (ADJUST BOOM) D/ACTING MAIN PIPING KIT 2 (ADJUST BOOM) D/ACT MAIN PIPING KIT (CLUSTER TYPE 2) SINGLE PEDAL (DOUBLE ACTING) MAIN PUMP REGULATOR GEAR PUMP MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR SWING REDUCTION GEAR REMOTE CONTROL LEVER DOZER CONTROL LEVER ACCELERATOR PEDAL (STD) ACCELERATOR PEDAL (2 WAY, OPTION) TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2) COUNTER BALANCE VALVE TURNING JOINT TURNING JOINT SUB BOOM CYLINDER BOOM CYLINDER (ADJUST BOOM) ARM CYLINDER BUCKET CYLINDER DOZER BLADE CYLINDER OUTRIGGER CYLINDER ADJUST CYLINDER SOLENOID VALVE (-#0146) SOLENOID VALVE (CLUSTER TYPE1,2) STEERING VALVE TRAVEL CONTROL VALVE BRAKE SUPPLY VALVE BRAKE VALVE QUICK CLAMP (HOOK TYPE 1, -#0441) QUICK CLAMP (CLOSE TYPE 1, -#0441) QUICK CLAMP (HOOK TYPE 2, -#0441) QUICK CLAMP (CLOSE TYPE 2, -#0441) QUICK CLAMP CYLINDER (-#0441) QUICK CLAMP (HOOK TYPE, #0442-) QUICK CLAMP (CLOSED TYPE, #0442-) BREAKER ASSY (1/2) BREAKER ASSY (2/2) BREAKER AUTO GREASE UNIT (OPT) BREAKER CENTRAL GREASE SUPPLY UNIT (OPT) POWER TRAIN MOUNTING PROPELLER SHAFT (-#0066) PROPELLER SHAFT (#0067-) OSCILLATING CYLINDER FRONT AXLE INPUT GROUP (-#0425) FRONT AXLE DIFFERENTIAL (-#0425) FRONT AXLE CASING (-#0425) FRONT AXLE JOINT HOUSING (-#0425) FRONT AXLE OUTPUT GROUP (-#0425) FRONT AXLE STEERING GEAR (-#0425) FRONT AXLE UNIVERSAL JOINT (-#0425) REAR AXLE INPUT GROUP (-#0425) REAR AXLE DIFFERENTIAL (-#0425) REAR AXLE CASING (-#0425) REAR AXLE HUB CARRIER (-#0425) REAR AXLE OUTPUT GROUP (-#0425) TRANSMISSION INPUT HOUSING TRANSMISSION HOUSING TRANSMISSION MULTI-DISC BRAKE TRANSMISSION COUPLING TRANSMISSION PLANETARY DRIVE TRANSMISSION OUTPUT GROUP TRANSMISSION GEAR SHIFT SENSOR TRANSMISSION OIL PIPE FRONT AXLE INPUT GROUP (#0426-) FRONT AXLE DIFFERENTIAL (#0426-) FRONT AXLE CASING (#0426-) FRONT AXLE JOINT HOUSING (#0426-) FRONT AXLE OUTPUT GROUP (#0426-) FRONT AXLE STEERING GEAR (#0426-) FRONT AXLE UNIVERSAL JOINT (#0426-) REAR AXLE INPUT GROUP (#0426-) REAR AXLE DIFFERENTIAL (#0426-) REAR AXLE CASING (#0426-) REAR AXLE HUB CARRIER (#0426-) REAR AXLE OUTPUT GROUP (#0426-) CAB MOUNTING CAB ASSY (1/4) CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) SEAT BASE ASSY SEAT (STD) SEAT (SUSPENSION, HEATED) STORAGE BOX ASSY BOTTOM PLATE MOUNTING STEERING COLUMN (CLUSTER TYPE 1) STEERING COLUMN (CLUSTER TYPE 2) COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & FENDER SWING RING GREASE LUB SYSTEM DOZER BLADE-REAR DOZER BLADE-FRONT OUTRIGGER MOUNTING-FRONT OUTRIGGER MOUNTING-REAR BOOM MOUNTING (5.1M, STD) BOOM MOUNTING (ADJUST BOOM) BOOM (5.1M, STD) ADJUST BOOM ARM BUCKET CONTROL GROUP BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (4 TEETH) BUCKET (6 TEETH) BUCKET (0.69M3 SAE HEAPED, HEAVY DUTY) BUCKET (0.75M3 SAE HEAPED D/CLEANING) TOOLS HCE-DT KIT DECALS MANUALS CYLINDER HEAD VALVE MECHANISM ROCKER COVER & BREATHER CAMSHAFT CRANKCASE ASSY MAIN BEARING TIMING GEAR CASE FLYWHEEL HOUSING OIL PAN PISTON & CONNECTING ROD CRANKSHAFT & FLYWHEEL TIMING GEAR INLET & EXHAUST SYSTEM TURBOCHARGER OIL PUMP & OIL STRAINER OIL PIPE OIL COOLER OIL FILTER COOLING SYSTEM FUEL INJECTION PUMP GENERAL FEED PUMP FUEL SYSTEM NOZZLE AUTOMATIC TIMER FUEL FILTER STARTER ALTERNATOR GENERAL ALTERNATOR GASKET KIT CONTROL SYSTEM

1

2

3

4

5

6

301

302

Позиция на иллюстрации	Заводской номер детали		Название детали
1	32A23-01100		GEAR-CAMSHAFT
2	32A23-12401		GEAR-INJECTION PUMP
3	32A23-03040		IDLER ASSY-GEAR
4	34323-00801		PLATE-THRUST
5	F1805-10020		BOLT-W/WASHER
6	32A35-12101		GEAR-OIL PUMP
301	BUSHING-IDLER		BUSHING-IDLER
302	GEAR-IDLER		GEAR-IDLER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
