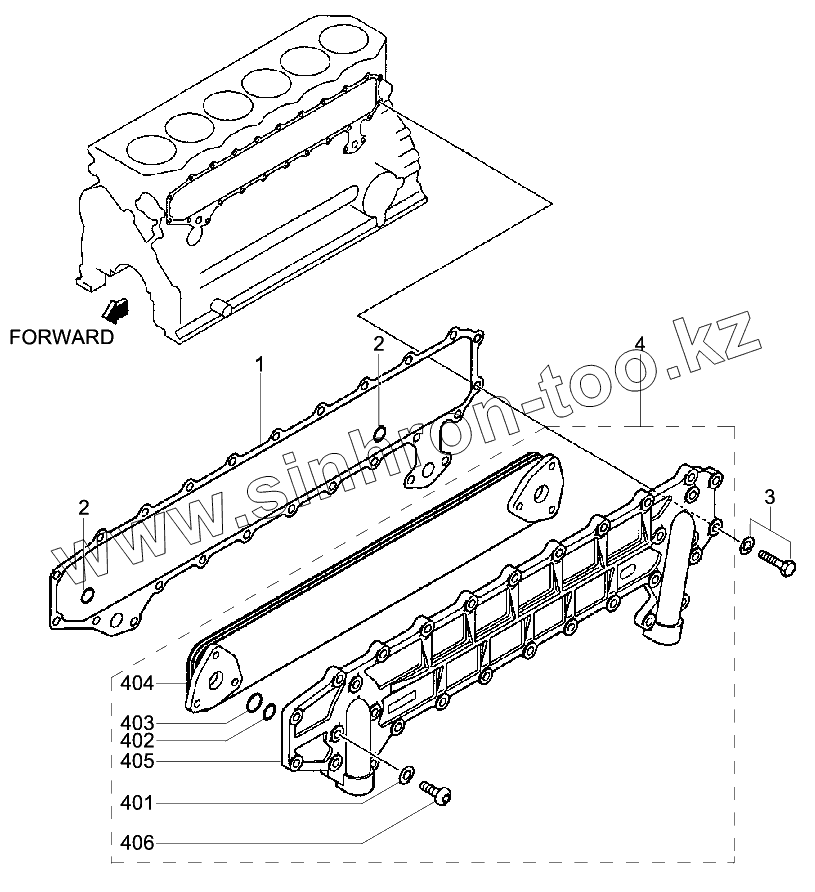

OIL COOLER
OIL FILTER
COOLING SYSTEM
FUEL INJECTION PUMP GENERAL
FEED PUMP
FUEL SYSTEM
NOZZLE
AUTOMATIC TIMER
FUEL FILTER
STARTER
ALTERNATOR GENERAL
ALTERNATOR
GASKET KIT
CONTROL SYSTEM
1
2
2
3
4
401
402
403
404
405
406
Позиция на иллюстрации
Заводской номер детали
Название детали
1
32B39-00800
GASKET-OIL COOLER
2
F3150-02000
O-RING
3
F1805-08025
BOLT-W/WASHER
4
32B39-00011
OIL COOLER ASSY
401
F4202-08000
GASKET
402
05507-00280
O-RING
403
05507-00400
O-RING
404
32B39-00100
ELEMENT ASSY
405
32B39-00201
CASE ASSY
406
32B39-00501
BOLT-OIL COOLER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
