Каталог запасных частей к технике: Hyundai R170W-9S. LOWER HYD PIPING (FRONT BLADE)
1
4
4
5
6
7
8
8
10
10
11
11
12
12
13
14
16
16
16
18
18
19
19
20
20
20
20
20
20
21
22
22
23
23
23
23
23
23
24
24
24
25
25
26
26
26
26
26
26
26
27
27
27
27
27
27
27
27
28
28
28
28
28
28
28
29
30
31
31
32
34
35
36
36
37
37
38
38
39
39
40
40
41
42

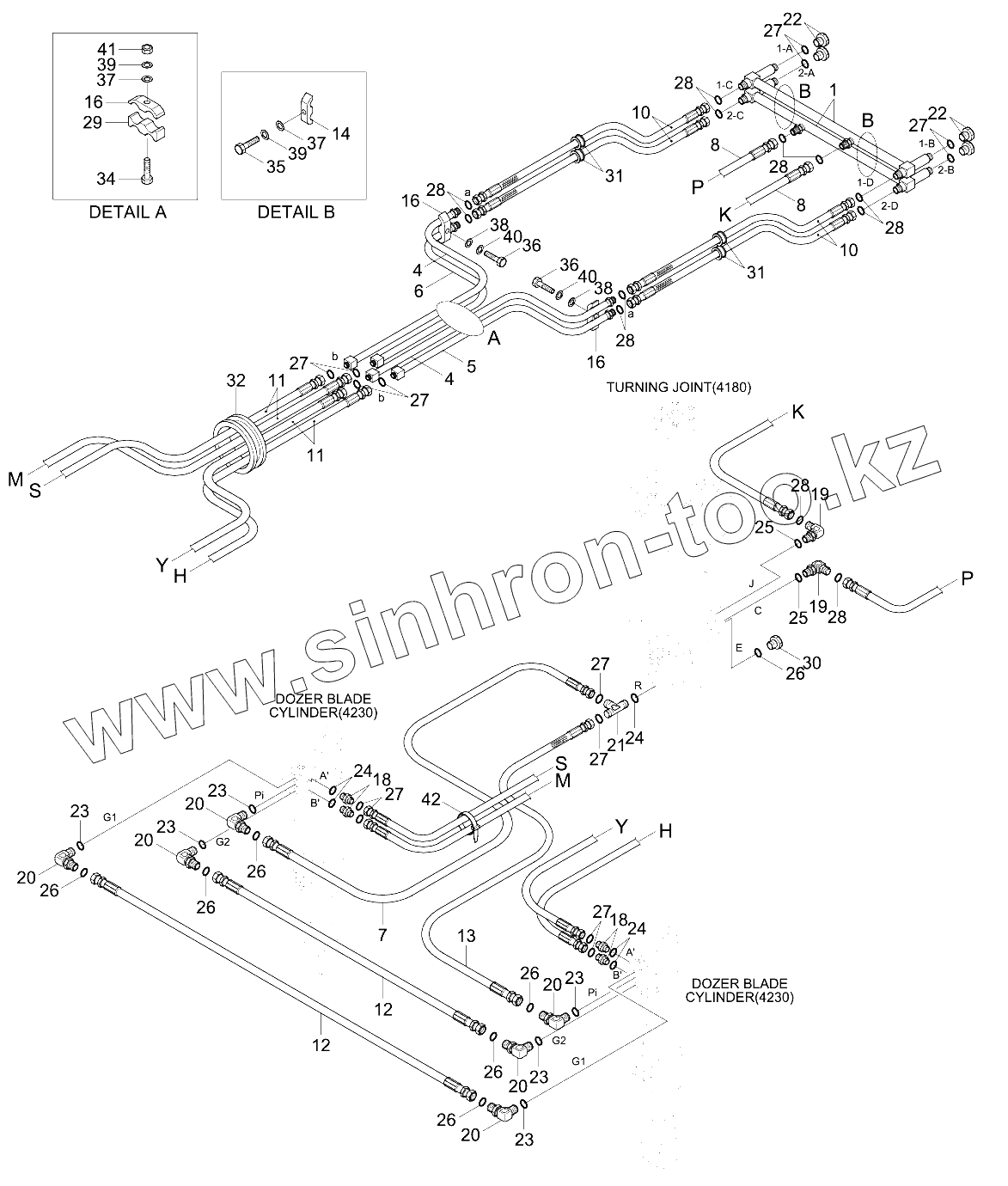

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 31Q4-70311 | Pipe Assy | |
| 4 | 31Q5-70330 | PIPE ASSY | |
| 5 | 31Q5-70340 | PIPE ASSY | |
| 6 | 31Q5-70350 | PIPE ASSY | |
| 7 | P913-044053 | Hose Assy-Orfs 0x0 | |
| 8 | P933-089012 | HOSE ASSY-ORFS 0X90 | |
| 10 | P913-089029 | Hose Assy-Orfs 0x0 | |
| 11 | P913-069018 | Hose Assy-Orfs 0x0 | |
| 12 | P913-049014 | Hose Assy-Orfs 0x0 | |
| 13 | P933-044054 | Hose Assy-Orfs 0x90 | |
| 14 | 34EA-10250 | Clamp-Pipe | |
| 16 | 31EE-50180 | Clamp Assy | |
| 18 | X500-110002 | CONNECTOR-ORFS | |
| 19 | X500-110003 | CONNECTOR-ORFS | |
| 20 | X520-110001 | ELBOW-90,ORFS | |
| 21 | X820-065151 | Tee-R/Type, Orfs | |
| 22 | X710-100103 | CAP-HYD,ORFS | |
| 23 | S631-011004 | O-RING | |
| 24 | S631-014004 | O-RING | |
| 25 | S631-018004 | O-RING | |
| 26 | S621-011001 | O-RING | |
| 27 | S621-012001 | O-RING | |
| 28 | S621-014001 | O-RING | |
| 29 | 31E4-31430 | Spacer-Clamp | |
| 30 | P220-110104 | Plug-Hex | |
| 31 | S760-102200 | GROMMET | |
| 32 | S760-091414 | Grommet | |
| 34 | S017-101006 | Bolt-Hex | |
| 35 | S017-100606 | Bolt-Hex | |
| 36 | S017-120606 | Bolt-Hex | |
| 37 | S403-101006 | Washer-Plain | |
| 38 | S403-121006 | Washer-Plain | |
| 39 | S411-100006 | WASHER-SPRING | |
| 40 | S411-120006 | WASHER-SPRING | |
| 41 | S205-101006 | NUT-HEX | |
| 42 | S552-102370 | Clamp-Band |
