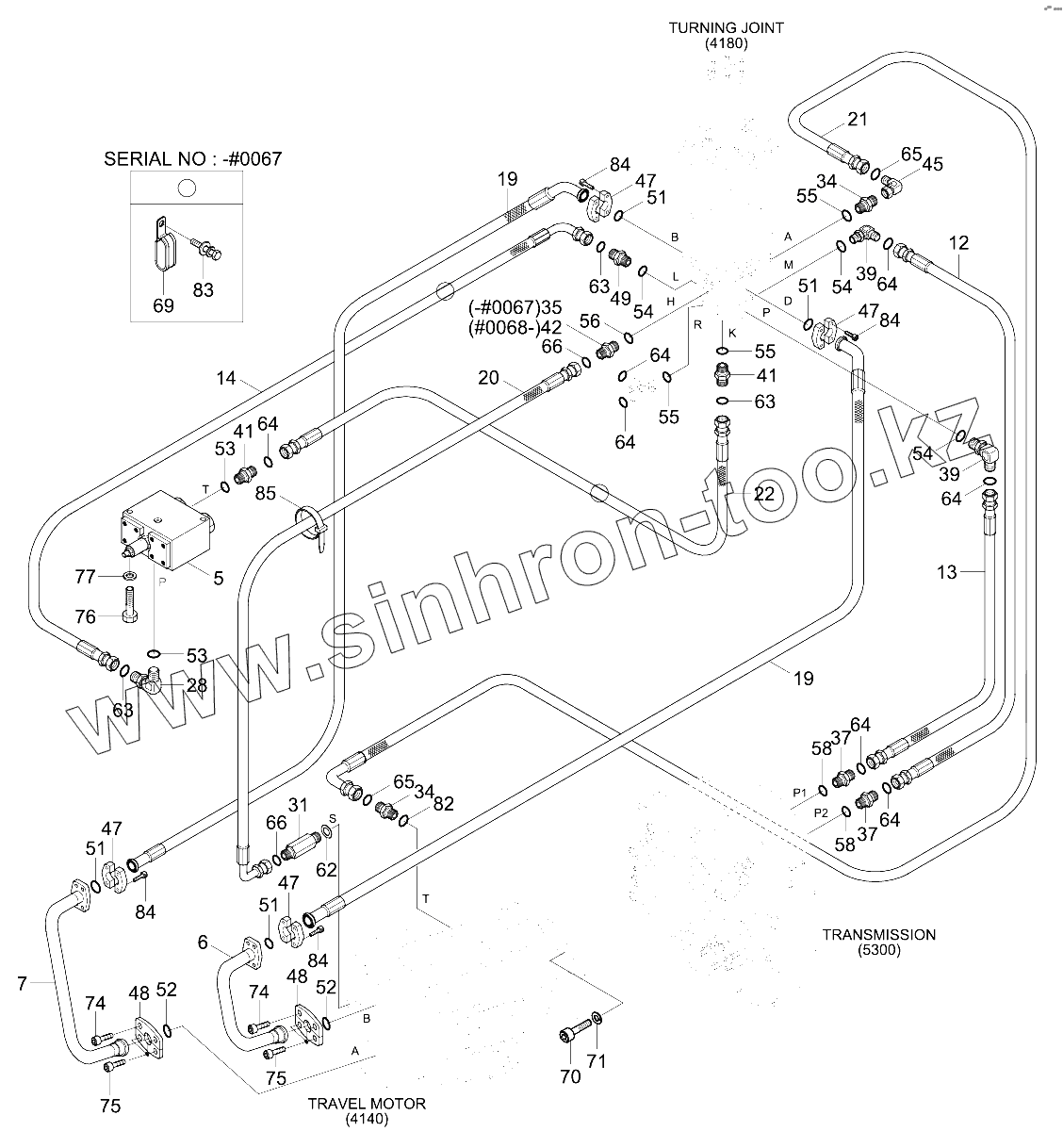

Каталог запасных частей к технике: Hyundai R170W-9S. LOWER HYD PIPING 1
5
6
7
12
13
14
19
19
20
21
22
28
31
34
34
35
37
37
39
39
41
41
42
45
47
47
47
47
48
48
49
51
51
51
51
52
52
53
53
54
54
54
55
55
55
56
58
58
62
63
63
63
64
64
64
64
64
64
64
65
65
66
66
69
70
71
74
74
75
75
76
77
82
83
84
84
84
84
85
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5 | 31Q4-43610 | Valve-Locking | |
| 6 | 38Q5-41020 | PIPE ASSY | |
| 7 | 38Q5-41030 | PIPE ASSY | |
| 12 | P933-062009 | Hose Assy-Orfs 0x90 | |
| 13 | P933-062008 | Hose Assy | |
| 14 | P933-047027 | HOSE ASSY-ORFS 0X90 | |
| 14 | P933-047026 | Hose Assy-Orfs 0x90 | |
| 19 | P983-128318 | HOSE ASSY-ORFS, FLG 0X90 | |
| 19 | P983-128319 | HOSE ASSY-ORFS 0X90 | |
| 19 | P983-128316 | HOSE ASSY-ORFS 0X90 | |
| 20 | P933-162021 | Hose Assy-Orfs 0x90 | |
| 20 | P933-162023 | HOSE ASSY-ORFS 0X90 | |
| 21 | P933-082019 | HOSE ASSY-ORFS 0X90 | |
| 21 | P933-082022 | HOSE ASSY-ORFS 0X90 | |
| 21 | P933-082020 | Hose Assy-Orfs 0x90 | |
| 22 | P933-062027 | HOSE ASSY-ORFS 0X90 | |
| 28 | X511-104515 | CONNECTOR-LONG,ORFS | |
| 31 | 31Q4-41150 | CONNECTOR-LONG, ORFS | |
| 34 | X500-110003 | CONNECTOR-ORFS | |
| 35 | X500-210002 | Connector-Orfs | |
| 37 | X500-210005 | Connector-Orfs | |
| 39 | X520-110002 | ELBOW-90,ORFS | |
| 41 | X500-110011 | CONNECTOR-ORFS | |
| 42 | X500-110005 | CONNECTOR-ORFS | |
| 45 | X850-535300 | Elbow-90,Orfs | |
| 47 | P173-120102 | FLANGE-HYD,SPLIT | |
| 48 | P174-160115 | FLANGE-SPLIT | |
| 49 | X500-110013 | CONNECTOR-ORFS | |
| 51 | Y171-019004 | O-RING | |
| 52 | Y171-024004 | O-RING | |
| 53 | S631-011004 | O-RING | |
| 54 | S631-014004 | O-RING | |
| 55 | S631-018004 | O-RING | |
| 56 | S631-029004 | O-RING | |
| 58 | Y161-016001 | O-Ring | |
| 62 | P392-270000 | Washer-Copper | |
| 63 | S621-011001 | O-RING | |
| 64 | S621-012001 | O-RING | |
| 65 | S621-014001 | O-RING | |
| 66 | S621-021001 | O-RING | |
| 69 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 70 | S109-16050D | Bolt-Socket | |
| 71 | S411-160006 | WASHER-SPRING | |
| 74 | S109-120406 | BOLT-SOCKET | |
| 75 | S109-121056 | BOLT-SOCKET | |
| 76 | S015-080806 | Bolt-Hex | |
| 77 | S411-080006 | WASHER-SPRING | |
| 82 | S631-021004 | O-RING | |
| 83 | S037-102026 | BOLT-W/WASHER | |
| 84 | S109-100356 | BOLT-SOCKET | |
| 85 | S541-160002 | Clamp-Tube |
