CYLINDER HEAD
VALVE MECHANISM
ROCKER COVER & BREATHER
CAMSHAFT
CRANKCASE ASSY
MAIN BEARING
TIMING GEAR CASE
FLYWHEEL HOUSING
OIL PAN
PISTON & CONNECTING ROD
CRANKSHAFT & FLYWHEEL
TIMING GEAR
INLET & EXHAUST SYSTEM
TURBOCHARGER
OIL PUMP & OIL STRAINER
OIL PIPE
OIL COOLER
OIL FILTER
COOLING SYSTEM
FUEL INJECTION PUMP GENERAL
FEED PUMP
FUEL SYSTEM
NOZZLE
AUTOMATIC TIMER
FUEL FILTER
STARTER
ALTERNATOR GENERAL
ALTERNATOR
GASKET KIT
CONTROL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
201
202
202
203
203
204
205
206

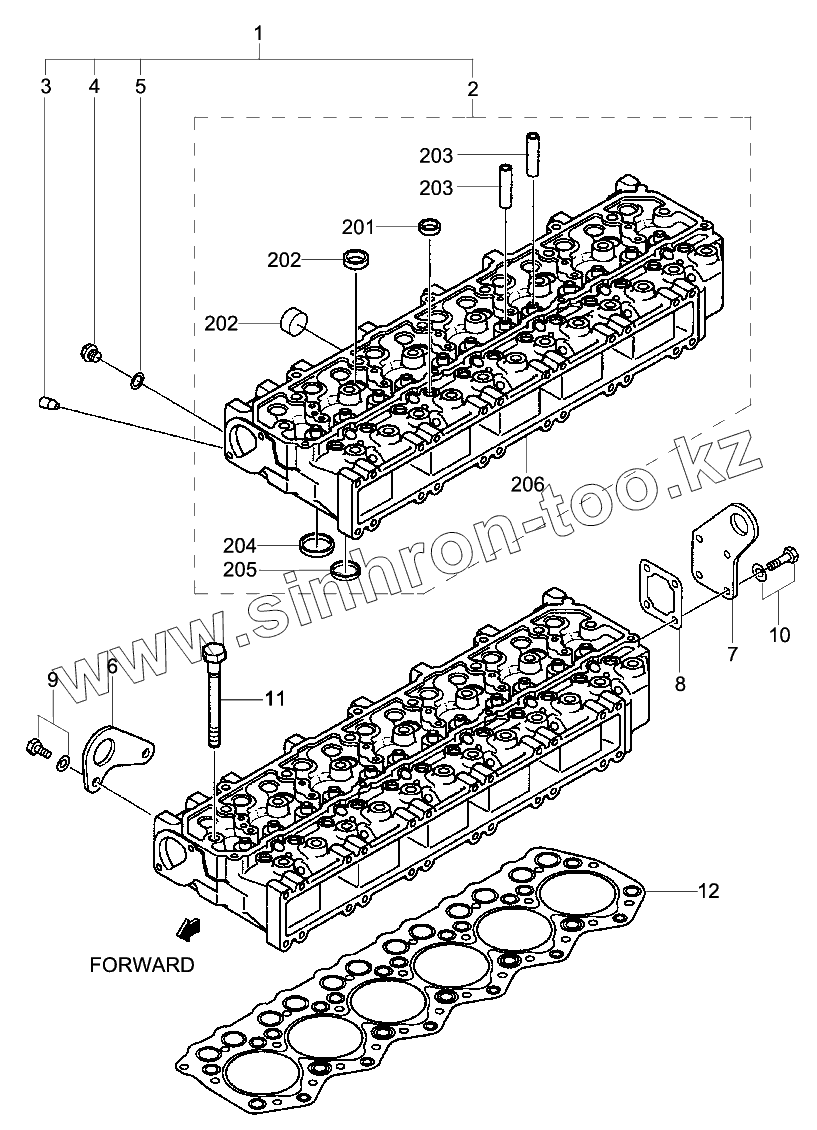

Позиция на иллюстрации
Заводской номер детали
Название детали
1
32B01-06050
CYLINDER HEAD ASSY
2
CYLINDERHEAD
CYLINDER HEAD
3
PLUG
PLUG
4
MM316248
PLUG-DRAIN
5
30636-25901
GASKET
6
32A01-02700
EYE-LIFTING, FR
7
32A01-02800
EYE-LIFTING, RR
8
32A01-02600
GASKET-CYLINDER HEAD
9
F1805-08016
BOLT-W/WASHER
10
F1805-08020
BOLT-W/WASHER
11
32A01-01400
BOLT-CYLINDER HEAD
12
32B01-12100
GASKET-CYLINDER HEAD
201
04826-22000
CAP-SEALING
202
04826-22500
CAP-SEALING
203
32A01-01600
GUIDE-VALVE
204
32A01-03100
SEAT-VALVE, INLET
205
32A01-03200
SEAT-VALVE, EXHAUST
206
CYLINDERHEAD
CYLINDER HEAD
