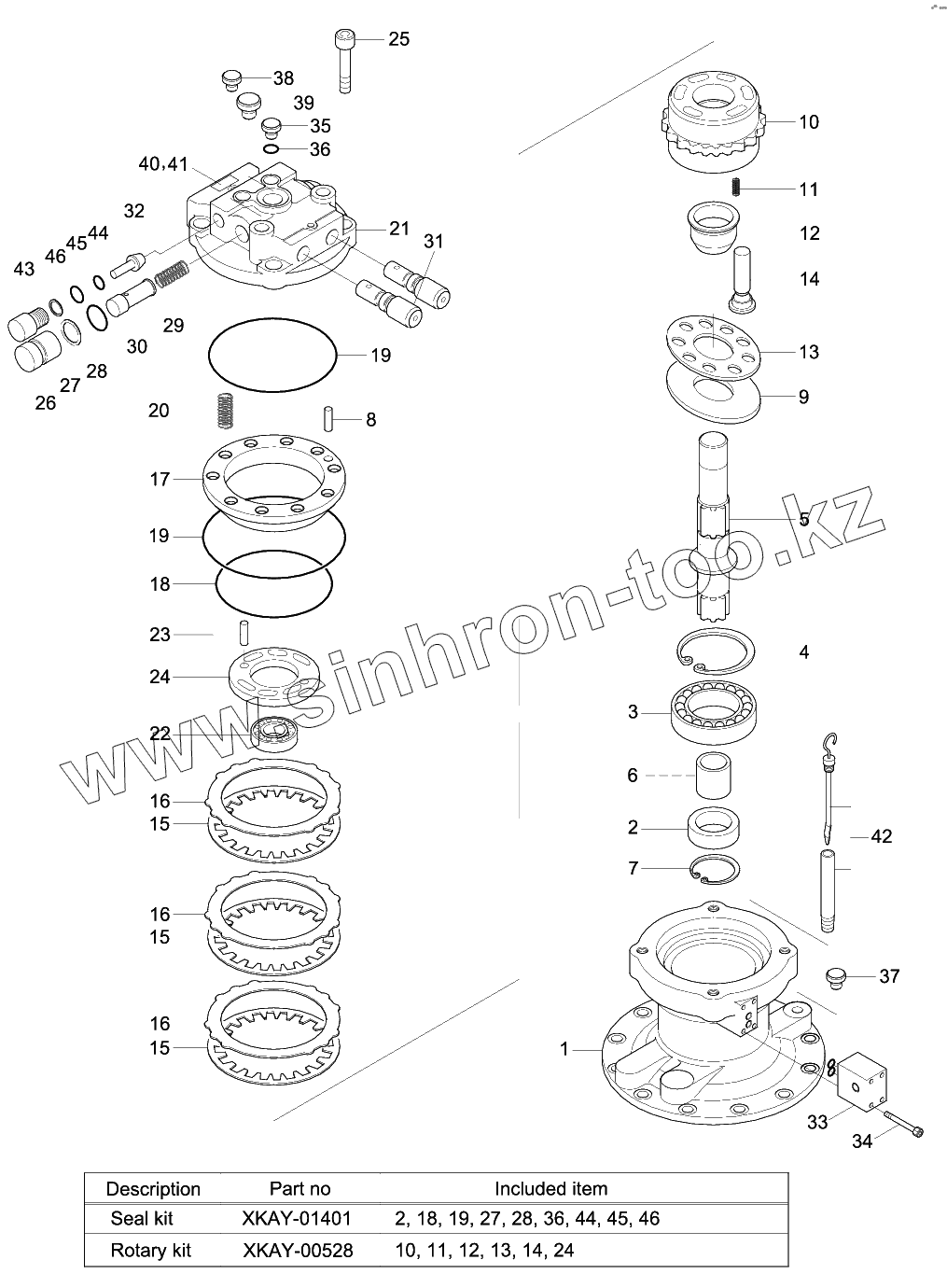

Каталог запасных частей к технике: Hyundai R170W-9. SWING MOTOR
1
1
15
15
15
16
16
16
17
20
21
22
23
24
24
25
26
29
3
30
31
31
32
33
34
35
37
38
39
4
40
41
42
43
5
6
7
8
9
A
XKAY-01401
18
18
19
19
19
2
2
27
27
28
28
36
36
44
44
45
45
46
46
10
10
11
11
12
12
13
13
14
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q5-10160 | 31Q5-10160 | Swing Motor Unit | |
| 31Q5-12160 | 31Q5-12160 | SWING MOTOR UNIT | |
| REDUCTIONGEAR | REDUCTIONGEAR | SWING REDUCTION GEAR | |
| 1 | XKAY-01394 | Body | |
| 1 | XKAY-02153 | BODY | |
| 15 | XKAY-00537 | Plate-Friction | |
| 16 | XKAY-00538 | Plate | |
| 17 | XKAY-00632 | Piston-Brake | |
| 20 | XKAY-00541 | Spring | |
| 21 | XKAY-01514 | Cover-Rear | |
| 22 | XKAY-00543 | Bearing-Needle | |
| 23 | XKAY-00382 | Pin | |
| 24 | XKAY-01512 | Plate-Valve | |
| 25 | XKAY-00546 | Bolt-Wrench | |
| 26 | XKAY-00309 | Plug | |
| 29 | XKAY-00311 | Spring | |
| 3 | XKAY-00522 | Bearing-Roller | |
| 30 | XKAY-00312 | Check | |
| 31 | XKAY-00313 | Relief Valve Assy | |
| 31 | XKAY-01751 | RELIEF VALVE ASSY | |
| 32 | XKAY-00314 | Reactionless Vlv Assy | |
| 33 | XKAY-01470 | TIME DELAY VALVE ASSY | |
| 34 | XKAY-00149 | BOLT-WRENCH | |
| 35 | XKAY-00150 | PLUG | |
| 37 | XKAY-00140 | Plug | |
| 38 | XKAY-00975 | PLUG | |
| 39 | XKAY-00548 | PLUG | |
| 4 | XKAY-00523 | RING-SNAP | |
| 40 | XKAY-01515 | Name Plate | |
| 41 | XKAY-00277 | Rivet | |
| 42 | XKAY-01986 | Gauge-Level | |
| 42-1 | XKAY-01988 | PLUG | |
| 43 | XKAY-00322 | Plug | |
| 5 | XKAY-00524 | Shaft | |
| 6 | XKAY-00525 | Bushing | |
| 7 | XKAY-00526 | Ring-Stop | |
| 8 | XKAY-00625 | Pin | |
| 9 | XKAY-00527 | Plate-Shoe | |
| A | XKAY-00528 | Rotary Kit | |
| A-A | XKAY-00529 | Cylinder Block Kit | |
| A-B | XKAY-00532 | Retainer Kit | |
| A-C | XKAY-00535 | Piston Kit | |
| XKAY-01401 | XKAY-01401 | Seal Kit | |
| 18 | XKAY-00468 | O-Ring | |
| 19 | XKAY-00540 | O-Ring | |
| 2 | XKAY-00521 | Seal-Oil | |
| 27 | XKAY-00141 | Ring-Back Up | |
| 28 | XKAY-00310 | O-Ring | |
| 36 | XKAY-00151 | O-RING | |
| 44 | XKAY-00324 | O-Ring | |
| 45 | XKAY-00247 | O-RING | |
| 46 | XKAY-00605 | Ring-Back Up | |
| SWINGMOTOR | SWINGMOTOR | SWING MOTOR ASSY | |
| 10 | XKAY-01511 | Block-Cylinder | |
| 11 | XKAY-00531 | Spring | |
| 12 | XKAY-00533 | Guide-Ball | |
| 13 | XKAY-00534 | Plate-Set | |
| 14 | XKAY-01513 | Piston Assy |
