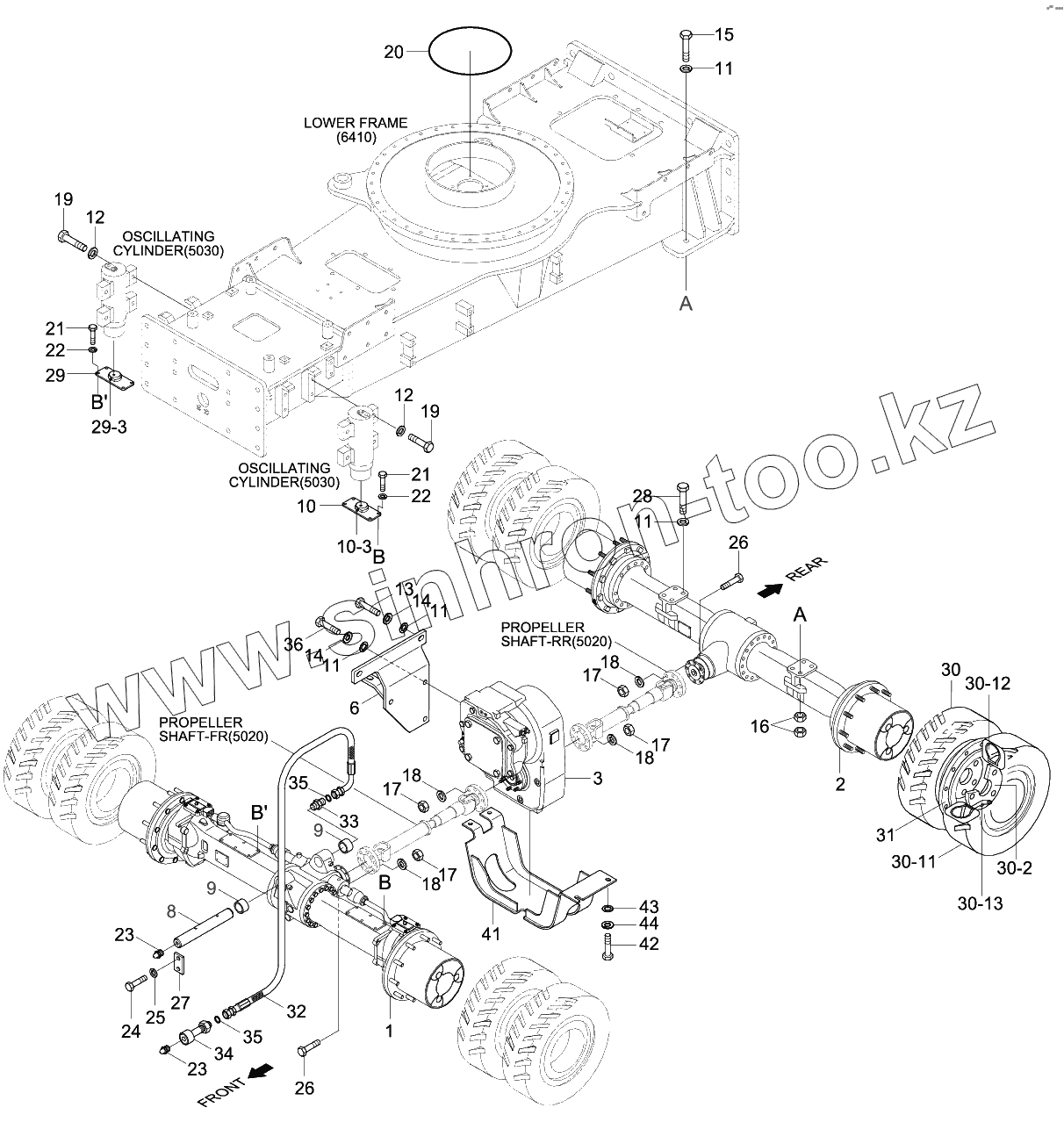

Каталог запасных частей к технике: Hyundai R170W-9. POWER TRAIN MOUNTING
1
1
10
10
10-3
11
11
11
11
12
12
13
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
19
19
2
2
20
20
21
21
22
22
23
23
23
23
24
25
26
26
27
28
29
29
29-3
3
30
30
30-11
30-12
30-13
30-2
30-2
31
32
33
34
35
35
36
41
42
43
44
6
8
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 81Q5-40010 | AXLE-FRONT | |
| 1 | 81Q5-40011 | AXLE-FRONT | |
| 10 | 81Q5-40221 | SUPPORT-O/CYLINDER | |
| 10 | 81Q5-40222 | SUPPORT-O/CYLINDER | |
| 10-3 | S652-810002 | Nipple-Grease | |
| 11 | S411-200006 | Washer-Spring | |
| 12 | S441-200006 | WASHER-HARDENED | |
| 13 | S017-20045D | Bolt-Hex | |
| 13 | S017-20045D | Bolt-Hex | |
| 14 | S411-200006 | Washer-Spring | |
| 15 | S018-20170D | Bolt-Hex | |
| 15 | S017-20170D | BOLT-HEX | |
| 16 | S206-20100B | Nut-Hex | |
| 16 | S205-20100B | NUT-HEX | |
| 17 | 81E4-3007-DA | Nut-Hex | |
| 18 | S411-100006 | WASHER-SPRING | |
| 19 | S018-22075D | Bolt-Hex | |
| 2 | 81Q5-40020 | AXLE-REAR | |
| 2 | 81Q5-40021 | AXLE-REAR | |
| 20 | 81Q4-40450 | Seal-Grease | |
| 20 | E181-3001 | SEAL-GREASE | |
| 21 | S017-16035D | Bolt-Hex | |
| 22 | S411-160006 | WASHER-SPRING | |
| 23 | S651-810002 | NIPPLE-GREASE | |
| 23 | S651-810008 | Nipple-Grease | |
| 24 | S017-120256 | Bolt-Hex | |
| 25 | S411-120006 | WASHER-SPRING | |
| 26 | 81E3-30071-DA | Bolt-Hex | |
| 27 | S384-207225 | Plate-Lock | |
| 28 | S018-20130D | BOLT-HEX | |
| 29 | 81Q5-40231 | SUPPORT-O/CYLINDER | |
| 29 | 81Q5-40232 | SUPPORT-O/CYLINDER | |
| 29-3 | S652-810002 | Nipple-Grease | |
| 3 | 81Q6-40030 | TRANSMISSION | |
| 30 | 81N5-50100GG | Tire & Wheel Assy | |
| 30 | 81N5-50200GG | Tire & Wheel Assy | |
| 30-1 | 81E4-20200 | Tire Assy | |
| 30-1 | 81E4-21020 | Tire | |
| 30-11 | 81E4-2001 | Tire | |
| 30-12 | 81E4-2002 | Tire | |
| 30-13 | 81E4-2003 | Flap | |
| 30-2 | 81EA-32091GG | Wheel Rim | |
| 30-2 | 81N5-50010GG | Wheel Wa | |
| 31 | 81N5-50061 | Ring-Stone Register | |
| 32 | P933-042016 | Hose Assy-Orfs 0x90 | |
| 33 | 31N4-40180 | Connector | |
| 34 | 31Q5-43420 | CONNECTOR | |
| 35 | S621-011001 | O-RING | |
| 36 | S017-20050D | BOLT-HEX | |
| 41 | 81Q5-30111 | GUARD-TRANSMISSION | |
| 42 | S017-16025D | Bolt-Hex | |
| 43 | S441-160006 | WASHER-HARDENED | |
| 44 | S411-160006 | WASHER-SPRING | |
| 6 | 81Q5-32061 | BRACKET-TRANSMISSION | |
| 8 | 81Q5-40211 | PIN-PIVOT | |
| 9 | 81E3-0003 | Bushing | |
| 30-1 | 81E4-20200H | Tire Assy | |
| 30-1 | 81E4-20200S | Tire Assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
