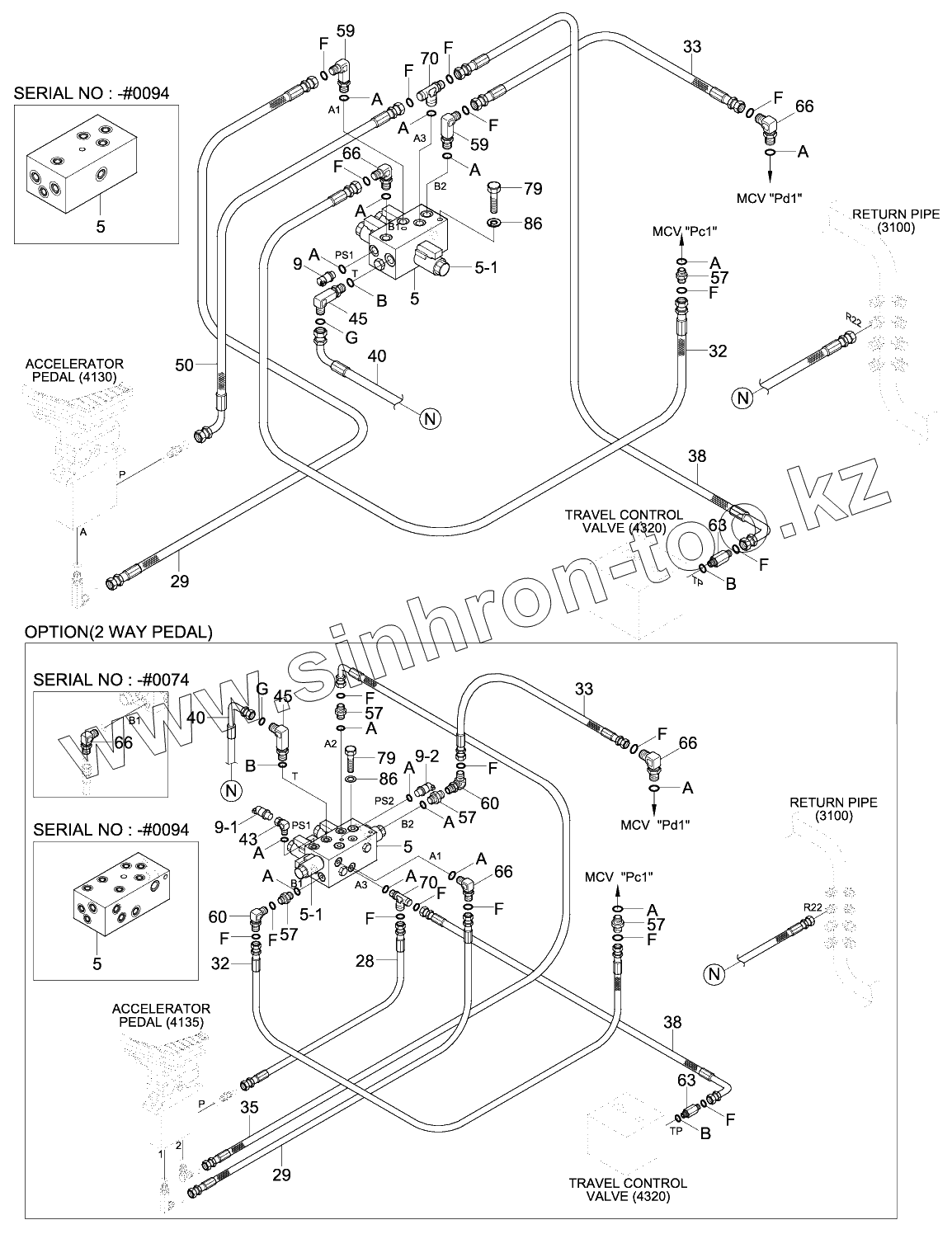

Каталог запасных частей к технике: Hyundai R170W-9. POWER TRAIN HYD PIPING 3
28
29
29
32
32
33
33
35
38
38
40
40
40
40
43
45
45
5
5
5
5
5
5
5
5
5
5
5-1
5-1
5-1
5-1
50
57
57
57
57
57
57
57
57
57
59
59
60
60
60
60
63
63
66
66
66
66
66
66
66
66
66
66
66
66
66
66
66
70
70
79
79
79
79
86
86
9
9
9
9-1
9-1
9-1
9-2
9-2
9-2
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
G
G
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 28 | X400-042005 | HOSE ASSY-SYNF,ORFS | |
| 29 | X400-042008 | Hose Assy-Synflex, Orfs | |
| 32 | X400-042058 | Hose Assy-Synf Orfs | |
| 33 | X400-042062 | HOSE ASSY-SYNF,ORFS | |
| 35 | X420-042008 | HOSE ASSY-ORFS 0X90 | |
| 38 | X420-042039 | Hose Assy-Orfs 0x90 | |
| 40 | X420-062045 | Hose Assy-Orfs 0x90 | |
| 40 | X420-062040 | Hose Assy-Orfs 0x90 | |
| 43 | 31E5-11110 | ADAPTER | |
| 45 | 31N1-40130 | ELBOW-90,LONG,ORFS | |
| 5 | 31Q4-20142 | 3-Cartridge Valve | |
| 5 | 31Q4-20143 | 3-Cartridge Valve | |
| 5 | 31Q4-25140 | 5-Cartridge Valve | |
| 5 | 31Q4-25141 | 5-Cartridge Valve | |
| 5-1 | 31Q6-20045 | Valve Assy-Eppr | |
| 5-1 | 31Q6-20045 | Valve Assy-Eppr | |
| 50 | X420-042009 | Hose Assy-Orfs 0x90 | |
| 57 | X500-110001 | CONNECTOR-ORFS | |
| 57 | X500-110001 | CONNECTOR-ORFS | |
| 57 | X500-110001 | CONNECTOR-ORFS | |
| 59 | 31N6-25110 | ELBOW-90,LONG | |
| 60 | X850-515100 | ELBOW-90 SWIVEL,ORFS | |
| 60 | X850-515100 | ELBOW-90 SWIVEL,ORFS | |
| 63 | X511-106513 | Connector-Long,Orfs | |
| 66 | X520-110001 | ELBOW-90,ORFS | |
| 66 | X520-110001 | ELBOW-90,ORFS | |
| 66 | X520-110001 | ELBOW-90,ORFS | |
| 70 | X810-045151 | Tee-B/Type, Orfs | |
| 79 | S017-080856 | Bolt-Hex | |
| 79 | S017-080956 | BOLT-HEX | |
| 86 | S411-080006 | WASHER-SPRING | |
| 9 | 31Q8-40520 | Sensor-Pressure | |
| 9 | 31Q8-40510 | Sensor-Pressure | |
| 9 | 31Q4-40820 | SENSOR-PRESSURE | |
| 9-1 | 31Q8-40520 | Sensor-Pressure | |
| 9-1 | 31Q8-40510 | Sensor-Pressure | |
| 9-1 | 31Q4-40820 | SENSOR-PRESSURE | |
| 9-2 | 31Q8-40520 | Sensor-Pressure | |
| 9-2 | 31Q8-40510 | Sensor-Pressure | |
| 9-2 | 31Q4-40820 | SENSOR-PRESSURE | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| F | S621-011001 | O-RING | |
| G | S621-012001 | O-RING |
