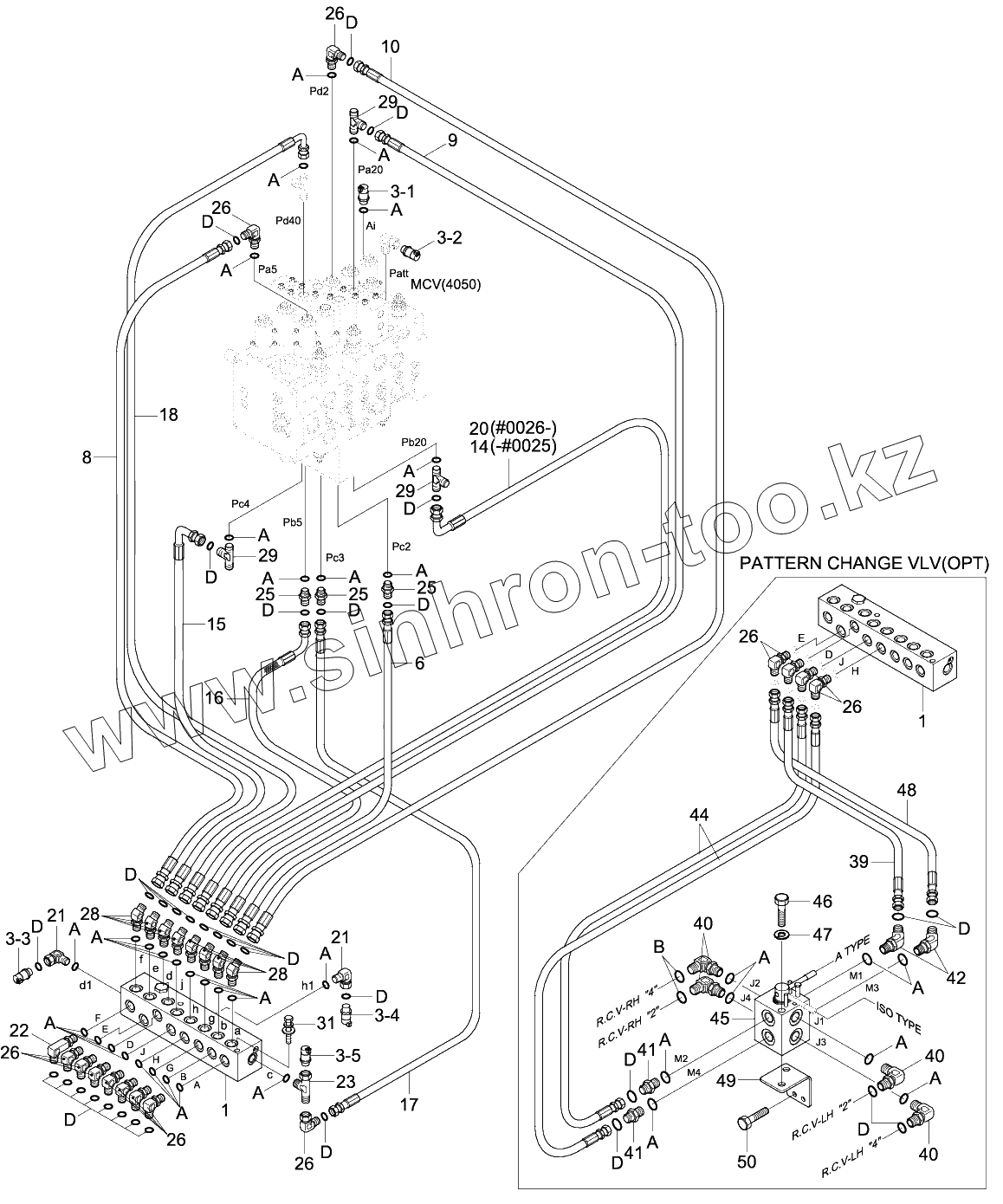

Каталог запасных частей к технике: Hyundai R170W-9. PILOT HYD PIPING (CONTROL 1)
1
1
10
14
15
16
17
18
20
21
21
22
23
25
25
25
26
26
26
26
26
26
26
28
28
29
29
29
3-1
3-1
3-2
3-2
3-3
3-3
3-4
3-4
3-5
3-5
31
39
40
40
40
41
41
42
44
45
46
47
48
49
50
6
8
9
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 31Q6-20171 | Block-Terminal | |
| 1-1 | XKAL-00097 | BLOCK-MANIFOLD | |
| 1-2 | XKAL-00096 | VALVE-SHUTTLE | |
| 10 | X400-042032 | Hose Assy-Synf, Orfs | |
| 14 | X400-042022 | HOSE ASSY-SYNF,ORFS | |
| 15 | X420-042023 | Hose Assy-Orfs 0x90 | |
| 16 | X420-042026 | HOSE ASSY-ORFS 0X90 | |
| 17 | X420-042028 | Hose Assy-Orfs 0x90 | |
| 18 | X420-042032 | Hose Assy-Orfs 0x90 | |
| 20 | X420-042022 | Hose Assy-Orfs 0x90 | |
| 21 | 31E5-11110 | ADAPTER | |
| 22 | 31N6-25110 | ELBOW-90,LONG | |
| 23 | 31N6-66080 | TEE-BRENCH TEST | |
| 25 | X500-110001 | CONNECTOR-ORFS | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 28 | X530-110001 | ELBOW-45,ORFS | |
| 29 | X820-045151 | TEE-R/TYPE,ORFS | |
| 3-1 | 31Q8-40520 | Sensor-Pressure | |
| 3-1 | 31Q4-40830 | SENSOR-PRESSURE | |
| 3-2 | 31Q8-40520 | Sensor-Pressure | |
| 3-2 | 31Q4-40830 | SENSOR-PRESSURE | |
| 3-3 | 31Q8-40520 | Sensor-Pressure | |
| 3-3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 3-4 | 31Q8-40520 | Sensor-Pressure | |
| 3-4 | 31Q4-40830 | SENSOR-PRESSURE | |
| 3-5 | 31Q8-40520 | Sensor-Pressure | |
| 3-5 | 31Q4-40830 | SENSOR-PRESSURE | |
| 31 | S109-080756 | BOLT-SOCKET | |
| 39 | X400-042011 | HOSE ASSY-SYNF,ORFS | |
| 40 | X520-110001 | ELBOW-90,ORFS | |
| 41 | X500-120001 | Connector-Orfs | |
| 42 | X530-110001 | ELBOW-45,ORFS | |
| 44 | X400-042010 | Hose Assy-Synf, Orfs | |
| 45 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 46 | S015-080856 | BOLT-HEX | |
| 47 | S411-080006 | WASHER-SPRING | |
| 48 | X400-042012 | Hose Assy-Synf, Orfs | |
| 49 | 31Q5-23170 | BRACKET-WA | |
| 50 | S015-080256 | Bolt-Hex | |
| 6 | X400-042026 | Hose Assy-Synflex, Orfs | |
| 8 | X400-042029 | Hose Assy-Synf, Orfs | |
| 9 | X400-042031 | Hose Assy-Synf,Orfs | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| D | S621-011001 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
