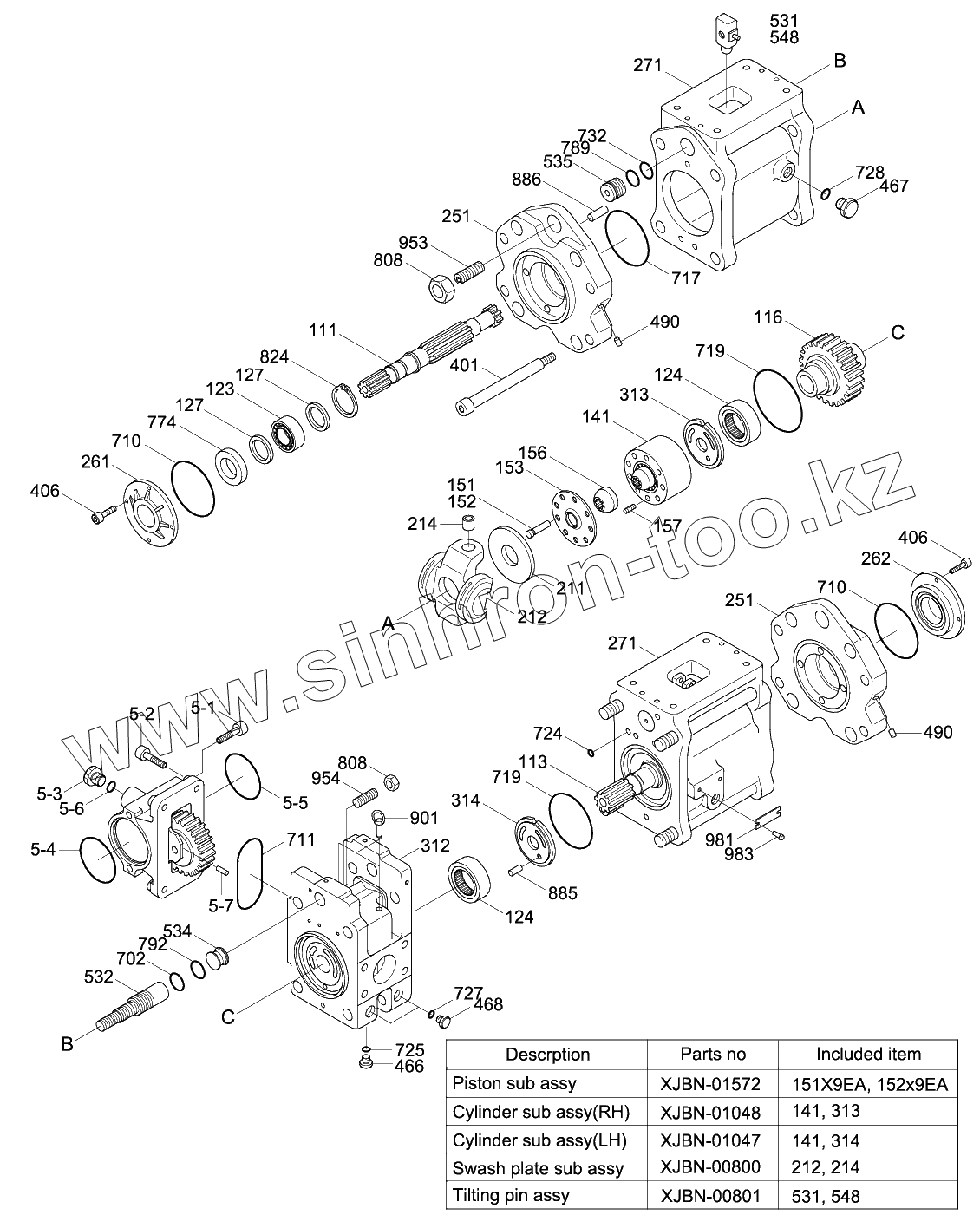

Каталог запасных частей к технике: Hyundai R170W-9. MAIN PUMP
31Q5-15010
111
113
116
123
124
124
127
127
153
156
157
211
251
251
261
262
271
271
312
401
406
406
466
467
468
490
490
5
5-1
5-2
5-3
5-4
5-5
5-6
5-7
532
534
535
702
710
710
711
717
719
719
724
725
727
728
732
774
789
792
808
808
824
885
886
901
953
954
981
983
141
151
152
212
214
313
314
531
548
XJBN-01572
XJBN-01048
XJBN-01047
XJBN-00800
XJBN-00801
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q5-15010 | 31Q5-15010 | MAIN PUMP | |
| MAINPUMP | MAINPUMP | MAIN PUMP UNIT | |
| REGULATOR | REGULATOR | REGULATOR ASSY | |
| XJBN-01018 | XJBN-01018 | Pto Unit | |
| GEARPUMP | GEARPUMP | GEAR PUMP | |
| 079 | EPPRVALVE | EPPR VALVE | |
| 111 | XJBN-00802 | Shaft(F)-Drive | |
| 113 | XJBN-00803 | Shaft(R)-Drive | |
| 116 | XJBN-00804 | Gear-1st | |
| 123 | XJBN-00429 | Bearing-Roller | |
| 124 | XJBN-00805 | Bearing-Needle | |
| 127 | XJBN-00806 | Spacer-Bearing | |
| 153 | XJBN-00808 | Plate-Set | |
| 156 | XJBN-00422 | Bushing-Spherical | |
| 157 | XJBN-00421 | Spring-Cylinder | |
| 211 | XJBN-00420 | Plate-Shoe | |
| 251 | XJBN-00417 | Support | |
| 261 | XJBN-00809 | Cover-Fr | |
| 262 | XJBN-00810 | Cover-Rr | |
| 271 | XJBN-01046 | Casing-Pump | |
| 312 | XJBN-00812 | Block-Valve | |
| 401 | XJBN-00411 | Screw | |
| 406 | XJBN-00813 | Screw | |
| 466 | XJBN-00030 | PLUG | |
| 467 | XJBN-00487 | Plug | |
| 468 | XJBN-00814 | PLUG | |
| 490 | XJBN-00032 | PLUG | |
| 5 | XJBN-01020 | Pto Assy | |
| 5-1 | XJBN-00160 | Screw-Socket | |
| 5-2 | XJBN-00725 | Socket-Flange | |
| 5-3 | XJBN-00031 | PLUG | |
| 5-4 | XJBN-00837 | O-Ring | |
| 5-5 | XJBN-00387 | O-Ring | |
| 5-6 | XJBN-00046 | O-RING | |
| 5-7 | XJBN-01023 | Pin-Spring | |
| 532 | XJBN-00407 | Piston-Servo | |
| 534 | XJBN-00816 | Stopper | |
| 535 | XJBN-00405 | Stopper | |
| 702 | XJBN-00817 | O-Ring | |
| 710 | XJBN-00387 | O-Ring | |
| 711 | XJBN-00095 | O-Ring | |
| 717 | XJBN-00818 | O-Ring | |
| 719 | XJBN-00819 | O-Ring | |
| 724 | XJBN-00044 | O-RING | |
| 725 | XJBN-00045 | O-RING | |
| 727 | XJBN-00233 | O-RING | |
| 728 | XJBN-00097 | O-RING | |
| 732 | XJBN-00820 | O-RING | |
| 774 | XJBN-01029 | Seal-Oil | |
| 789 | XJBN-00476 | Ring-Back Up | |
| 792 | XJBN-00454 | Ring Back-Up | |
| 808 | XJBN-00101 | Nut-Hex | |
| 824 | XJBN-00821 | Ring-Snap | |
| 885 | XJBN-00394 | Pin-Valve Plate | |
| 886 | XJBN-00054 | PIN-SPRING | |
| 901 | XJBN-00104 | Bolt-Eye | |
| 953 | XJBN-00105 | Screw-Set | |
| 954 | XJBN-00392 | Screw-Set | |
| 981 | XJBN-00156 | NAME PLATE | |
| 983 | XJBN-00455 | Pin | |
| 141 | XJBN-00807 | Block-Cylinder | |
| 151 | XJBN-00425 | Piston | |
| 152 | XJBN-01278 | Shoe | |
| 212 | XJBN-00419 | Plate-Swash | |
| 214 | XJBN-00418 | Bushing-Tilting | |
| 313 | XJBN-01045 | Plate(R)-Valve | |
| 314 | XJBN-01044 | Plate(L)-Valve | |
| 531 | XJBN-00815 | Pin-Tilting | |
| 548 | XJBN-00360 | PIN-FEED BACK | |
| XJBN-01572 | XJBN-01572 | Piston Sub Assy | |
| XJBN-01048 | XJBN-01048 | Cylinder Sub Assy-Rh | |
| XJBN-01047 | XJBN-01047 | Cylinder Sub Assy-Lh | |
| XJBN-00800 | XJBN-00800 | Swash Plate Sub Assy | |
| XJBN-00801 | XJBN-00801 | Tilting Pin Sub Assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
