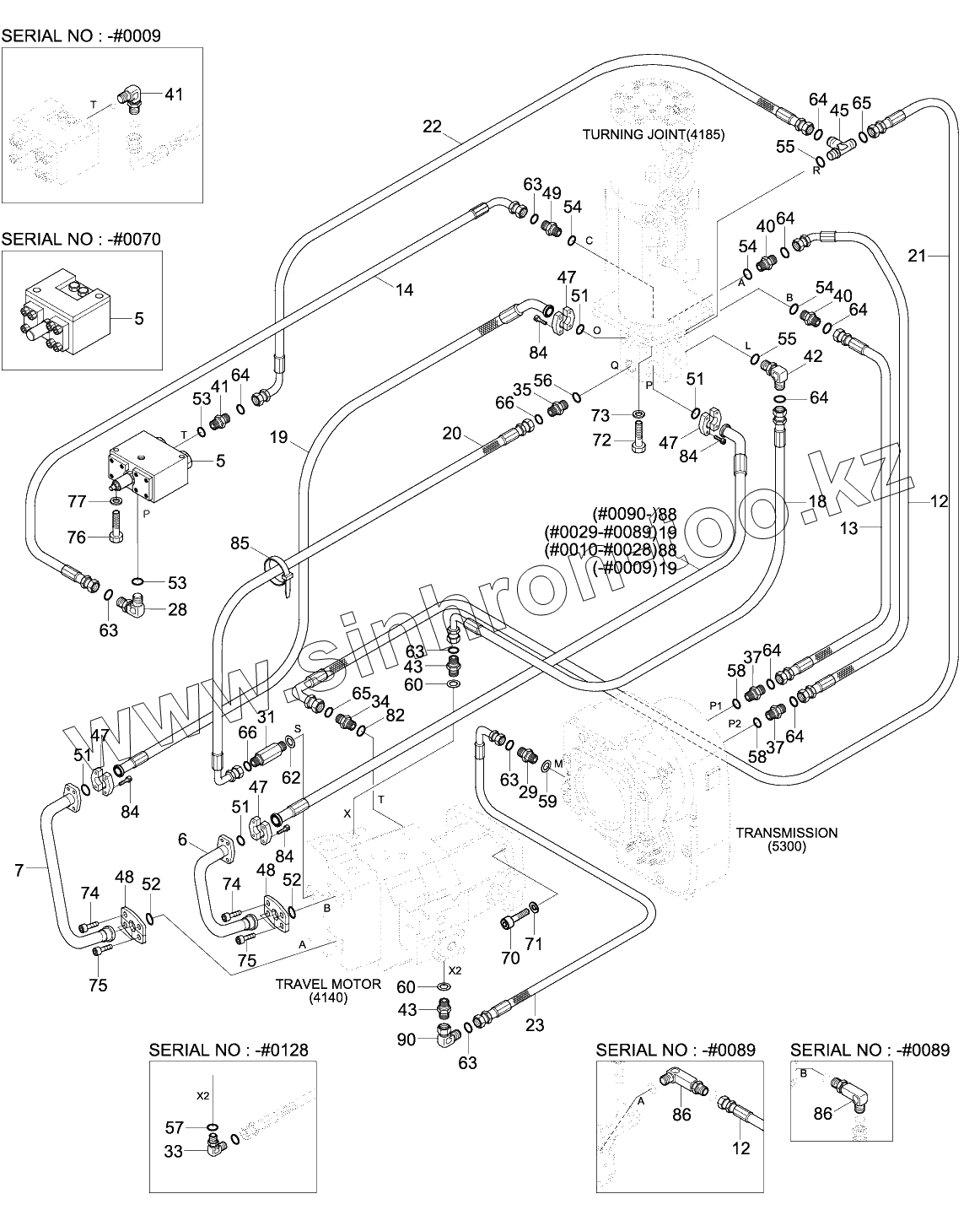

Каталог запасных частей к технике: Hyundai R170W-9. LOWER HYD PIPING 1
5
5
5
6
6
6
7
7
7
12
12
12
13
13
14
14
18
19
19
19
19
19
19
20
20
21
21
22
22
23
28
29
31
31
33
34
35
37
37
40
40
41
41
41
42
43
43
43
45
47
47
47
47
47
48
48
49
49
51
51
51
51
52
52
53
53
53
54
54
54
55
55
56
57
57
58
58
59
60
60
60
62
63
63
63
63
63
64
64
64
64
64
64
64
65
65
66
66
70
70
71
72
73
74
74
75
75
75
76
77
82
84
84
84
84
84
85
86
86
88
88
88
90
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5 | 31Q4-43610 | Valve-Locking | |
| 5 | 81E3-0014 | Valve-Locking | |
| 6 | 31Q5-41020 | PIPE ASSY | |
| 6 | 31Q5-41021 | PIPE ASSY | |
| 6 | 31Q5-41020 | PIPE ASSY | |
| 7 | 31Q5-41030 | PIPE ASSY | |
| 7 | 31Q5-41031 | PIPE ASSY | |
| 7 | 31Q5-41030 | PIPE ASSY | |
| 12 | P923-062012 | Hose Assy-Orfs 0x45 | |
| 12 | P913-062008 | HOSE ASSY-ORFS 0X0 | |
| 13 | P913-062012 | Hose Assy-Orfs 0x0 | |
| 13 | P913-062007 | Hose Assy-Orfs 0x0 | |
| 14 | P933-047024 | HOSE ASSY-ORFS 0X90 | |
| 14 | P933-047026 | Hose Assy-Orfs 0x90 | |
| 18 | P933-042022 | HOSE ASSY-ORFS 0X90 | |
| 19 | P953-128416 | HOSE ASSY-ORFS 0X45 | |
| 19 | P953-128416 | HOSE ASSY-ORFS 0X45 | |
| 19 | P693-127315 | HOSE ASSY-FLG 0X45 | |
| 19 | 31Q5-43050 | HOSE ASSY | |
| 20 | P933-162020 | HOSE ASSY-ORFS 0X90 | |
| 20 | P933-162021 | Hose Assy-Orfs 0x90 | |
| 21 | P933-082021 | HOSE ASSY-ORFS 0X90 | |
| 21 | P933-082017 | Hose Assy-Orfs 0x90 | |
| 22 | P933-062029 | Hose Assy-Orfs 0x90 | |
| 22 | P933-062027 | HOSE ASSY-ORFS 0X90 | |
| 23 | P933-042015 | Hose Assy-Orfs 0x90 | |
| 28 | X520-110001 | ELBOW-90,ORFS | |
| 29 | 31Q4-43210 | Connector | |
| 31 | 31Q4-41150 | CONNECTOR-LONG, ORFS | |
| 31 | 31Q4-41090 | Connector-Orfs | |
| 33 | X520-210001 | Elbow-90,Orfs | |
| 34 | X500-110017 | Connector-Orfs | |
| 35 | X500-110005 | CONNECTOR-ORFS | |
| 37 | X500-210005 | Connector-Orfs | |
| 40 | X500-110002 | CONNECTOR-ORFS | |
| 41 | X500-110011 | CONNECTOR-ORFS | |
| 41 | X520-110011 | ELBOW-90,ORFS | |
| 42 | X520-110012 | ELBOW-90,ORFS | |
| 43 | X500-220002 | Connector-Orfs | |
| 43 | X500-220002 | Connector-Orfs | |
| 45 | X820-085352 | Tee-R/Type,Orfs | |
| 47 | P174-120102 | Flange-Hyd, Split | |
| 47 | P173-120102 | FLANGE-HYD,SPLIT | |
| 48 | 31NA-12070 | FLANGE-HYD,SPLIT | |
| 49 | X500-110013 | CONNECTOR-ORFS | |
| 49 | X500-110012 | CONNECTOR-ORFS | |
| 51 | Y171-019004 | O-RING | |
| 52 | Y171-027004 | O-RING | |
| 53 | S631-011004 | O-RING | |
| 53 | S631-011004 | O-RING | |
| 54 | S631-014004 | O-RING | |
| 55 | S631-018004 | O-RING | |
| 56 | S631-029004 | O-RING | |
| 57 | Y161-014001 | O-RING | |
| 57 | Y161-014001 | O-RING | |
| 58 | Y161-016001 | O-Ring | |
| 59 | Y161-010001 | O-Ring | |
| 60 | P392-140000 | Washer-Copper | |
| 60 | P392-140000 | Washer-Copper | |
| 62 | P392-270000 | Washer-Copper | |
| 63 | S621-011001 | O-RING | |
| 64 | S621-012001 | O-RING | |
| 65 | S621-014001 | O-RING | |
| 66 | S621-021001 | O-RING | |
| 70 | S109-16050D | Bolt-Socket | |
| 70 | S109-160506 | Bolt-Socket | |
| 71 | S411-160006 | WASHER-SPRING | |
| 72 | S017-120506 | BOLT-HEX | |
| 73 | S411-120006 | WASHER-SPRING | |
| 74 | S109-140456 | BOLT-SOCKET | |
| 75 | S109-141206 | BOLT-SOCKET | |
| 75 | S109-141306 | BOLT-SOCKET | |
| 76 | S015-080806 | Bolt-Hex | |
| 77 | S411-080006 | WASHER-SPRING | |
| 82 | S631-021004 | O-RING | |
| 84 | S109-100306 | BOLT-SOCKET | |
| 84 | S109-100356 | BOLT-SOCKET | |
| 85 | S541-160002 | Clamp-Tube | |
| 86 | 31N5-30030 | Elbow-90,Orfs,Long | |
| 88 | P953-128415 | HOSE ASSY-ORFS 0X45 | |
| 88 | P953-128415 | HOSE ASSY-ORFS 0X45 | |
| 90 | X850-515100 | ELBOW-90 SWIVEL,ORFS |
