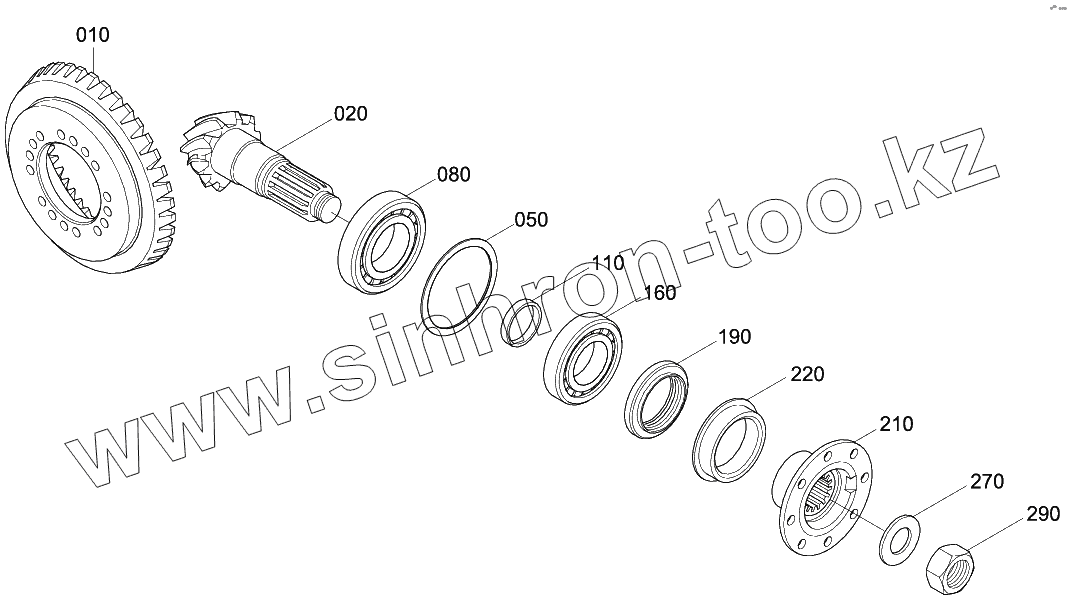

Каталог запасных частей к технике: Hyundai R170W-9. FRONT AXLE INPUT GROUP

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
20
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
80
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
110
160
190
210
220
270
290
Позиция на иллюстрации Заводской номер детали Название детали
10 ZGAQ-03995 Wheel-Crown
20 ZGAQ-03996 Pinion
50 ZGAQ-01142 Shim
50 ZGAQ-01144 Shim
50 ZGAQ-01143 Shim
50 ZGAQ-01141 Shim
50 ZGAQ-01140 Shim
50 ZGAQ-01139 Shim
50 ZGAQ-01138 Shim
50 ZGAQ-01137 Shim
50 ZGAQ-01136 Shim
50 ZGAQ-01135 Shim
50 ZGAQ-01134 Shim
50 ZGAQ-01133 Shim
50 ZGAQ-01132 Shim
50 ZGAQ-01119 Shim
50 ZGAQ-01118 Shim
50 ZGAQ-01120 Shim
50 ZGAQ-01131 Shim
50 ZGAQ-01121 Shim
50 ZGAQ-01122 Shim
50 ZGAQ-01123 Shim
50 ZGAQ-01125 Shim
50 ZGAQ-01130 Shim
50 ZGAQ-01129 Shim
50 ZGAQ-01128 Shim
50 ZGAQ-01127 Shim
50 ZGAQ-01126 Shim
50 ZGAQ-01124 Shim
80 ZGAQ-03875 Bearing-Taper Roller
110 ZGAQ-04022 Ring
110 ZGAQ-04023 Ring
110 ZGAQ-04024 Ring
110 ZGAQ-04026 Ring
110 ZGAQ-04027 Ring
110 ZGAQ-04028 Ring
110 ZGAQ-04029 Ring
110 ZGAQ-04030 Ring
110 ZGAQ-04031 Ring
110 ZGAQ-04032 Ring
110 ZGAQ-04033 Ring
110 ZGAQ-04034 Ring
110 ZGAQ-04035 Ring
110 ZGAQ-04036 Ring
110 ZGAQ-04037 Ring
110 ZGAQ-04038 Ring
110 ZGAQ-04039 Ring
110 ZGAQ-04040 Ring
110 ZGAQ-04041 Ring
110 ZGAQ-04042 Ring
110 ZGAQ-04043 Ring
110 ZGAQ-04044 Ring
110 ZGAQ-04007 Ring
110 ZGAQ-04020 Ring
110 ZGAQ-03997 Ring
110 ZGAQ-03998 Ring
110 ZGAQ-03999 Ring
110 ZGAQ-04000 Ring
110 ZGAQ-04001 Ring
110 ZGAQ-04002 Ring
110 ZGAQ-04003 Ring
110 ZGAQ-04004 Ring
110 ZGAQ-04005 Ring
110 ZGAQ-04006 Ring
110 ZGAQ-04009 Ring
110 ZGAQ-04021 Ring
110 ZGAQ-04019 Ring
110 ZGAQ-04018 Ring
110 ZGAQ-04016 Ring
110 ZGAQ-04015 Ring
110 ZGAQ-04014 Ring
110 ZGAQ-04013 Ring
110 ZGAQ-04011 Ring
110 ZGAQ-04010 Ring
110 ZGAQ-04008 Ring
160 ZGAQ-01146 Bearing-Taper Roller
190 ZGAQ-02303 Seal-Shaft
210 ZGAQ-04460 Flange-Input
220 ZGAQ-03579 Sheet-Screen
270 ZGAQ-01151 Washer
290 ZGAQ-02304 Nut-Hex
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
