Каталог запасных частей к технике: Hyundai R170W-9. ENGINE HOOD

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM (WITHOUT PREFILTER) FUEL SYSTEM (WITH PREFILTER) FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT AIR CONDITIONER MOUNTING AIR CONDITIONER UNIT (SEMI AUTO) HEATER MOUNTING HEATER UNIT (SEMI AUTO) RH ELECTRIC LH ELECTRIC LOWER ELECTRIC BOOM ELECTRIC (STD) BOOM ELECTRIC (ADJUST BOOM) ENGINE ELECTRIC ELECTRIC BOX CAB ELECTRIC 1 CAB ELECTRIC 2 CABIN ROOM ELECTRIC CLUSTER CLUSTER (OPTION) BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX AIR COMPRESSOR PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING (TRAVEL) UPPER HYD PIPING 1 (ADJUST BOOM, #0005-) UPPER HYD PIPING 2 (ADJUST BOOM, #0005-) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (BOTTOM 1) PILOT HYD PIPING (BOTTOM 2) PILOT HYD PIPING (BASE 1) PILOT HYD PIPING (BASE 2) PILOT HYD PIPING (BASE 3) PILOT HYD PIPING (4 OUTRIGGER) POWER TRAIN HYD PIPING 1 POWER TRAIN HYD PIPING 2 POWER TRAIN HYD PIPING 3 LOWER HYD PIPING 1 LOWER HYD PIPING 2 LOWER HYD PIPING (REAR BLADE, -#0089) LOWER HYD PIPING (REAR BLADE, #0090-) LOWER HYD PIPING (2-OUTRIGGER, -#0089) LOWER HYD PIPING (2-OUTRIGGER, #0090-) LOWER HYD PIPING 1 (F/OUT, R/BLADE) LOWER HYD PIPING 2 (F/OUT, R/DOZ, -#0089) LOWER HYD PIPING 2 (F/OUT, R/DOZ, #0090-) LOWER HYD PIPING 1 (4-OUTRIGGER) LOWER HYD PIPING 2 (4-OUTRIGGER, -#0089) LOWER HYD PIPING 2 (4-OUTRIGGER, #0090-) LOWER HYD PIPING 1 (F/BLD, R/OUT, -#0089) LOWER HYD PIPING 1 (F/BLD, R/OUT, #0090-) LOWER HYD PIPING 2 (F/BLD, R/OUT, -#0089) LOWER HYD PIPING 2 (F/BLD, R/OUT, #0090-) LOWER HYD PIPING 1 (F/BLD, R/BLD, -#0089) LOWER HYD PIPING 1 (F/BLD, R/BLD, #0090-) LOWER HYD PIPING 2 (F/BLD, R/BLD, -#0089) LOWER HYD PIPING 2 (F/BLD, R/BLD, #0090-) LOWER HYD PIPING (F/BLADE, #0010-#0089) LOWER HYD PIPING (F/BLADE, #0090-) BOOM HYD PIPING (5.1M, STD) BOOM HYD PIPING (ADJUST BOOM) BOOM GREASE LUB SYSTEM (5.1M, STD) BOOM GREASE LUB SYSTEM (ADJUST BOOM) BOOM SAFETY LOCK SYSTEM QUICK CLAMP HYD PIPING ARM HYD PIPING ARM HYD PIPING (3.1M, LONG) ARM SAFETY LOCK SYSTEM ATTACH PIPING KIT (S & D/ACTING) SINGLE ACTING MAIN PIPING KIT S/ACTING MAIN PIPING KIT (ADJUST BOOM) DOUBLE ACTING MAIN PIPING KIT 1 DOUBLE ACTING MAIN PIPING KIT 2 D/ACTING MAIN PIPING KIT 1 (ADJUST BOOM) D/ACTING MAIN PIPING KIT 2 (ADJUST BOOM) SINGLE PEDAL (DOUBLE ACTING) MAIN PUMP REGULATOR GEAR PUMP MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR SWING REDUCTION GEAR REMOTE CONTROL LEVER DOZER CONTROL LEVER ACCELERATOR PEDAL (STD) ACCELERATOR PEDAL (2 WAY, OPTION) TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2) COUNTER BALANCE VALVE TURNING JOINT (-#0089) TURNING JOINT (#0090-) TURNING JOINT SUB ASSY (#0090-) BOOM CYLINDER BOOM CYLINDER (ADJUST BOOM) ARM CYLINDER BUCKET CYLINDER DOZER BLADE CYLINDER OUTRIGGER CYLINDER ADJUST CYLINDER SOLENOID VALVE (-#0089) SOLENOID VALVE (#0090-) STEERING VALVE TRAVEL CONTROL VALVE BRAKE SUPPLY VALVE BRAKE VALVE QUICK CLAMP (HOOK TYPE 1) QUICK CLAMP (CLOSE TYPE 1) QUICK CLAMP (HOOK TYPE 2) QUICK CLAMP (CLOSE TYPE 2) QUICK CLAMP CYLINDER BREAKER ASSY (1/2) BREAKER ASSY (2/2) POWER TRAIN MOUNTING PROPELLER SHAFT (-#0067) PROPELLER SHAFT (#0068-) OSCILLATING CYLINDER FRONT AXLE INPUT GROUP (-#0192) FRONT AXLE DIFFERENTIAL (-#0192) FRONT AXLE CASING (-#0192) FRONT AXLE JOINT HOUSING (-#0192) FRONT AXLE OUTPUT GROUP (-#0192) FRONT AXLE STEERING GEAR (-#0192) FRONT AXLE UNIVERSAL JOINT (-#0192) REAR AXLE INPUT GROUP (-#0192) REAR AXLE DIFFERENTIAL (-#0192) REAR AXLE CASING (-#0192) REAR AXLE HUB CARRIER (-#0192) REAR AXLE OUTPUT GROUP (-#0192) TRANSMISSION INPUT HOUSING TRANSMISSION HOUSING TRANSMISSION MULTI-DISC BRAKE TRANSMISSION COUPLING TRANSMISSION PLANETARY DRIVE TRANSMISSION OUTPUT GROUP TRANSMISSION GEAR SHIFT SENSOR TRANSMISSION OIL PIPE FRONT AXLE INPUT GROUP FRONT AXLE DIFFERENTIAL (#0193-) FRONT AXLE CASING (#0193-) FRONT AXLE JOINT HOUSING (#0193-) FRONT AXLE OUTPUT GROUP (#0193-) FRONT AXLE STEERING GEAR (#0193-) FRONT AXLE UNIVERSAL JOINT (#0193-) REAR AXLE INPUT GROUP (#0193-) REAR AXLE DIFFERENTIAL (#0193-) REAR AXLE CASING (#0193-) REAR AXLE HUB CARRIER (#0193-) REAR AXLE OUTPUT GROUP (#0193-) CAB MOUNTING CAB ASSY (1/4) CABIN A/S KIT CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX 1 (LH, LOCAL) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) CONSOLE BOX (RH, LOCAL) SEAT BASE ASSY SEAT BASE ASSY (LOCAL) SEAT (SUSPENSION, HEATED, STD) SEAT (SUSPENSION) SEAT (SUSPENSION, 2"AIR RIDE, HEATED) SEAT (SUSPENSION, 2"AIR RIDE) SEAT (LOCAL) STORAGE BOX ASSY BOTTOM PLATE MOUNTING STEERING COLUMN COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & FENDER SWING RING GREASE LUB SYSTEM DOZER BLADE-REAR DOZER BLADE-FRONT OUTRIGGER MOUNTING-FRONT OUTRIGGER MOUNTING-REAR BOOM MOUNTING (5.1M, STD) BOOM MOUNTING (ADJUST BOOM) BOOM (5.1M, STD) ADJUST BOOM ARM BUCKET CONTROL GROUP BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (4 TEETH) BUCKET (6 TEETH) BUCKET (0.69M3 SAE HEAPED, HEAVY DUTY) BUCKET (0.75M3 SAE HEAPED D/CLEANING) TOOLS HCE-DT KIT DECALS MANUALS AIR INTAKE HEATER DATAPLATE REAR GEAR HOUSING CYLINDER BLOCK CRANKSHAFT & MAIN BEARINGS VALVE TAPPET CRANKCASE BREATHER COOLANT HEATER STARTING AID VIBRATION DAMPER REAR GEAR TRAIN ACCESSORY THERMOSTAT ALTERNATOR MOUNTING FAN DRIVE FUEL FILTER FUEL FILTER PLUMBING FLYWHEEL HOUSING FUEL INLET FITTING FUEL PUMP FUEL PLUMBING FLYWHEEL FRONT GEAR COVER HEATER PLUMBING AIR INTAKE HOSE AIR INTAKE CONNECTION MOUNTING AIR INTAKE CONNECTION ENGINE OIL COOLER LUBRICATING OIL FILTER OIL LEVEL GAUGE AIR INTAKE MANIFOLD AIR TRANSFER CONNECTION LIFTING ARRANGEMENT LUBRICATING OIL PUMP OIL FILLER ARRANGMENT OIL PAN ENGINE CONTROL MODULE CAMSHAFT CONNECTING ROD & PISTON FUEL INJECTIOR FUEL INJECTOR PLUMBING CYLINDER HEAD TURBOCHARGER REMOTE OIL DRAIN ROCKER LEVERS ENGINE COOLANT VENT OIL LEVEL SENSOR HEAT SHIELD 1 HEAT SHIELD 2 STARTING MOTOR MOUNTING FAN PILOT SPACER TURBOCHARGER ARRANGEMENT TORQUE CONVERTER OIL COOLER TURBOCHARGER PLUMBING VALVE COVER WATER INLET CONNECTION WATER OUTLET CONNECTION WATER PUMP DRIVE WATER PUMP МОДЕЛИ BELT TENSIONER ENGINE CONTROL MODULE HARNESS EXHAUST OUTLET CONNECTION

71Q5-61000

71Q5-61001

1

2

3

4

5

6

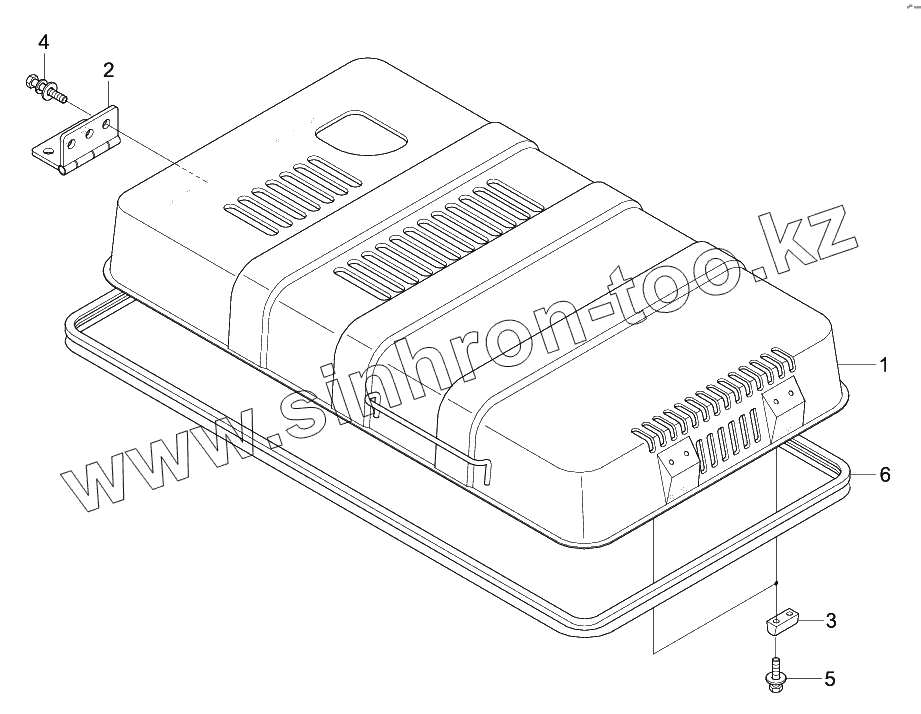

Позиция на иллюстрации	Заводской номер детали		Название детали
71Q5-61000	71Q5-61000		ENGINE HOOD ASSY
71Q5-61001	71Q5-61001		ENGINE HOOD ASSY
1	71Q5-61100		ENGINE HOOD WA
2	71Q4-51300		Hinge Assy
3	71N6-51140		STOPPER-A
4	71Q6-50025		BOLT-W/WASHER
5	S132-063056		SCREW-W/WASHER
6	S771-057500		Weather Strip

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
