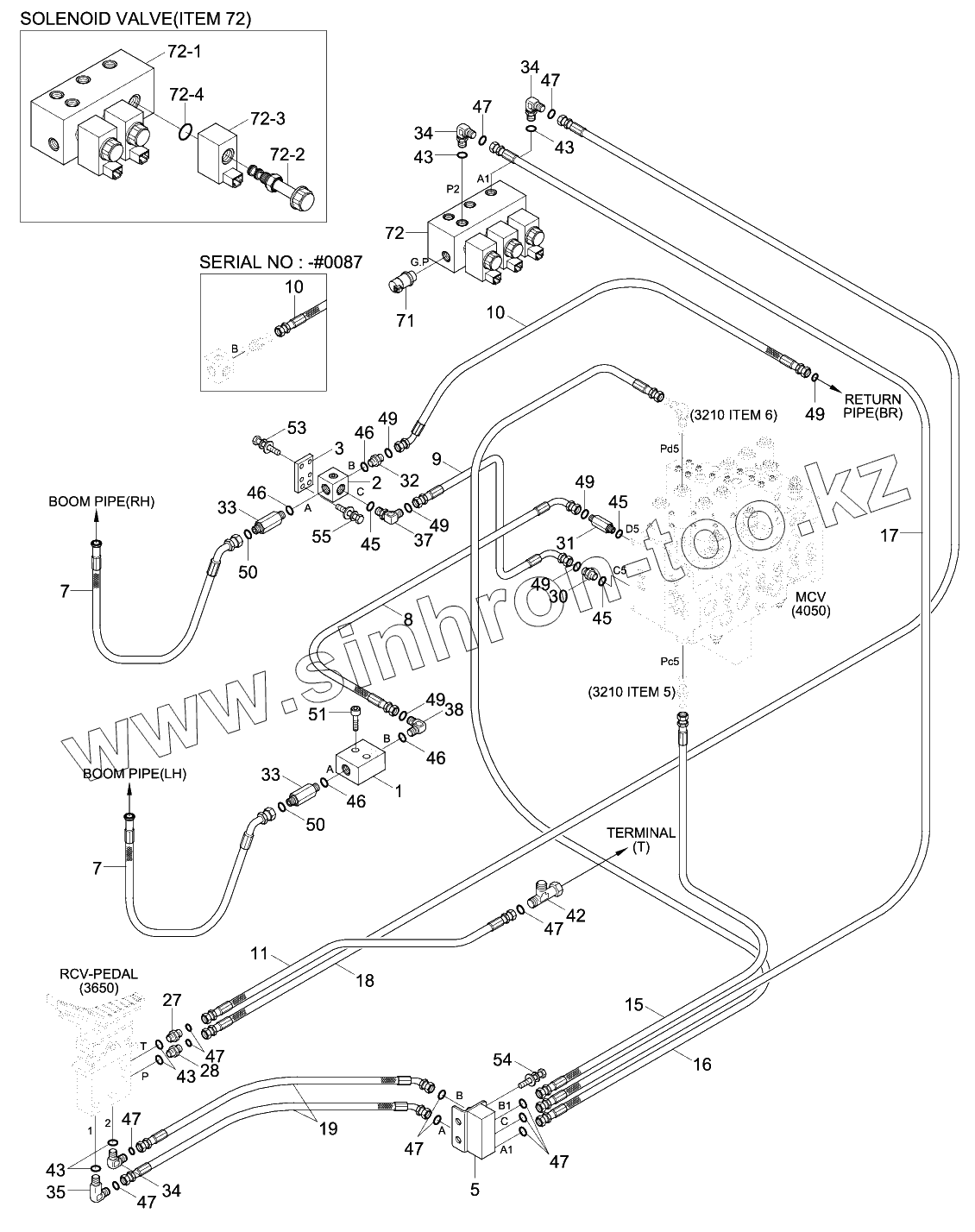

  5. DOUBLE ACTING MAIN PIPING KIT 1

Каталог запасных частей к технике: Hyundai R170W-9. DOUBLE ACTING MAIN PIPING KIT 1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
10
10
10
11
15
16
17
18
18
19
2
27
28
3
30
31
32
33
33
34
34
34
35
37
38
42
43
43
43
43
45
45
45
46
46
46
46
47
47
47
47
47
47
47
47
49
49
49
49
49
49
5
50
50
51
53
54
55
7
7
71
71
72
72-1
72-2
72-3
72-4
8
9
Позиция на иллюстрации Заводской номер детали Название детали
31Q5-93210 31Q5-93210 D/ACT MAIN PIPING KIT
1 31N5-94710 Block-Hose Joint
10 P923-123029 Hose Assy-Orfs 0x45
10 P923-123028 HOSE ASSY-ORFS 0X45
11 P910-042020 Hose Assy-Orfs 0x0
15 P910-042048 Hose Assy-Orfs 0x0
16 P910-042058 Hose Assy-Orfs 0x0
17 P910-042066 HOSE ASSY-ORFS 0X0
18 P910-042086 HOSE ASSY-ORFS 0X0
18 P910-042083 HOSE ASSY-ORFS 0X0
19 P920-042022 Hose Assy-Orfs 0x45
2 31N4-95260 Joint-3 Way
27 X500-110001 CONNECTOR-ORFS
28 31N6-25060 FILTER-LAST GUARD
3 31E9-95010 BRACKET-3 WAY JOINT
30 X500-110004 CONNECTOR-ORFS
31 X511-112543 Connector-Long, Orfs
32 31N4-95290 Connector
33 X511-116556 Connector-Long, Orfs
34 X520-110001 ELBOW-90,ORFS
35 31N6-25110 ELBOW-90,LONG
37 X520-110004 ELBOW-90,ORFS
38 X520-110018 Elbow-90, Orfs
42 X840-515151 Tee-R/Type, Swivel, Orfs
43 S631-011004 O-RING
45 S631-024004 O-RING
46 S631-029004 O-RING
47 S621-011001 O-RING
49 S621-018001 O-RING
5 31Q6-90460 5-SHUTTLE ASSY
50 S621-021001 O-RING
51 S109-120556 Bolt-Socket
53 S035-083026 BOLT-W/WASHER
54 S037-102026 BOLT-W/WASHER
55 S037-123526 BOLT-W/WASHER
7 P974-166324 Hose Assy-Orfs 0x45
71 31Q8-40520 Sensor-Pressure
71 31Q4-40830 SENSOR-PRESSURE
72 31Q6-20050 VALVE-SOLENOID
72-1 34Q6-20050 MANIFOLD
72-2 XKAL-00016 Solenoid Valve
72-3 XKAL-00050 Coil-2
72-4 230.00.064.0 SEAL
8 P933-126019 Hose Assy-Orfs 0x90
9 P923-126014 HOSE ASSY-ORFS 0X45
