Каталог запасных частей к технике: Hyundai R170W-9. CAB ELECTRIC 2
1
1-1
10
11
12
13
13
13-1
13-1
13-11
13-11
13-2
13-2
13-3
14
14
14
14-1
15
15
15
15
15
15
16
16
16
16
17
17
17
18
18
19
19
2
2-1
20
21
24
25
26
27
27
28
28
28-1
28-1
29
29
29
29
3
30
30
31
32
33
34
4
5
5
5
5
6
7
8
8
9
33-1
33-2
33-3
33-4
33-5
33-6
33-7
6

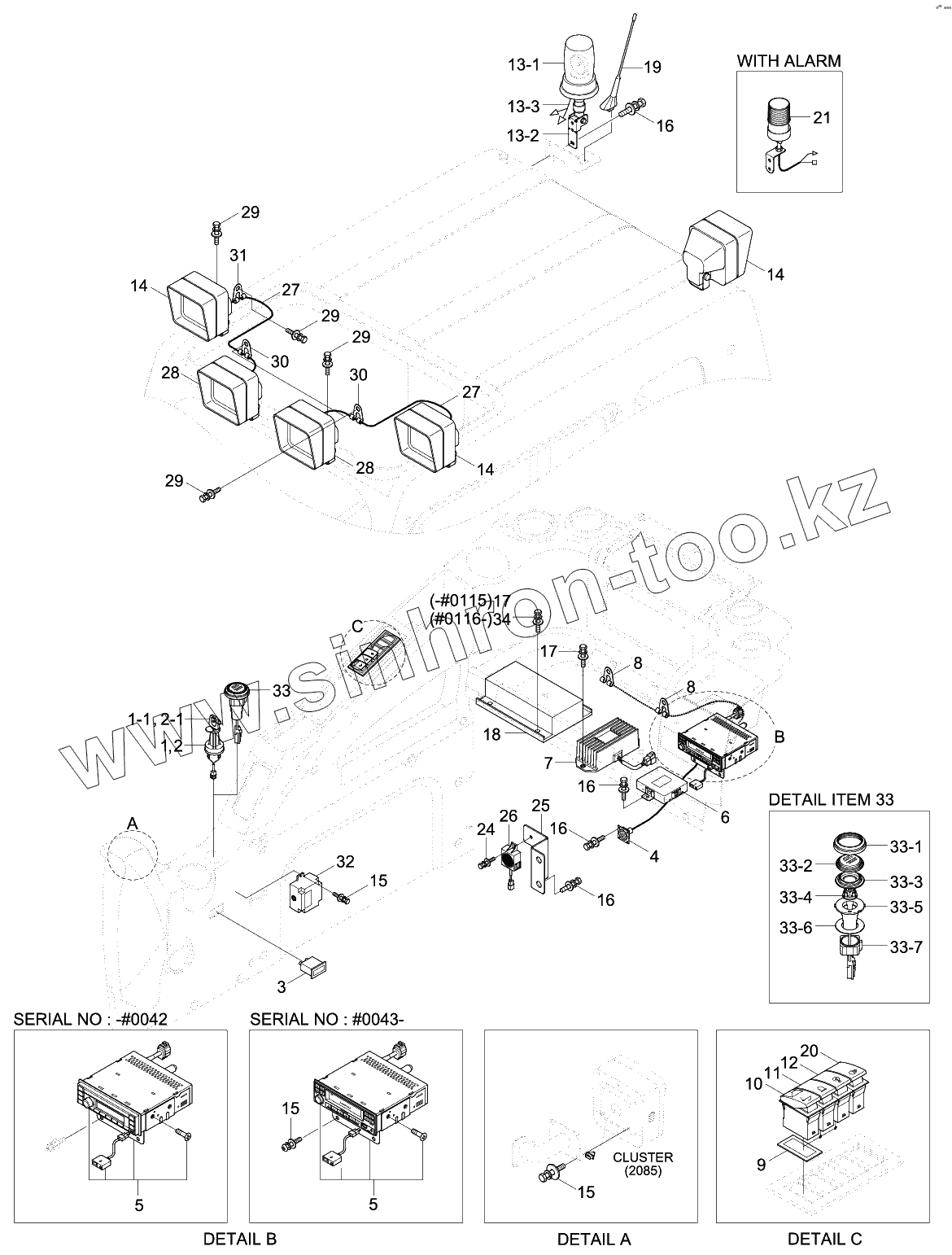

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 21Q4-00070 | START KEY ASSY | |
| 1-1 | 21Q4-00090 | START KEY | |
| 10 | 21Q4-22131 | SWITCH-QUICK CLAMP | |
| 11 | 21Q4-22141 | SWITCH-BEACON | |
| 12 | 21Q4-22111 | SWITCH-OVERLOAD | |
| 13 | 21Q4-30380 | Beacon Lamp Assy | |
| 13 | 21Q4-30381 | BEACON LAMP ASSY | |
| 13-1 | 21Q4-20700 | BEACON LAMP | |
| 13-1 | 21Q4-30700 | Beacon Lamp | |
| 13-11 | 21EK-10330 | BULB-H1, 70W | |
| 13-11 | H1U64155 | Bulb-H1, 70w | |
| 13-2 | 21Q4-20600 | Bracket-Tilt | |
| 13-2 | 21Q4-31000 | BRACKET-TILT | |
| 13-3 | 21N4-02830 | HARNESS-BEACON LAMP | |
| 14 | 21QB-60700 | WORK LAMP ASSY | |
| 14-1 | S866-240650 | BULB | |
| 15 | S035-081526 | BOLT-W/WASHER | |
| 15 | S035-081526 | BOLT-W/WASHER | |
| 16 | S035-061526 | BOLT-W/WASHER | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 18 | 21Q8-32201 | Control Unit-Remote | |
| 18 | 21Q8-32202 | CONTROL UNIT-REMOTE | |
| 19 | 21Q8-32210 | Antenna-Satellite | |
| 19 | 21Q8-32211 | ANTENNA-SATELLITE | |
| 2 | 21Q4-00060 | START KEY ASSY | |
| 2-1 | 21N3-00030 | Key-Start | |
| 20 | 21Q4-22311 | Switch-Rear Lamp | |
| 21 | 21QA-30700 | BEACON LAMP ASSY | |
| 24 | S035-051526 | BOLT-W/WASHER | |
| 25 | 21Q6-13420 | BRACKET WA | |
| 26 | 21Q6-13400 | BUZZER-WARNING | |
| 27 | 21Q8-23100 | HARNESS-LAMP | |
| 28 | 21QB-60700 | WORK LAMP ASSY | |
| 28-1 | S866-240650 | BULB | |
| 29 | S037-102026 | BOLT-W/WASHER | |
| 3 | 21MH-00660 | HOUR METER | |
| 30 | 25D1-10650 | CLIP ASSY | |
| 31 | 25D1-10640 | CLIP ASSY | |
| 32 | 21Q6-37400 | CONTROLLER-START | |
| 33 | 21Q6-37300 | BUTTON-START | |
| 34 | S035-062026 | BOLT-W/WASHER | |
| 4 | 21Q7-10901 | HARNESS-SERVICE TOOL | |
| 5 | 21Q6-15600 | Radio & Usb Player | |
| 5 | 21Q8-15700 | RADIO & USB PLAYER | |
| 6 | 21Q6-30240 | BLUETOOTH HANDSFREE | |
| 7 | 21Q6-20410 | CONVERTER-DC DC | |
| 8 | 21E9-00170 | CLIP-HARNESS | |
| 9 | 21E6-10460 | COVER | |
| 33-1 | 21Q6-37310 | CASE-FRONT | |
| 33-2 | 21Q6-37320 | COVER-SWITCH | |
| 33-3 | 21Q6-37330 | GUIDE | |
| 33-4 | 21Q6-37340 | BUTTON-PBA | |
| 33-5 | 21Q6-37350 | CASE-REAR | |
| 33-6 | 21Q6-37360 | GASKET | |
| 33-7 | 21Q6-37370 | CLAMP | |
| 6 | 21Q6-30300 | Control Unit-Handsfree |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
