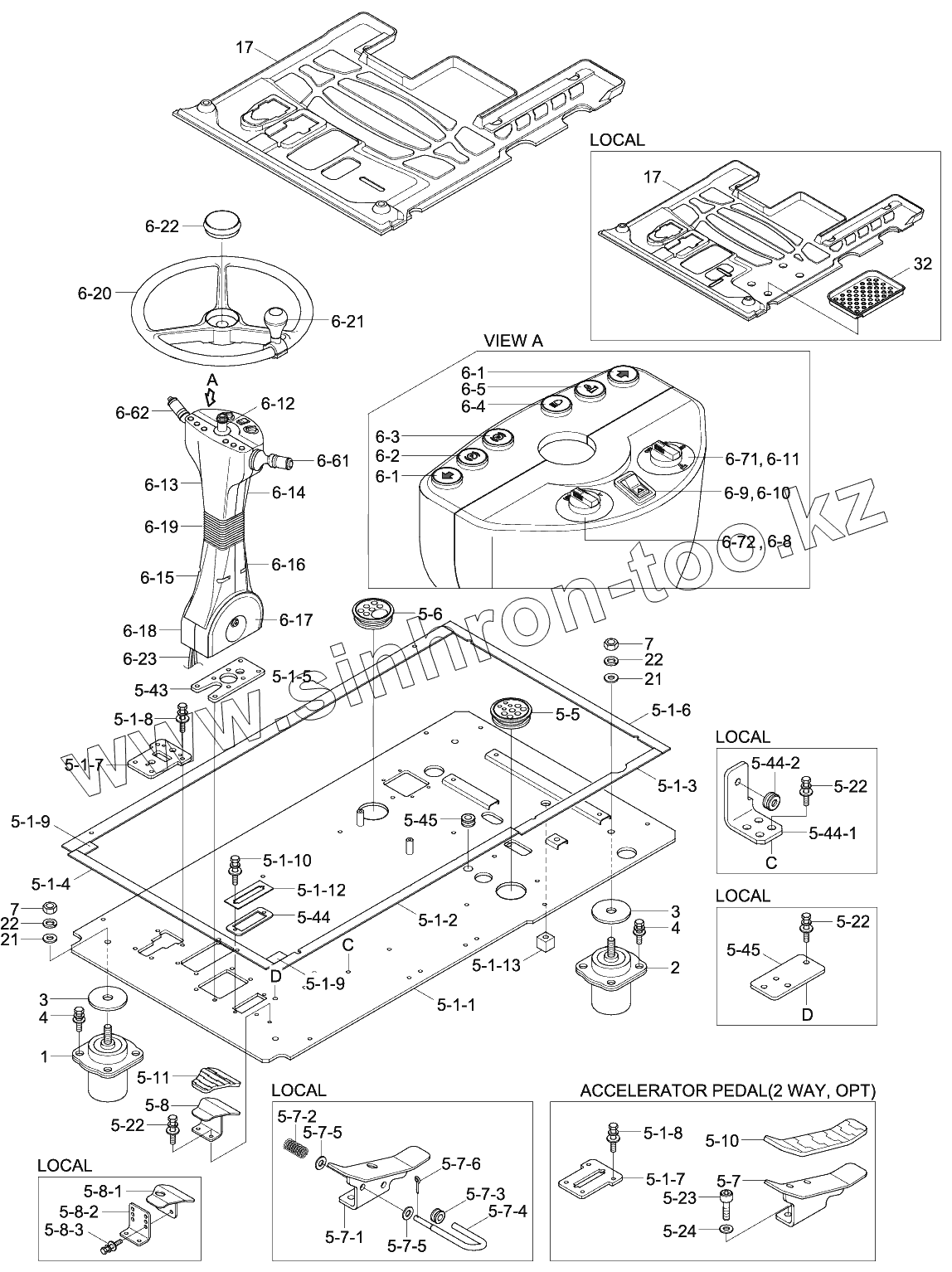

Каталог запасных частей к технике: Hyundai R170W-9. BOTTOM PLATE MOUNTING
1
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
2
21
21
22
22
3
3
32
32
4
4
5
5-1
5-1-1
5-1-10
5-1-12
5-1-13
5-1-2
5-1-3
5-1-4
5-1-5
5-1-6
5-1-7
5-1-7
5-1-7
5-1-7
5-1-8
5-1-8
5-1-9
5-1-9
5-10
5-11
5-22
5-22
5-22
5-22
5-22
5-22
5-23
5-24
5-43
5-44
5-441
5-442
5-45
5-45
5-45
5-45
5-5
5-6
5-7
5-7-1
5-7-2
5-7-3
5-7-4
5-7-5
5-7-5
5-7-6
5-8
5-8-1
5-8-2
5-8-3
6
6-1
6-1
6-10
6-11
6-12
6-13
6-14
6-15
6-16
6-17
6-18
6-19
6-2
6-20
6-21
6-22
6-23
6-3
6-4
6-5
6-61
6-62
6-71
6-72
6-8
6-9
7
7
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 71Q6-22730 | VISCOUS MOUNT | |
| 17 | 71Q4-22360 | Mat-Floor | |
| 17 | 71Q4-23010 | Mat-Floor | |
| 17 | 71Q4-23020 | Mat-Floor | |
| 17 | 71Q4-23030 | Mat-Floor | |
| 17 | 71Q4-23041 | MAT-FLOOR | |
| 17 | 71Q4-23081 | MAT FLOOR | |
| 17 | 71Q4-23071 | MAT-FLOOR | |
| 17 | 71Q4-23061 | MAT FLOOR | |
| 2 | 71Q6-22820 | VISCOUS MOUNT | |
| 21 | S403-162006 | WASHER-PLAIN | |
| 22 | S411-160006 | WASHER-SPRING | |
| 3 | 71E9-10650-DA | WASHER | |
| 32 | 71Q6-23390 | TRAY-RUBBER | |
| 32 | 71Q6-23392 | TRAY-RUBBER | |
| 4 | S037-103026 | BOLT-W/WASHER | |
| 5 | BOTTOMPLATE | BOTTOM PLATE SUB ASSY | |
| 5-1 | 71Q4-10200 | Bottom Plate Assy | |
| 5-1-1 | 71Q4-10210 | Bottom Plate Wa | |
| 5-1-10 | S037-102026 | BOLT-W/WASHER | |
| 5-1-12 | 71Q6-10300 | PAD-RUBBER | |
| 5-1-13 | 71Q6-10310 | SPONGE | |
| 5-1-2 | 71Q6-10120 | PAD-RUBBER | |
| 5-1-3 | 71Q6-10130 | PAD-RUBBER | |
| 5-1-4 | 71Q6-10140 | PAD-RUBBER | |
| 5-1-5 | 71Q6-10150 | PAD-RUBBER | |
| 5-1-6 | 71Q6-10160 | PAD-RUBBER | |
| 5-1-7 | 71Q4-10300 | Plate Wa | |
| 5-1-7 | 71Q4-10290 | Plate Wa | |
| 5-1-8 | S035-082526 | BOLT-W/WASHER | |
| 5-1-9 | 71Q6-22780 | PAD-RUBBER | |
| 5-10 | 71Q6-22740 | RUBBER-PEDAL | |
| 5-11 | 71Q6-20670 | RUBBER-FOOT REST,LH | |
| 5-22 | S037-102526 | BOLT-W/WASHER | |
| 5-22 | S037-102526 | BOLT-W/WASHER | |
| 5-23 | S037-102026 | BOLT-W/WASHER | |
| 5-24 | S403-10200B | WASHER-PLAIN | |
| 5-43 | 71Q4-10180 | Adapter | |
| 5-44 | 71Q6-22790 | COVER-PLATE | |
| 5-441 | 71Q4-10320 | BRACKET | |
| 5-442 | S681-100800 | GROMMET | |
| 5-45 | S661-301200 | CAP-RUBBER | |
| 5-45 | 71Q4-10240 | PLATE WA | |
| 5-5 | 71Q6-20990 | GROMMET-PILOT HOSE | |
| 5-6 | 71Q6-22960 | GROMMET-RH | |
| 5-7 | 71Q4-20561 | Pedal Wa-Lh | |
| 5-7-1 | 71Q4-20561 | Pedal Wa-Lh | |
| 5-7-2 | 71Q4-20610 | SPRING | |
| 5-7-3 | S681-100800 | GROMMET | |
| 5-7-4 | 71Q4-20600 | BAR | |
| 5-7-5 | S403-08200B | WASHER-PLAIN | |
| 5-7-6 | S461-250202 | PIN-SPLIT | |
| 5-8 | 71Q6-20530 | FOOT REST WA-LH | |
| 5-8-1 | 71Q4-23370 | BRACKET | |
| 5-8-2 | 71Q4-23390 | FOOT REST WA | |
| 5-8-3 | S035-082526 | BOLT-W/WASHER | |
| 6 | 71Q4-10231 | Steering Column Assy | |
| 6-1 | ZTAZ-00051 | Signal-Turning | |
| 6-10 | ZTAZ-00037 | Decal-Hazard | |
| 6-11 | ZTAZ-00060 | Decal-Ram Lock | |
| 6-12 | STEERINGCOLUMN | STEERING COLUMN | |
| 6-13 | ZTAZ-00062 | Cover-Front Upper | |
| 6-14 | ZTAZ-00063 | Cover-Rear Upper | |
| 6-15 | ZTAZ-00064 | Cover-Front Lower | |
| 6-16 | ZTAZ-00065 | Cover-Rear Lower | |
| 6-17 | ZTAZ-00066 | Protection-Left | |
| 6-18 | ZTAZ-00067 | Protection-Right | |
| 6-19 | ZTAZ-00068 | Bellow-Rubber | |
| 6-2 | ZTAZ-00052 | Pilot Lamp-Parking | |
| 6-20 | ZTAZ-00069 | Wheel-Steering | |
| 6-21 | ZTAZ-00070 | Knob | |
| 6-22 | ZTAZ-00032 | Cap-Center | |
| 6-23 | ZTAZ-00071 | Harness | |
| 6-3 | ZTAZ-00053 | Pilot Lamp-Work | |
| 6-4 | ZTAZ-00054 | Pilot Lamp-High Beam | |
| 6-5 | ZTAZ-00055 | Pilot Lamp-Ram Lock | |
| 6-61 | ZTAZ-00072 | Steering Column Sw-Lh | |
| 6-62 | ZTAZ-00073 | Steering Column Sw-Rh | |
| 6-71 | ZTAZ-00057 | Switch-Select | |
| 6-72 | ZTAZ-00057 | Switch-Select | |
| 6-8 | ZTAZ-00058 | Decal-Pwt | |
| 6-9 | ZTAZ-00059 | Switch-Hazard | |
| 7 | S205-16100B | NUT-HEX |
