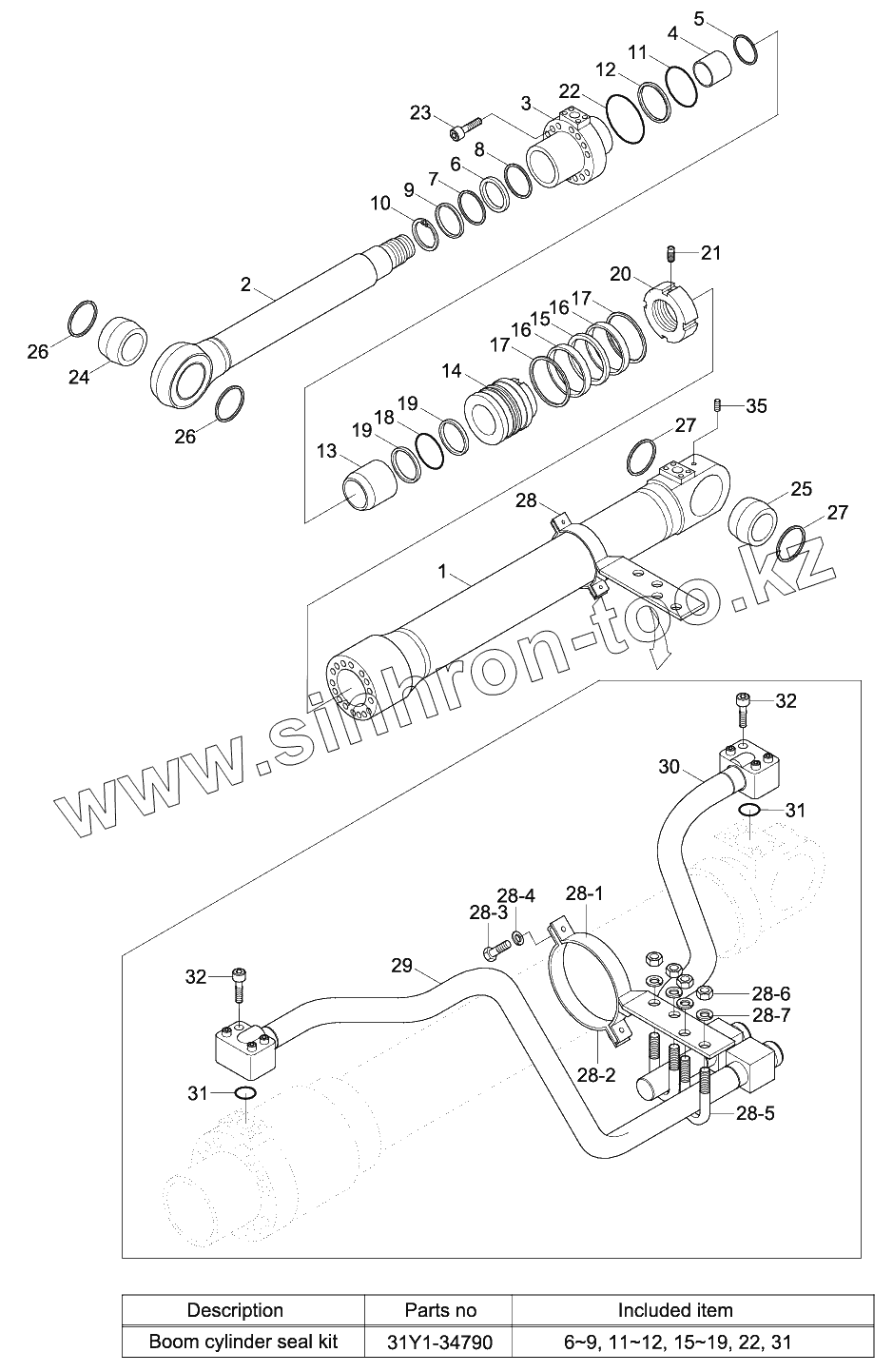

Каталог запасных частей к технике: Hyundai R170W-9. BOOM CYLINDER
1
10
13
14
2
20
21
23
24
24
25
25
26
26
27
27
28
28
28-1
28-1
28-2
28-3
28-4
28-5
28-6
28-7
29
29
29
29
3
30
30
32
32
35
4
5
31Y1-34790
11
11
12
12
15
15
16
16
17
17
18
19
19
19
22
22
31
31
31
6
6
7
8
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q5-50112 | 31Q5-50112 | Boom Cylinder-Lh | |
| 31Q5-50113 | 31Q5-50113 | BOOM CYLINDER ASSY, LH | |
| 31Q5-50122 | 31Q5-50122 | Boom Cylinder-Rh | |
| 31Q5-50123 | 31Q5-50123 | BOOM CYLINDER ASSY, RH | |
| 31Y1-34611 | 31Y1-34611 | Boom Cyl Sub Assy | |
| 1 | 31Y1-34620 | Tube Assy | |
| 10 | Y190-094000 | Ring-Snap | |
| 13 | 31YC-26051 | Ring-Cushion | |
| 14 | 31Y1-31130 | Piston | |
| 2 | 31Y1-34671 | Rod Assy | |
| 20 | 31YC-68030 | Nut-Lock | |
| 21 | S114-080144 | Screw-Set | |
| 23 | S109-160754 | Bolt-Socket | |
| 24 | 61Q6-98910 | Bushing-Pin | |
| 24 | 61QH-72810 | Bushing-Pin | |
| 25 | 61Q6-98810 | Bushing-Pin | |
| 25 | 61QH-72610 | Bushing-Pin | |
| 26 | Y020-075100 | Seal-Dust, Dli, Kpu | |
| 27 | Y020-070000 | Seal-Dust, Dli, Kpu | |
| 28 | 31Y1-34730 | Band Assy-Lh | |
| 28 | 31Y1-34740 | Band Assy-Rh | |
| 28-1 | 31Y1-34750 | Band Sub Assy-Lh | |
| 28-1 | 31Y1-34760 | Band Sub Assy-Rh | |
| 28-2 | 31YC-31060 | Band | |
| 28-3 | S011-100352 | BOLT-HEX | |
| 28-4 | S411-100002 | WASHER-SPRING | |
| 28-5 | S070-052738 | U-Bolt | |
| 28-6 | S205-101002 | NUT-HEX | |
| 28-7 | S411-100002 | WASHER-SPRING | |
| 29 | 31Y1-34771 | Pipe Assy-R, Lh | |
| 29 | 31Y1-35041 | Pipe Assy-Rv, Lh | |
| 29 | 31Y1-34781 | Pipe Assy-R, Rh | |
| 29 | 31Y1-35051 | Pipe Assy-Rv, Rh | |
| 3 | 31Y1-34710 | Gland | |
| 30 | 31Y1-37790 | Pipe Assy-B, Lh | |
| 30 | 31Y1-37800 | Pipe Assy-B, Rh | |
| 32 | S107-100454 | Bolt-Socket | |
| 35 | P220-430201 | Plug-Hex | |
| 4 | S732-080030 | Bushing-Dd2 | |
| 5 | Y191-086000 | Ring-Snap | |
| 31Y1-34790 | 31Y1-34790 | Seal Kit | |
| 11 | S632-110004 | O-Ring | |
| 12 | S642-110003 | Ring-Back Up | |
| 15 | Y420-115002 | Seal-Piston | |
| 16 | Y310-115003 | Ring-Wear | |
| 17 | Y440-115000 | Ring-Dust | |
| 18 | S632-060004 | O-Ring | |
| 19 | S642-060003 | Ring-Back Up | |
| 22 | S632-115004 | O-Ring | |
| 31 | Y171-019004 | O-RING | |
| 6 | Y220-080013 | Seal-Rod | |
| 7 | Y180-080020 | Ring-Back Up | |
| 8 | Y240-080012 | Ring-Buffer | |
| 9 | Y110-080011 | Wiper-Dust |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
