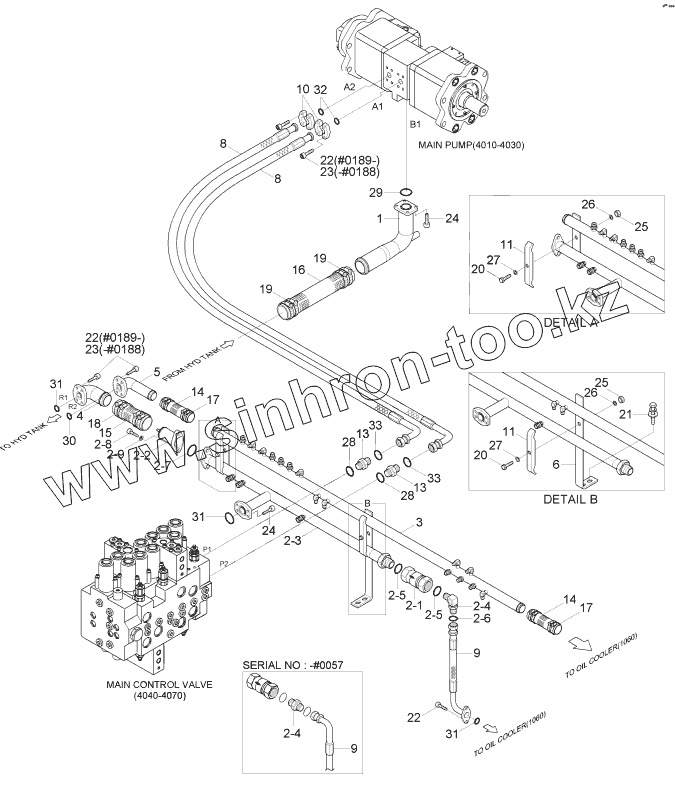

Каталог запасных частей к технике: Hyundai R170W-7. UPPER HYD PIPING (BASE)
26
31
1
2-1
2-2
2-3
2-3
2-3
2-4
2-4
2-4
2-5
2-5
2-6
2-7
2-8
2-9
3
3
3
4
4
5
5
6
6
8
8
8
8
9
9
9
9
10
11
11
13
13
14
14
15
15
15
16
17
17
18
18
19
19
20
20
20
21
22
22
22
23
23
24
24
25
25
27
27
28
28
29
30
32
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 26 | S403-12200B | WASHER-PLAIN | |
| 31 | Y172-003004 | O-Ring | |
| 1 | 31N5-11102 | Pipe Assy-Suction | |
| 2 | 31N5-1112-SUB | Pipe Sub Assy | |
| 2 | 31N5-11400 | Pipe Sub Assy | |
| 2-1 | 31E9-0143 | Valve-Check | |
| 2-2 | 31N5-11150 | CHECK VALVE | |
| 2-3 | 31N5-11121 | Pipe Assy-Return | |
| 2-3 | 31N5-11122 | Pipe Assy-Return | |
| 2-3 | 32N5-11120 | Pipe Assy | |
| 2-4 | X500-110023 | Connector-Orfs | |
| 2-4 | X520-110022 | Elbow-90,Orfs | |
| 2-5 | S631-044004 | O-Ring | |
| 2-6 | S621-025001 | O-RING | |
| 2-7 | Y172-003004 | O-Ring | |
| 2-8 | S109-120456 | Bolt-Socket | |
| 2-9 | S403-12200B | WASHER-PLAIN | |
| 3 | 31N5-11132 | Pipe Assy-Return | |
| 3 | 31N5-11133 | Pipe Assy-Return | |
| 3 | 32N5-11130 | Pipe Assy | |
| 4 | 31N5-11160 | Pipe Assy-Return | |
| 4 | 32N5-11160 | Pipe Wa | |
| 5 | 31N4-12291 | Pipe Assy | |
| 5 | 32N5-12280 | Pipe Wa | |
| 6 | 31N5-10151 | Bracket-Return | |
| 6 | 31N4-14250 | Bracket-R/Pipe | |
| 8 | P993-127421 | Hose Assy-Orfs,Flg 0x90 | |
| 8 | 31N5-11210 | Hose Assy | |
| 9 | 31N5-11180FL | Hose Assy-Return | |
| 9 | 31N5-11181FL | Hose Assy-Return | |
| 10 | P174-120102 | Flange-Hyd, Split | |
| 11 | 31EG-12190 | Clamp-Pipe | |
| 13 | X500-110004 | CONNECTOR-ORFS | |
| 14 | P760-063019 | Hose-Rubber | |
| 15 | P760-073016 | Hose-Rubber | |
| 15 | P760-073019 | Hose-Rubber | |
| 15 | 31N4-15370 | Hose-Rubber | |
| 16 | P760-103025 | Hose-Rubber | |
| 17 | S572-570006 | Clamp-Hose, Wire Type | |
| 18 | S572-650006 | Clamp-Hose,Wire Type | |
| 18 | S572-640006 | Clamp-Hose, Wire Type | |
| 19 | S572-950006 | Clamp-Hose,Wire Type | |
| 20 | S017-120806 | Bolt-Hex | |
| 20 | S017-120706 | BOLT-HEX | |
| 21 | S037-123026 | BOLT-W/WASHER | |
| 22 | S109-100306 | BOLT-SOCKET | |
| 23 | S109-100356 | BOLT-SOCKET | |
| 24 | S109-120306 | BOLT-SOCKET | |
| 25 | S205-121006 | Nut-Hex | |
| 27 | S411-120006 | WASHER-SPRING | |
| 28 | S631-024004 | O-RING | |
| 29 | S631-071001 | O-Ring | |
| 30 | Y171-027004 | O-RING | |
| 32 | Y171-019004 | O-RING | |
| 33 | S621-018001 | O-RING |
