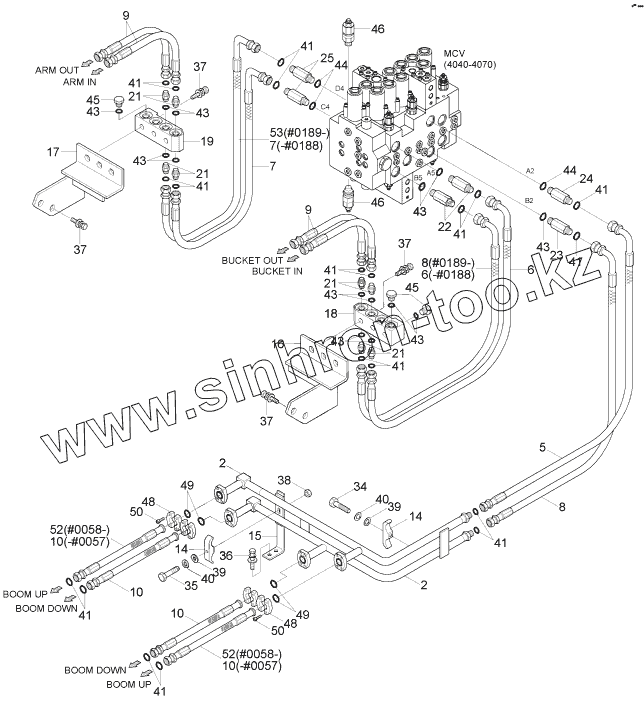

Каталог запасных частей к технике: Hyundai R170W-7. UPPER HYD PIPING 1 (ADJUST BOOM, #0022-)
2
2
5
6
6
7
7
7
8
8
9
9
10
10
10
10
14
14
15
16
17
18
19
21
21
21
21
22
23
24
25
34
35
36
37
37
37
37
38
39
39
40
40
41
41
41
41
41
41
41
41
41
41
41
43
43
43
43
43
43
43
43
44
44
45
45
46
46
48
48
49
49
50
50
50
52
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| HydPiping1 | HydPiping1 | Upper Hyd Piping 1 | |
| 2 | 31N5-10312 | Pipe Assy | |
| 5 | P930-127019 | Hose Assy-Orfs 0x90 | |
| 6 | P930-127016 | Hose Assy-Orfs 0x90 | |
| 7 | P930-127018 | Hose Assy-Orfs 0x90 | |
| 7 | P930-127021 | Hose Assy-Orfs 0x90 | |
| 8 | P930-127017 | Hose Assy-Orfs 0x90 | |
| 9 | P913-127035 | Hose Assy-Orfs 0x0 | |
| 10 | 31N5-10260 | Hose Assy | |
| 14 | 31N4-12200 | Clamp-Pipe | |
| 15 | 31N5-10340 | Bracket | |
| 16 | 31N5-10380 | Bracket-Lh, Manifold | |
| 17 | 31N5-10390 | Bracket-Rh, Manifold | |
| 18 | 35EA-12500 | Manifold-Lh | |
| 19 | 35EA-12510 | Manifold-Rh | |
| 21 | X500-110004 | CONNECTOR-ORFS | |
| 22 | X511-112548 | Connector-Long, Orfs | |
| 23 | X511-112546 | Connector-Long, Orfs | |
| 24 | X511-116546 | Connector-Long, Orfs | |
| 25 | X511-116548 | Connector-Long,Orfs | |
| 34 | S017-100602 | Bolt-Hex | |
| 35 | S017-100852 | Bolt-Hex | |
| 36 | S037-103022 | Bolt-W/Washer | |
| 37 | S037-123052 | Bolt-W/Washer | |
| 38 | S207-101002 | Nut-Hex | |
| 39 | S403-101002 | WASHER-PLAIN | |
| 40 | S411-100002 | WASHER-SPRING | |
| 41 | S621-018001 | O-RING | |
| 43 | S631-024004 | O-RING | |
| 44 | S631-029004 | O-RING | |
| 45 | P220-110105 | Plug-Hex | |
| 46 | XKBF-00095 | Relief Valve-Overload | |
| 48 | P173-120102 | FLANGE-HYD,SPLIT | |
| 49 | Y171-019004 | O-RING | |
| 50 | S109-100356 | BOLT-SOCKET | |
| 50 | S109-100306 | BOLT-SOCKET | |
| 52 | 31N5-53060 | Hose Assy | |
| 53 | P930-127020 | Hose Assy-Orfs 0x90 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
