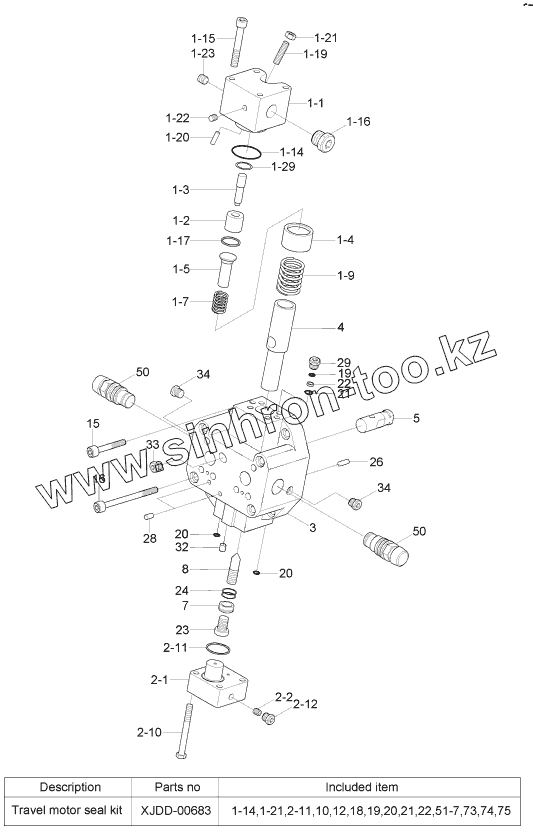

Каталог запасных частей к технике: Hyundai R170W-7. TRAVEL MOTOR (2/2, #0197-)
2-12
1-1
1-1
1-2
1-2
1-3
1-3
1-4
1-4
1-5
1-5
1-7
1-7
1-9
1-9
1-14
1-14
1-15
1-15
1-16
1-16
1-17
1-17
1-19
1-19
1-20
1-20
1-21
1-21
1-22
1-22
1-23
1-23
1-29
1-29
2
2
2-1
2-1
2-2
2-2
2-10
2-10
2-11
2-11
3
3
4
4
5
5
7
7
8
8
15
15
16
16
20
20
20
20
23
23
26
26
28
28
29
29
33
33
34
34
34
34
50
50
50
50
XJDD-00683
XJDD-00683
29
29
32
32
33
33
34
34
34
34
50
50
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2-12 | XJDD-00952 | SCREW-LOCKING | |
| XJDD-01227 | XJDD-01227 | CONTROL | |
| 1 | XJDD-01231 | CONTROL PART | |
| 1-1 | XJDD-01236 | HOUSING-CONTROL | |
| 1-2 | XJDD-01237 | BUSHING-CONTROL | |
| 1-3 | XJDD-01238 | PISTON-CONTROL | |
| 1-4 | XJDD-00947 | BUSHING-ADJUSTING | |
| 1-5 | XJDD-00948 | COLLAR-SPRING | |
| 1-7 | XJDD-00949 | SPRING-PRESSURE | |
| 1-9 | XJDD-00950 | SPRING-PRESSURE | |
| 1-14 | XJDD-00951 | O-RING | |
| 1-15 | XJDD-00864 | SCREW-SOCKET HEAD | |
| 1-16 | XJDD-00952 | SCREW-LOCKING | |
| 1-17 | XJDD-00953 | RING-RETAINING | |
| 1-19 | XJDD-00954 | PIN-THREADED | |
| 1-20 | XJDD-00955 | PIN-CYLINDER | |
| 1-21 | XJDD-00956 | NUT-SEAL LOCK | |
| 1-22 | XJDD-00036 | PIN-D/BREAK OFF | |
| 1-23 | XJDD-00054 | PIN-D/BREAK OFF | |
| 1-29 | XJDD-00957 | DISC-RETAINING | |
| 2 | XJDD-01232 | COVER | |
| 2-1 | XJDD-01239 | COVER | |
| 2-2 | XJDD-01240 | SCREW-THROTTLE | |
| 2-10 | XJDD-01241 | SOCKET-HEAD SCREW | |
| 2-11 | XJDD-00965 | O-RING | |
| 3 | XJDD-01233 | PORT PLATE | |
| 4 | XJDD-00932 | PISTON-POSITIONING | |
| 5 | XJDD-00933 | TRUNNION | |
| 7 | XJDD-00934 | Piston With Piston Rings | |
| 8 | XJDD-00935 | PIN-THREADED | |
| 15 | XJDD-00938 | SCREW-SOCKET HEAD | |
| 16 | XJDD-00939 | SCREW-SOCKET HEAD | |
| 20 | XJDD-00875 | O-RING | |
| 23 | XJDD-00940 | SCREW-SOCKET HEAD | |
| 26 | XJDD-00941 | PIN-CYLINDER | |
| 28 | XJDD-00017 | PLUG | |
| 29 | XJDD-01234 | PLUG | |
| 33 | XJDD-00967 | SCREW-LOCKING | |
| 34 | XJDD-00942 | SCREW-LOCKING | |
| 50 | XJDD-00943 | RELIEF VALVE | |
| XJDD-00683 | XJDD-00683 | Seal Kit | |
| 29 | XJDD-00621 | Plug | |
| 32 | XJDD-00181 | Pin-D/Break Off | |
| 33 | XJDD-00175 | Screw-Locking | |
| 34 | XJDD-00210 | Screw-Locking | |
| 50 | XJDD-00622 | Relief Valve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
