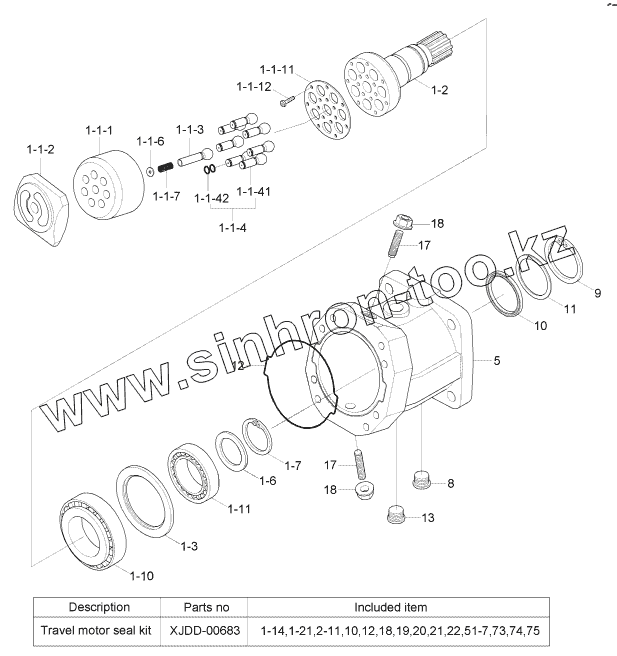

Каталог запасных частей к технике: Hyundai R170W-7. TRAVEL MOTOR (1/2, -#0196)
13
1-1-1
1-1-1
1-1-2
1-1-2
1-1-3
1-1-3
1-1-4
1-1-4
1-1-41
1-1-41
1-1-42
1-1-42
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-7
1-1-7
1-1-11
1-1-11
1-1-12
1-1-12
1-2
1-2
1-3
1-3
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-7
1-7
1-10
1-10
1-11
1-11
5
5
8
8
9
9
10
10
11
11
12
12
17
17
17
17
18
18
18
18
XJDD-00683
XJDD-00683
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 13 | ZGAR-00332 | Screw-Locking | |
| 31N5-43000 | 31N5-43000 | Travel Motor | |
| 1 | ZGAR-00399 | Rotary Group | |
| 1-1 | ZGAR-00406 | Rotary-Hyd Section | |
| 1-1-1 | ZGAR-00421 | Cylinder | |
| 1-1-2 | ZGAR-00422 | Control Lens | |
| 1-1-3 | ZGAR-00423 | Center Pin | |
| 1-1-4 | ZGAR-00424 | Piston With P/Rings | |
| 1-1-41 | ZGAR-00434 | Piston | |
| 1-1-42 | ZGAR-00435 | Sealing Ring-Steel | |
| 1-1-6 | ZGAR-00425 | Adjust Shim | |
| 1-1-6 | ZGAR-00426 | Adjust Shim | |
| 1-1-6 | ZGAR-00427 | Adjust Shim | |
| 1-1-6 | ZGAR-00428 | Adjust Shim | |
| 1-1-6 | ZGAR-00429 | Adjust Shim | |
| 1-1-6 | ZGAR-00430 | Adjust Shim | |
| 1-1-7 | ZGAR-00431 | Spring-Pressure | |
| 1-1-11 | ZGAR-00432 | Retaining Plate | |
| 1-1-12 | ZGAR-00433 | Screw | |
| 1-2 | ZGAR-00407 | Shaft-Drive | |
| 1-3 | ZGAR-00408 | Shim | |
| 1-6 | ZGAR-00409 | Plate-Back Up | |
| 1-6 | ZGAR-00410 | Plate-Back Up | |
| 1-6 | ZGAR-00411 | Plate-Back Up | |
| 1-6 | ZGAR-00412 | Plate-Back Up | |
| 1-6 | ZGAR-00413 | Plate-Back Up | |
| 1-6 | ZGAR-00414 | Plate-Back Up | |
| 1-6 | ZGAR-00415 | Plate-Back Up | |
| 1-6 | ZGAR-00416 | Plate-Back Up | |
| 1-6 | ZGAR-00417 | Plate-Back Up | |
| 1-7 | ZGAR-00418 | Ring-Retaining | |
| 1-10 | ZGAR-00419 | Bearing-Roller | |
| 1-11 | ZGAR-00420 | Bearing-Roller | |
| 5 | ZGAR-00401 | Housing | |
| 8 | ZGAR-00332 | Screw-Locking | |
| 9 | ZGAR-00402 | Ring-Retaining | |
| 10 | XJDD-00212 | Seal Ring-Shaft | |
| 11 | XJDD-00213 | Plate-Back Up | |
| 12 | XJDD-00214 | O-Ring | |
| 17 | ZGAR-00280 | Pin-Threaded | |
| 18 | XJDD-00120 | Nut-Seal Lock | |
| Control | Control | Control | |
| XJDD-00683 | XJDD-00683 | Seal Kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
