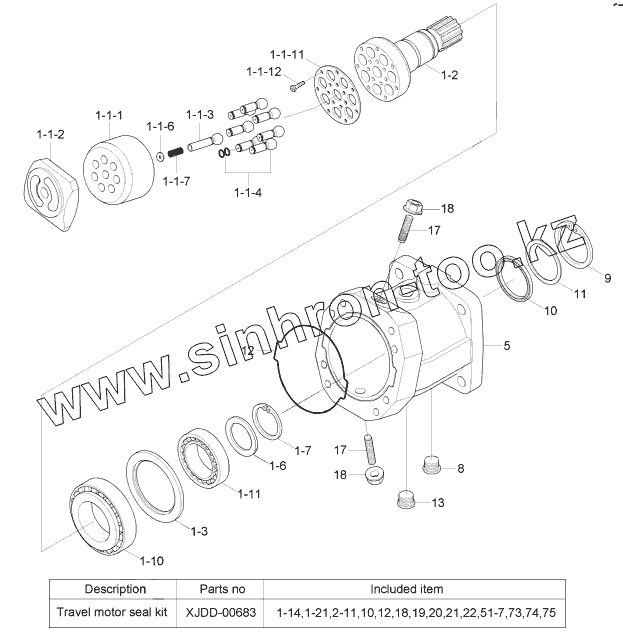

Каталог запасных частей к технике: Hyundai R170W-7. TRAVEL MOTOR (1/2, #0197-)
13
1-1-1
1-1-1
1-1-2
1-1-2
1-1-3
1-1-3
1-1-4
1-1-4
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-6
1-1-7
1-1-7
1-1-11
1-1-11
1-1-12
1-1-12
1-2
1-2
1-3
1-3
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-6
1-7
1-7
1-10
1-10
1-11
1-11
5
5
5
5
8
8
8
8
9
9
10
10
11
11
12
12
17
17
17
17
18
18
18
18
XJDD-00683
XJDD-00683
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 13 | XJDD-00210 | Screw-Locking | |
| 31N5-43001 | 31N5-43001 | Travel Motor | |
| 31N5-43002 | 31N5-43002 | TRAVEL MOTOR | |
| 1 | XJDD-00889 | ROTARY GROUP | |
| 1-1 | XJDD-00899 | ROTARY-HYD SECTION | |
| 1-1-1 | XJDD-00914 | CYLINDER | |
| 1-1-2 | XJDD-00915 | CONTROL LENS | |
| 1-1-3 | XJDD-00916 | PIN-CENTER | |
| 1-1-4 | XJDD-00917 | PISTON ASSY | |
| 1-1-6 | XJDD-00920 | SHIM-ADJUST | |
| 1-1-6 | XJDD-00921 | SHIM-ADJUST | |
| 1-1-6 | XJDD-00922 | SHIM-ADJUST | |
| 1-1-6 | XJDD-00923 | SHIM-ADJUST | |
| 1-1-6 | XJDD-00924 | SHIM-ADJUST | |
| 1-1-6 | XJDD-00925 | SHIM-ADJUST | |
| 1-1-7 | XJDD-00926 | SPRING-PRESSURE | |
| 1-1-11 | XJDD-00927 | PLATE-RETAINING | |
| 1-1-12 | XJDD-00928 | SCREW-PAN HEAD | |
| 1-2 | XJDD-00900 | SHAFT-DRIVE | |
| 1-3 | XJDD-00901 | SHIM | |
| 1-6 | XJDD-00903 | PLATE-BACK UP | |
| 1-6 | XJDD-00904 | PLATE-BACK UP | |
| 1-6 | XJDD-00905 | PLATE-BACK UP | |
| 1-6 | XJDD-00906 | PLATE-BACK UP | |
| 1-6 | XJDD-00907 | PLATE-BACK UP | |
| 1-6 | XJDD-00908 | PLATE-BACK UP | |
| 1-6 | XJDD-00909 | PLATE-BACK UP | |
| 1-6 | XJDD-00910 | PLATE-BACK UP | |
| 1-7 | XJDD-00911 | RING-RETAINING | |
| 1-10 | XJDD-00912 | BEARING-ROLLER | |
| 1-11 | XJDD-00913 | BEARING-ROLLER | |
| 5 | XJDD-00209 | Housing | |
| 5 | XJDD-00891 | HOUSING | |
| 8 | XJDD-00210 | Screw-Locking | |
| 8 | XJDD-00892 | SCREW-LOCKING | |
| 9 | XJDD-00893 | RING-RETAINING | |
| 10 | XJDD-00894 | SEAL RING-SHAFT | |
| 11 | XJDD-00895 | PLATE-BACK UP | |
| 12 | XJDD-00896 | O-RING | |
| 17 | XJDD-00897 | PIN-THREADED | |
| 18 | XJDD-00898 | NUT-SEAL LOCK | |
| ControlPart | ControlPart | Control Part | |
| XJDD-00683 | XJDD-00683 | Seal Kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
